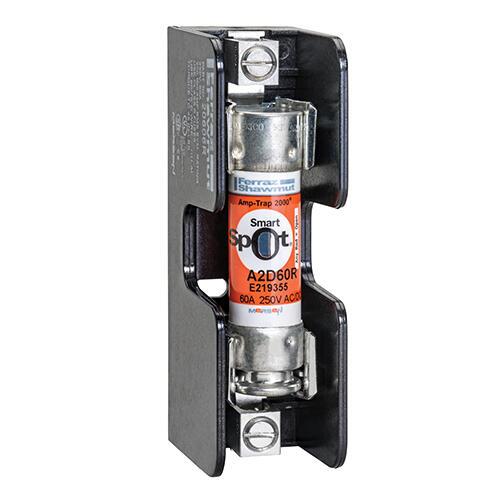

MERSEN FERRAZ 20656R Fuse Base, 250V, 60A Class R, 1 Pole, Tin Plated, Copper Box
Item: CH4QTVModel: 20656RCross Ref: 5LDF2
7 In Stock
Ships within 2 days via
5.00% off
€38.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 250V AC |
| Ac/dc | AC/DC |
| Amps | 31-60A , 60A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Connector Type | Box Lug (Cu) |
| Fits Fuse Type | Industrial |
| For Fuse Size | 3" x 13/16" |
| Frequency | 50/60 Hz |
| Fuse Block Design | Open |
| Fuse Block Style | Rejection |
| Fuse Class | Class R |
| Fuse Installation Method | Clip In |
| Fuse Ul Class | Class R |
| Height | 53.8 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 120.6 mm |
| Max. Fuse Rating | 60A |
| Mounting Style | Bolt Down |
| No. Of Poles | 1 |
| Product Datasheet | mersen-ferraz-20300.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 250V AC |
| Rated Voltage Dc Ul | 250V DC |
| Rohs Compliant | Yes |
| Short Circuit Amps Rating (sccr) | 200 kA |
| Spring Reinforced Clip | Yes |
| Torque | 5.084 N-m |
| Visual Indication | Non Indicating |
| Voltage | 250V AC/DC |
| Width | 37.1 mm |
| Wire | 14 AWG to 4 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 27.31 |
| Ship width (cm) | 12.4 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Height | No. Of Poles | Ac Voltage Rating | Body/insulating Material | Torque | Max. Fuse Rating | For Fuse Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20305R | 30A | 35.1 mm | Adder | 250V AC | Glass Filled Polycarbonate | 3.954 N-m | 30A | - | 10 | €248.82 | |
|
20306R | 30A | 35.1 mm | 1 | 250V AC | Glass Filled Polycarbonate | 3.954 N-m | 30A | 2" x 9/16" Dia. | 1 | €34.36 | |
 |
20307R | 30A | 35.1 mm | 2 | 250V AC | Glass Filled Polycarbonate | 3.954 N-m | 30A | 2" x 9/16" Dia. | 1 | €68.66 | |
 |
20308R | 30A | 35.1 mm | 3 | 250V AC | Glass Filled Polycarbonate | 3.954 N-m | 30A | 2" x 9/16" Dia. | 1 | €81.34 | |
|
20315R | 30A | 35.1 mm | Adder | 250V AC | Glass Filled Polycarbonate | 2.26 N-m | 30A | - | 10 | €171.74 | |
|
20316R | 30A | 35.1 mm | 1 | 250V AC | Glass Filled Polycarbonate | 2.26 N-m | 30A | - | 1 | €26.80 | |
|
20317R | 30A | 35.1 mm | 2 | 250V AC | Glass Filled Polycarbonate | 2.26 N-m | 30A | - | 1 | €35.53 |
