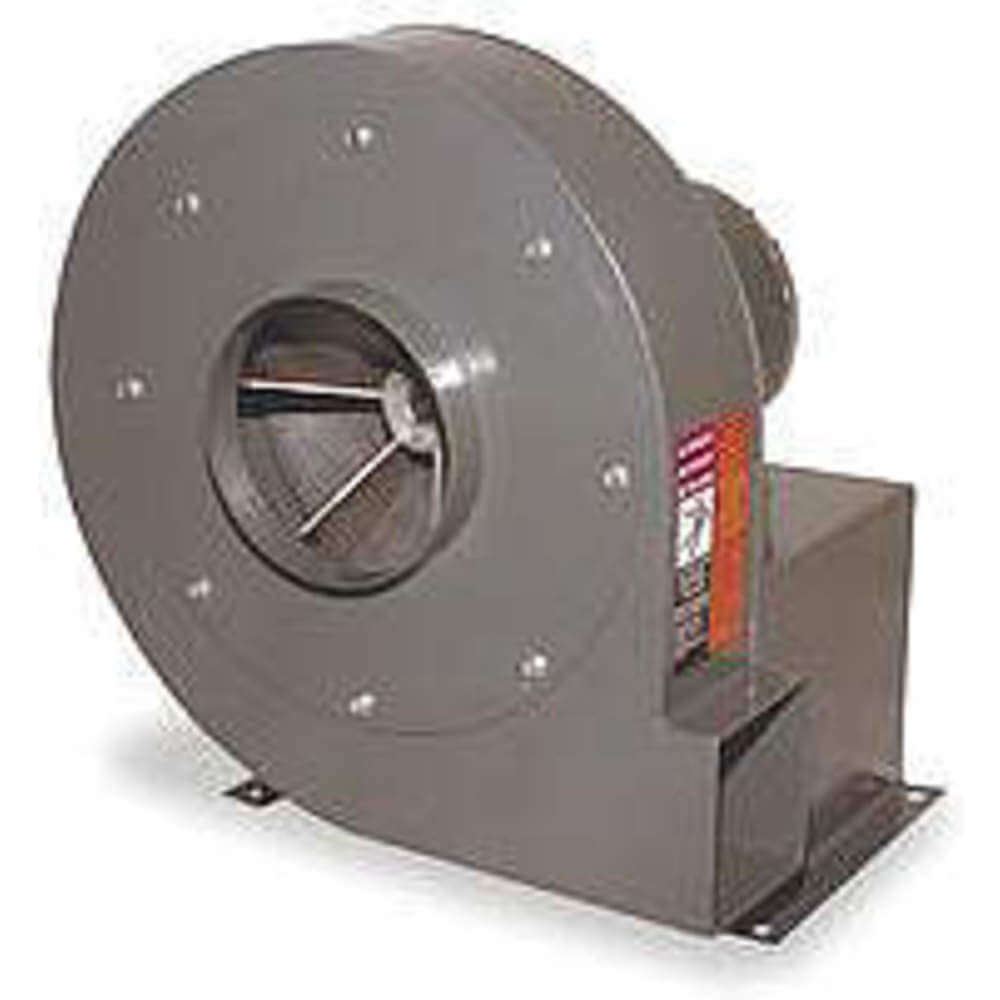

DAYTON 7E253 Blower 8 15/16in
Get it by Tuesday, Dec 23
10.00% off
€582.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | High Pressure Blower |
| Airflow @ 0.000 In Sp | Not Applicable |
| Airflow @ 0.100 In Sp | Not Applicable |
| Airflow @ 0.125 In Sp | Not Applicable |
| Airflow @ 0.250 In Sp | Not Applicable |
| Airflow @ 0.375 In Sp | Not Applicable |
| Airflow @ 0.400 In Sp | Not Applicable |
| Airflow @ 0.500 In Sp | Not Applicable |
| Airflow @ 0.750 In Sp | Not Applicable |
| Airflow @ 1.000 In Sp | 437 CFM |
| Airflow @ 10.00 In Sp | Not Applicable |
| Airflow @ 11.00 In Sp | Not Applicable |
| Airflow @ 12.00 In Sp | Not Applicable |
| Airflow @ 13.00 In Sp | Not Applicable |
| Airflow @ 2.000 In Sp | 391 CFM |
| Airflow @ 3.000 In Sp | 336 CFM |
| Airflow @ 4.000 In Sp | 270 CFM |
| Airflow @ 5.000 In Sp | 173 CFM |
| Airflow @ 6.000 In Sp | Not Applicable |
| Airflow @ 7.000 In Sp | Not Applicable |
| Airflow @ 8.000 In Sp | Not Applicable |
| Airflow @ 9.000 In Sp | Not Applicable |
| Amps | 10.4/5.3-5.2A |
| Assembled/unassembled | Unassembled |
| Assembly | Unassembled |
| Bearing Type | Ball In Motor |
| Blower Rpm | 3450 RPM |
| Cfm @ 3.000-in. Sp | 336 CFM |
| Cfm @ 3.000-in. Sp | 336 |
| Cfm @ 4.000-in. Sp | 270 CFM |
| Cfm @ 5.000-in. Sp | 173 |
| Color | Gray |
| Dba @ 5 Ft. | 77 dBA |
| Depth | 12 3/4" |
| Dimension A | 12 1/8" |
| Dimension B | 8" |
| Dimension C | 3 1/2" |
| Dimension D | 3 1/2" |
| Dimension E | 5 5/8" |
| Dimension F | 7" |
| Dimension G | 1/2" |
| Dimension H | 6 3/8" |
| Dimension J | 5 3/4" |
| Dimension K | 6 7/8" |
| Dimension L | 6 3/4" |
| Dimension O | 12 3/4" |
| Dimension P | 5" |
| Dimension R | 7 1/2" |
| Dimension S | 6 3/8" |
| Discharge Height | 3 1/2" |
| Discharge Position | Bottom Horizontal |
| Discharge Width | 3 1/2" |
| Drive Package With Motor Included? | Yes |
| Drive Type | Direct Drive |
| Features | Paddle Type, Self Cleaning Are Precision Balanced For Top Performance, Powerful Blower Supplies High Pressure Air For Efficient Cooling And Conveying |
| Flange Size | Not Applicable |
| Flange Type | Non Flanged |
| For Ventilation Type | Exhaust |
| Full Load Amps | 9.8/4.9A |
| Height | 17" |
| Housing Color | Gray |
| Housing Depth | 12 3/4" |
| Housing Finish | Polyester Epoxy |
| Housing Height | 17" |
| Housing Material | Steel |
| Housing Material Finish | Gray Polyester Epoxy |
| Housing Material Gauge | 16 ga. |
| Housing Width | 13 5/8" |
| Hz | 60 Hz |
| Includes Drive Package | Yes |
| Includes Motor | Yes |
| Inlet Dia. | 5" |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 180°F |
| Maximum Fan Speed | 3450 RPM |
| Maximum Static Pressure | 5 in. wc |
| Motor Duty Class | Continuous |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56 |
| Motor Frame Designation | 56 |
| Motor Hp | 3/4 hp |
| Motor Insulation Class | Class B |
| Motor Speed | 3450 RPM |
| Nameplate Voltage | 115/208-230V AC |
| No. Of Inlets | 1 |
| Number Of Discharge Positions | 8 |
| Number Of Speeds | 1 |
| Outlet Dia. | Not Applicable |
| Outlet Height | 3 1/2" |
| Outlet Shape | Square |
| Outlet Width | 3 1/2" |
| Overall Depth | 12 3/4" |
| Overall Height | 17" |
| Overall Width | 13 5/8" |
| Phase | 1 |
| Rotation | CW |
| Shaft Dia. | 5/8" |
| Shaft Diameter | 5/8" |
| Sound Level | 77 dBA |
| Type | With Motor |
| Voltage | 115/230V |
| Wheel Bore | 5/8" |
| Wheel Bore Dia. | 5/8" |
| Wheel Dia. | 9" |
| Wheel Material | Aluminum |
| Wheel Type | Radial |
| Wheel Width | 2 3/4" |
| Width | 13 5/8" |
Shipping Info:
| Ship weight (kg) | 21.89 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 34.61 |
| HS code | 8414599080 |
| Country of Origin | US |
Product Variants
| Product | Model | Inlet Dia. | Outlet Width | Rotation | Depth | Outlet Height | Height | Phase | Motor Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2C862 | 8" | 5 3/8" | CW/CCW | 14" | 8 1/4" | 15" | - | - | €406.29 | |
|
2C863 | 9" | 6 1/2" | CW | 16" | 10 3/4" | 16" | - | - | €388.48 | |
|
2C864 | 10" | 8" | CW | 17" | 11 3/4" | 19" | - | - | €604.80 | |
|
4C121 | 14 1/2" | 10 3/4" | CW | 23" | 14 5/8" | 28" | - | - | €850.10 | |
|
4C217 | 13 1/4" | 9 5/8" | CW | 22" | 13 1/4" | 27" | - | - | €724.34 | |
 |
7C487 | 8" | 5 3/4" | CW | 18 7/8" | 7 1/8" | 23 1/8" | 3 | 5 hp | €1,815.06 | |
 |
7C552 | 8" | 5 3/8" | CW | 14" | 8 1/4" | 15" | 1 | 1/6 hp | €580.64 |
