MCKINNEY TA2314 4 1/2 X 4 1/2 32D Butt Hinge, 8 Holes per Leaf, 4 1/2 Inch Door Leaf Height, 4 1/2 Inch Door Leaf Width
Item: CT2MLWModel: TA2314 4 1/2 X 4 1/2 32DCross Ref: 35MM99
7 In Stock
Ships within 2 days via
10.00% off
€79.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Butt Hinge |
| Bearing Type | Oil Impregnated |
| Corner Type | Square |
| Corners | Square |
| Door Leaf Height | 4 1/2" |
| Door Leaf Thickness | 0.134" |
| Door Leaf Width | 4 1/2" |
| Features | For Flush Door/Frame/Wall Applications |
| Finish | Satin Stainless Steel |
| Frame Leaf Height | 4 1/2" |
| Frame Leaf Thickness | 0.134" |
| Grade | 304 |
| Hardware | Included |
| Holes | With |
| Holes Per Leaf | 8 |
| Includes Hardware | Hardware Included |
| Ligature Resistant | No |
| Load Capacity | 600 lbs. |
| Material | Brass, Stainless Steel |
| Material Grade | Grade 304 |
| Mounting | Full Mortise |
| Mounting Style | Full Mortise |
| Number Of Holes Per Leaf | 4 |
| Orientation | Non Handed |
| Overall Height | 4 1/2" |
| Overall Width | 4 1/2" |
| Pin Diameter | 9/16" |
| Pin Material | Steel |
| Pin Type | Removable |
| Range Of Motion | 270° |
| Range Of Motion - Maximum | 270° |
| Removable Pin | Yes |
| Required Door Thickness | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Mounting | Load Capacity | Bearing Type | Frame Leaf Width | Holes Per Leaf | Material | Frame Leaf Thickness | Door Leaf Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3½x3 1/2 1414 26D | Screw On | 150 lbs. | Sleeve | 1 1/4" | 3 | Steel | - | 1 1/4" | 1 | €7.75 | |
 |
3½x3½ 1458 26D | Screw On | 150 lbs. | Sleeve | 1 1/4" | 3 | Steel | - | 1 1/4" | 1 | €8.61 | |
 |
3½x3½ 1458 3 | Screw On | 150 lbs. | Sleeve | 1 1/4" | 3 | Steel | - | 1 1/4" | 1 | €11.23 | |
 |
3½x3½ 1400 26D | Screw On | 150 lbs. | Sleeve | 1 1/4" | 3 | Steel | - | 1 1/4" | 1 | €6.73 | |
 |

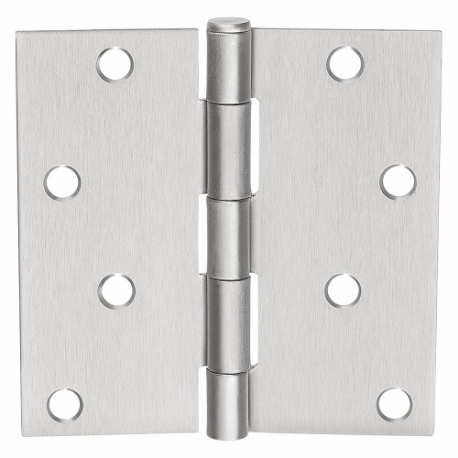

4x4 1400 26D | Screw On | 150 lbs. | Sleeve | 1 1/2" | 4 | Steel | - | 1 1/2" | 1 | €7.61 | |
 |
4 1/2X4 1/2 MP79 26D | Full Mortise | 250 lbs. | Plain | 1 15/16" | 4 | Steel | 0.134" | 4 1/2" | 1 | €16.92 | |
 |
4 1/2X4 1/2 MPS60 26D | Full Mortise | 250 lbs. | Plain | 1 7/8" | 4 | Steel | 0.134" | 4 1/2" | 1 | €29.97 |
