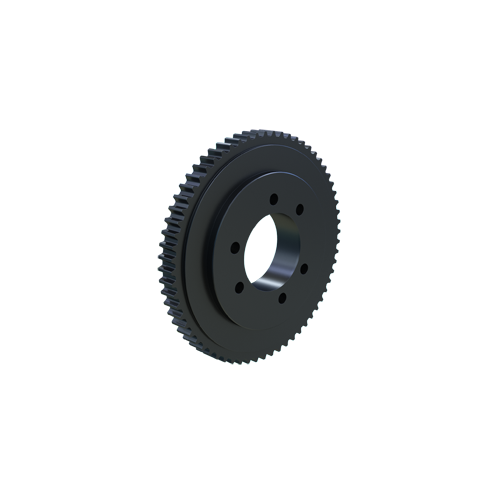

MARTIN SPROCKET W6414M20-E Sprocket, E Bushing, 8.750 Inch Max Bore, 64 Teeth, 11.229 Inch Pitch Dia., Cast Iron
11.229"
Get it by Thursday, Aug 20
€854.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Bore Dia. | 7/8" to 3 1/2" |
| Bore Type | QD Bushed |
| Bushing Type | E |
| Face Width | 1.22" |
| Flange Dia. | 11 3/4" |
| Length | 2 5/8" |
| Material | Cast Iron |
| No. Of Grooves | 64 |
| No. Of Teeth | 64 |
| Outside Dia. | 11.121" |
| Pitch | 0.55118" |
| Pitch Dia. | 11.229" |
| Suitable For Use With | Hawk PD, Panter, QT Power Chain Belts |
| Type | Solid Type CF-1 |
Shipping Info:
| Ship weight (kg) | 12.21 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Pitch Dia. | No. Of Teeth | Pitch | Bore Dia. | Face Width | No. Of Grooves | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
W3014M20-SK | Steel | 5.263" | 30 | 14 mm | 1/2" to 2 5/8" | 1.22" | 30 | High hp Bushed | €353.58 | |
 |
W3014M42-SK | Steel | 5.263" | 30 | 14 mm | 1/2" to 2 5/8" | 2.087" | 30 | QD Bushed | €444.29 | |
|
W4014M42-SF | Cast Iron | 7.018" | 40 | 0.55118" | 1/2" to 2 15/16" | 2.087" | 40 | QD Bushed | €643.85 | |
 |
W4814M42-E | Cast Iron | 8.421" | 48 | 14 mm | 7/8" to 8 3/4" | 2.087" | 48 | High hp Bushed | €676.44 | |
|
W6014M42-E | Cast Iron | 10.527" | 60 | 0.55118" | 7/8" to 3 1/2" | 2.087" | 60 | QD Bushed | €932.72 | |
|
W4414M42-E | Cast Iron | 7 18/25" | 44 | 0.55118" | 7/8" to 3 1/2" | 2.087" | 44 | QD Bushed | €652.91 | |
 |
W6014M65-F | Cast Iron | 10.527" | 60 | 0.55118" | 1" to 4" | 3.032" | 60 | QD Bushed | €1,189.28 |
