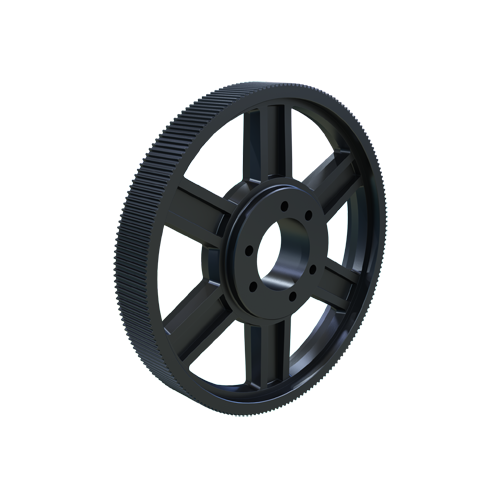

MARTIN SPROCKET W1928M60-F Sprocket, F Bushing, 4 Inch Max Bore, 192 Teeth, 19.249 Inch Pitch Dia., Cast Iron
Get it by Tuesday, Sep 1
€1,702.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Bore Dia. | 1" to 4" |
| Bore Type | QD Bushed |
| Bushing Type | F |
| Face Width | 2.756" |
| Length | 3 5/8" |
| Material | Cast Iron |
| No. Of Grooves | 192 |
| No. Of Teeth | 192 |
| Outside Dia. | 19.181" |
| Pitch | 0.31496" |
| Pitch Dia. | 19.249" |
| Suitable For Use With | Hawk PD, Panter, QT Power Chain Belts |
| Type | Arms Type C-3 |
Shipping Info:
| Ship weight (kg) | 36.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Pitch Dia. | No. Of Teeth | Pitch | Type | Bore Dia. | Face Width | No. Of Grooves | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
W1128M35-SF | Cast Iron | 11.229" | 112 | 8 mm | Spoked Type A-3 | 0.5" to 2.938" | 1.73" | 112 | €870.71 | |
 |
W1448M60-F | Cast Iron | 14.447" | 144 | 0.31496" | Arms Type C-3 | 1" to 4" | 2.756" | 144 | €1,609.14 | |
|
W1928M35-E | Cast Iron | 19.249" | 192 | 0.31496" | Arms Type C-3 | 7/8" to 3 1/2" | 1.73" | 192 | €1,500.08 | |
 |
W248M12-JA | Steel | 2.406" | 24 | 8 mm | Reverse Mount Solid Type EF-1 | 1/2" to 1 1/4" | 0.827" | 24 | €181.49 | |
|
W288M35-H | Steel | 2.807" | 28 | 8 mm | Reverse Mount Solid Type EF-1 | 1/2" to 1 1/2" | 1.73" | 28 | €344.54 | |
 |
W328M35-H | Steel | 3.208" | 32 | 8 mm | Reverse Mount Solid Type AF-1 | 1/2" to 1 1/2" | 1.73" | 32 | €362.93 | |
 |
W368M12-SH | Steel | 3.609" | 36 | 8 mm | Solid Type DF-1 | 1/2" to 1 11/16" | 0.827" | 36 | €217.63 |
