MARTIN SPROCKET High HP HTS Series Sprockets, 8MM Belt Pitch
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X| Style | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Bore Type | Face Width | Type | Pitch | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | W368M22-SH | 0.5" to 1.688" | 3.609" | 3.556" | High hp Bushed | 0.97" | Solid Type DF-1 | 8 mm | SH | €271.87 | |
| B | W1128M35-SF | 0.5" to 2.938" | 11.229" | 11.166" | High hp Bushed | 1.73" | Spoked Type A-3 | 8 mm | SF | €870.71 | |
| C | W648M60-SF | 0.5" to 2.938" | 6.416" | 6.359" | High hp Bushed | 2.756" | Solid Type AF-1 | 8 mm | SF | €743.64 | |
| D | W1448M60-F | 1" to 4" | 14.447" | 14.3735" | QD Bushed | 2.756" | Arms Type C-3 | 0.31496" | F | €1,609.14 | |
| B | W1128M60-F | 1" to 4" | 11.229" | 11.169" | QD Bushed | 2.756" | Arms Type C-3 | 0.31496" | F | €1,150.24 | |
| E | W1928M60-F | 1" to 4" | 19.249" | 19.181" | QD Bushed | 2.756" | Arms Type C-3 | 0.31496" | F | €1,702.40 | |
| F | W288M35-H | 1/2" to 1 1/2" | 2.807" | 2.755" | Split Taper Bushed | 1.73" | Reverse Mount Solid Type EF-1 | 8 mm | H | €344.54 | |
| G | W328M35-H | 1/2" to 1 1/2" | 3.208" | 3.155" | Split Taper Bushed | 1.73" | Reverse Mount Solid Type AF-1 | 8 mm | H | €362.93 | |
| F | W328M22-H | 1/2" to 1 1/2" | 3.208" | 3.155" | Split Taper Bushed | 1.22" | Reverse Mount Solid Type CF-1 | 8 mm | H | €290.29 | |
| F | W308M12-H | 1/2" to 1 1/2" | 3.008" | 2.955" | Split Taper Bushed | 0.827" | Reverse Mount Solid Type EF-1 | 8 mm | H | €199.55 | |
| G | W328M12-H | 1/2" to 1 1/2" | 3.208" | 3.155" | Split Taper Bushed | 0.827" | Reverse Mount Solid Type EF-1 | 8 mm | H | €208.59 | |
| F | W308M35-H | 1/2" to 1 1/2" | 3.008" | 2.955" | Split Taper Bushed | 1.73" | Reverse Mount Solid Type EF-1 | 8 mm | H | €353.58 | |
| G | W288M12-H | 1/2" to 1 1/2" | 2.807" | 2.755" | Split Taper Bushed | 0.827" | Reverse Mount Solid Type EF-1 | 8 mm | H | €190.51 | |
| H | W288M60-MPB | 1/2" to 1 1/2" | 2.807" | 2.755" | Minimum Plain | 2 3/4" | Solid Type MPBF-1 | 8 mm | - | €353.25 | |
| F | W248M12-JA | 1/2" to 1 1/4" | 2.406" | 2.352" | QD Bushed | 0.827" | Reverse Mount Solid Type EF-1 | 8 mm | JA | €181.49 | |
| I | W248M35-MPB | 1/2" to 1 1/4" | 2.406" | 2.354" | Minimum Plain | 1.732" | Solid Type MPBF-1 | 8 mm | - | €308.37 | |
| J | W648M22-SK | 1/2" to 1 1/4" | 6.416" | 2.352" | High hp Bushed | 1.22" | Solid Type DF-1 | 8 mm | SK | €544.08 | |
| K | W248M60-MPB | 1/2" to 1 1/4" | 2.406" | 2.354" | Minimum Plain | 2.506" | Solid Type MPBF-1 | 8 mm | - | €335.48 | |
| K | W368M60-MPB | 1/2" to 1 3/4" | 3.609" | 3.556" | Minimum Plain | 2.756" | Solid Type MPBF-1 | 8 mm | - | €435.27 | |
| K | W268M60-MPB | 1/2" to 1 3/8" | 2.607" | 2.554" | Minimum Plain | 2.756" | Solid Type MPBF-1 | 8 mm | - | €340.16 | |

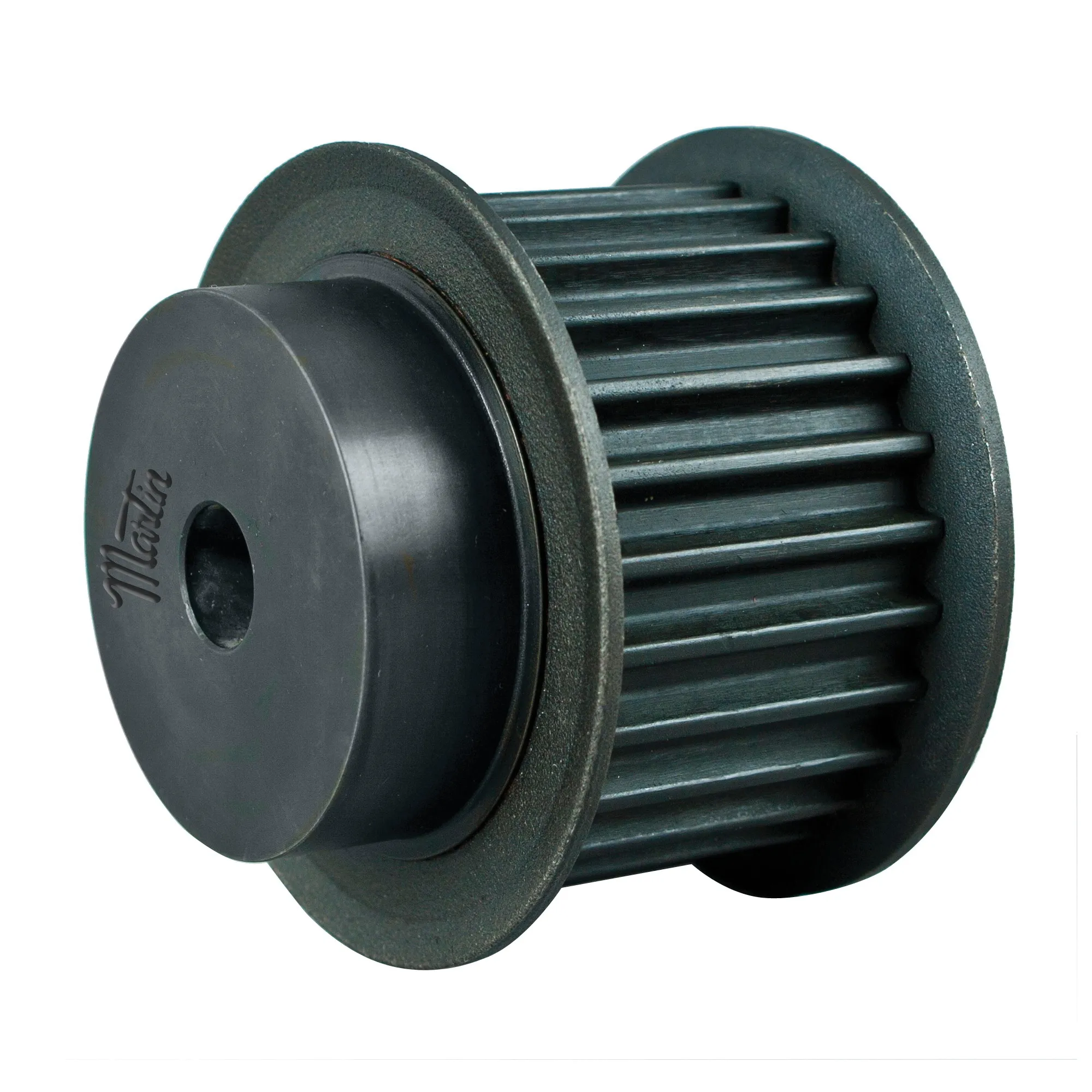

| L | W268M35-MPB | 1/2" to 1 3/8" | 2.607" | 2.554" | Minimum Plain | 1.732" | Solid Type MPBF-1 | 8 mm | - | €323.76 | |
| H | W228M60-MPB | 1/2" to 1 3/16" | 2.206" | 2.154" | Minimum Plain | 2.756" | Solid Type MPBF-1 | 8 mm | - | €301.36 | |
| I | W228M35-MPB | 1/2" to 1 3/16" | 2.206" | 2.154" | Minimum Plain | 1.732" | Solid Type MPBF-1 | 8 mm | - | €290.29 | |
| H | W228M22-MPB | 1/2" to 1 3/16" | 2.206" | 2.154" | Minimum Plain | 0.97" | Solid Type MPBF-1 | 8 mm | - | €271.87 | |
| H | W228M12-MPB | 1/2" to 1 3/16" | 2.206" | 2.154" | Minimum Plain | 0.827" | MPB | 8 mm | - | €217.63 | |
| K | W328M60-MPB | 1/2" to 1 5/8" | 3.208" | 3.155" | Minimum Plain | 2.756" | Solid Type MPBF-1 | 8 mm | - | €389.71 | |
| H | W308M60-MPB | 1/2" to 1 5/32" | 3.008" | 2.955" | Minimum Plain | 2.756" | Solid Type MPBF-1 | 8 mm | - | €381.03 | |
| A | W388M35-SH | 1/2" to 1 11/16" | 3.81" | 3.756" | QD Bushed | 1.73" | Solid Type AF-1 | 8 mm | SH | €371.65 | |
| A | W408M12-SH | 1/2" to 1 11/16" | 4.01" | 3.956" | High hp Bushed | 0.577" | Solid Type DF-1 | 8 mm | SH | €235.70 | |
| M | W408M22-SH | 1/2" to 1 11/16" | 4.01" | 3.956" | QD Bushed | 1.22" | Solid Type DF-1 | 8 mm | SH | €299.33 | |
| A | W388M22-SH | 1/2" to 1 11/16" | 3.81" | 3.756" | QD Bushed | 1.22" | Solid Type DF-1 | 8 mm | SH | €281.24 | |
| A | W388M12-SH | 1/2" to 1 11/16" | 3.81" | 3.756" | QD Bushed | 0.827" | Solid Type DF-1 | 8 mm | SH | €226.68 | |
| M | W408M35-SH | 1/2" to 1 11/16" | 4.01" | 3.956" | QD Bushed | 1.73" | Solid Type AF-1 | 8 mm | SH | €389.71 | |
| M | W368M35-SH | 1/2" to 1 11/16" | 3.609" | 3.556" | QD Bushed | 1.73" | Solid Type AF-1 | 8 mm | SH | €371.65 | |
| M | W348M22-SH | 1/2" to 1 11/16" | 3.409" | 3.355" | QD Bushed | 1.22" | Solid Type DF-1 | 8 mm | SH | €263.17 | |
| M | W348M35-SH | 1/2" to 1 11/16" | 3.409" | 3.355" | QD Bushed | 1.73" | Solid Type AF-1 | 8 mm | SH | €362.93 | |
| A | W368M12-SH | 1/2" to 1 11/16" | 3.609" | 3.556" | QD Bushed | 0.827" | Solid Type DF-1 | 8 mm | SH | €217.63 | |
| K | W348M60-MPB | 1/2" to 1 11/16" | 3.409" | 3.355" | Minimum Plain | 2.756" | Solid Type MPBF-1 | 8 mm | - | €417.19 | |
| M | W348M12-SH | 1/2" to 1 11/16" | 3.409" | 3.355" | QD Bushed | 0.827" | Solid Type DF-1 | 8 mm | SH | €213.27 | |
| K | W388M60-MPB | 1/2" to 1 15/16" | 3.81" | 3.756" | Minimum Plain | 2.756" | Solid Type MPBF-1 | 8 mm | - | €444.29 | |
| N | W488M60-2517 | 1/2" to 2 1/2" | 4.812" | 4.757" | Tapper Lock Bushed | 2.756" | Solid Type WF-1 | 8 mm | 2517 | €544.08 | |
| N | W448M60-2517 | 1/2" to 2 1/2" | 4.411" | 4.357" | Tapper Lock Bushed | 2.756" | Solid Type WF-1 | 8 mm | 2517 | €526.01 | |
| K | W408M60-MPB | 1/2" to 2 1/8" | 4.01" | 3.956" | Minimum Plain | 2.756" | Solid Type MPBF-1 | 8 mm | - | €462.40 | |
| O | W648M35-SK | 1/2" to 2 5/8" | 6.416" | 6.359" | High hp Bushed | 1.73" | Solid Type DF-1 | 8 mm | SK | €589.28 | |
| P | W728M22-SK | 1/2" to 2 5/8" | 7.218" | 7 4/25" | High hp Bushed | 1.22" | Solid Type DF-1 | 8 mm | SK | €553.11 | |
| Q | W808M22-SK | 1/2" to 2 5/8" | 8.02" | 7.964" | Bushed | 1.22" | Web Type DF-2 | 0.31496" | SK | €598.65 | |
| B | W1448M12-SK | 1/2" to 2 5/8" | 14.447" | 14.3735" | QD Bushed | 0.827" | Arms Type C-3 | 0.31496" | SK | €660.64 | |
| R | W908M22-SK | 1/2" to 2 5/8" | 9.023" | 8.966" | Bushed | 1.22" | Web Type D-2 | 0.31496" | SK | €528.62 | |
| S | W728M35-SK | 1/2" to 2 5/8" | 7.218" | 7 4/25" | High hp Bushed | 1.73" | Solid Type DF-1 | 8 mm | SK | €625.78 | |
| D | W1128M22-SK | 1/2" to 2 5/8" | 11.229" | 11.169" | QD Bushed | 1.22" | Arms Type D-3 | 0.31496" | SK | €660.64 | |
| T | W1128M12-SK | 1/2" to 2 5/8" | 11.229" | 11.169" | QD Bushed | 0.827" | Arms Type C-3 | 0.31496" | SK | €528.62 | |
| A | W568M35-SK | 1/2" to 2 5/8" | 5.614" | 5.558" | High hp Bushed | 1.482" | Solid Type DF-1 | 8 mm | SK | €498.88 | |
| U | W908M35-SF | 1/2" to 2 15/16" | 9.023" | 8.966" | Bushed | 1.73" | Web Type D-2 | 0.31496" | SF | €691.92 | |
| B | W1448M22-SF | 1/2" to 2 15/16" | 14.447" | 14.3735" | QD Bushed | 1.22" | Arms Type D-3 | 0.31496" | SF | €823.95 | |
| V | W808M35-SF | 1/2" to 2 15/16" | 8.02" | 7.964" | QD Bushed | 1.73" | Solid Type DF-1 | 0.31496" | SF | €575.13 | |
| W | W1928M12-SF | 1/2" to 2 15/16" | 19.249" | 19.181" | Bushed | 0.827" | Arms Type C-3 | 0.31496" | SF | €847.17 | |
| N | W388M60-2012 | 1/2" to 2" | 3.81" | 3.756" | Tapper Lock Bushed | 2.756" | Solid Type KF-1 | 8 mm | 2012 | €444.29 | |
| M | W488M35-SD | 1/2" to 2" | 4.812" | 4.757" | QD Bushed | 1.73" | Solid Type DF-1 | 8 mm | SD | €426.21 | |
| M | W568M22-SDS | 1/2" to 2" | 5.614" | 5.558" | QD Bushed | 1.22" | Solid Type DF-1 | 8 mm | SDS | €435.27 | |
| M | W448M22-SDS | 1/2" to 2" | 4.411" | 4.357" | QD Bushed | 1.22" | Solid Type DF-1 | 8 mm | SDS | €344.54 | |
| X | W368M60-2012 | 1/2" to 2" | 3.609" | 3.556" | Tapper Lock Bushed | 2.756" | Solid Type KF-1 | 8 mm | 2012 | €435.27 |
