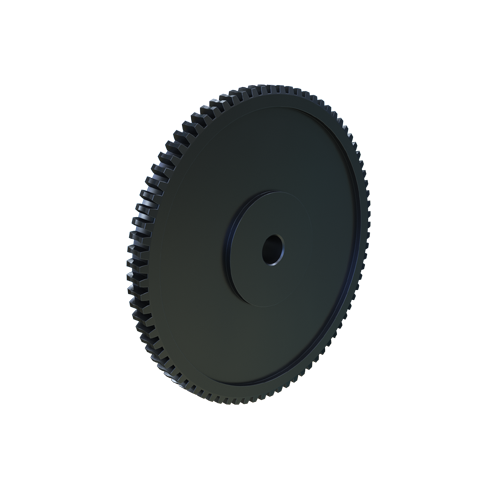

MARTIN SPROCKET W1280 Worm Gear, 12 Diametral Pitch, 6.666 Inch Pitch Dia., Reborable, Cast Iron
Item: AK2VWMModel: W1280
7 In Stock
Ships within 2 days via
€269.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Worm Gear |
| Bore Dia. | 0.625" to 1.126" |
| Diametral Pitch | 12 |
| Direction Of Rotation | Right Hand |
| Face Width | 1/2" |
| Gear Ratio | 80:1 |
| Hub Dia. | 2" |
| Hub Projection | 3/4" |
| Hub Type | B |
| Key Way Size | 1/8" x 1/16" |
| Material | Cast Iron |
| No. Of Teeth | 80 |
| No. Of Threads | 1 |
| Outside Dia. | 6.853" |
| Pitch Dia. | 6.666" |
| Pressure Angle | 14.5° |
| Type | Reborable Web |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 17.4 |
| Ship width (cm) | 17.4 |
| Country of Origin | US |
Product Variants
| Product | Model | No. Of Teeth | Pitch Dia. | Hub Dia. | Bore Dia. | Type | Hub Projection | Gear Ratio | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

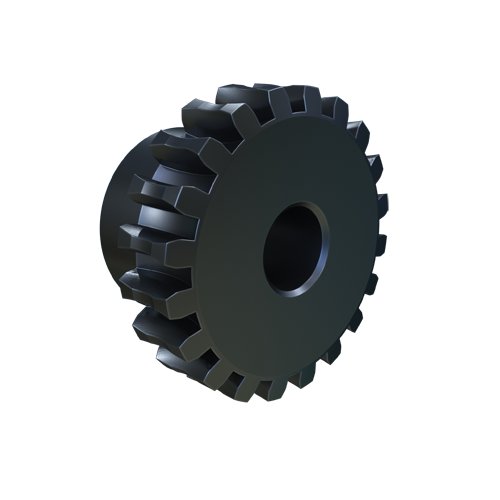

W1220 | 20 | 1.66" | 1 1/4" | 0.5" to 0.626" | Plain Reborable | 5/8" | - | Cast Iron | €145.55 | |
 |

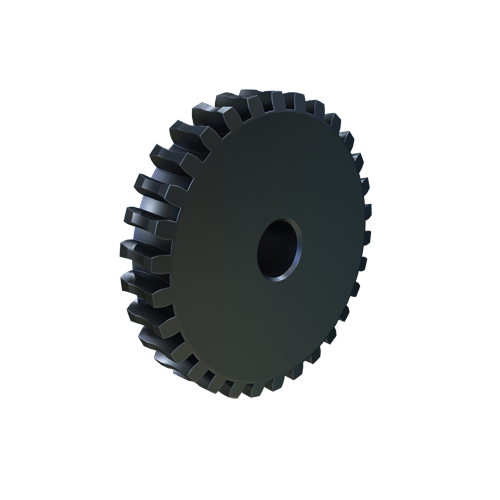

W1230 | 30 | 2 1/2" | 1 1/4" | 0.5" to 0.626" | Reborable Web | 5/8" | - | Cast Iron | €161.52 | |
 |

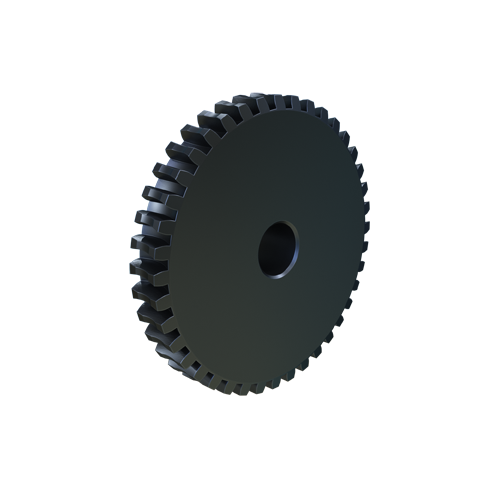

W1240 | 40 | - | - | - | - | - | - | Cast Iron | €184.96 | |
 |
W1250 | 50 | 4.166" | 1 1/2" | 0.625" to 0.814" | Reborable Web | 3/4" | - | Cast Iron | €212.18 | |
 |
W12100 | 100 | 8.333" | 2" | 0.75" to 1.126" | Reborable Web | 3/4" | 100:1 | Cast Iron | €349.89 | |
 |

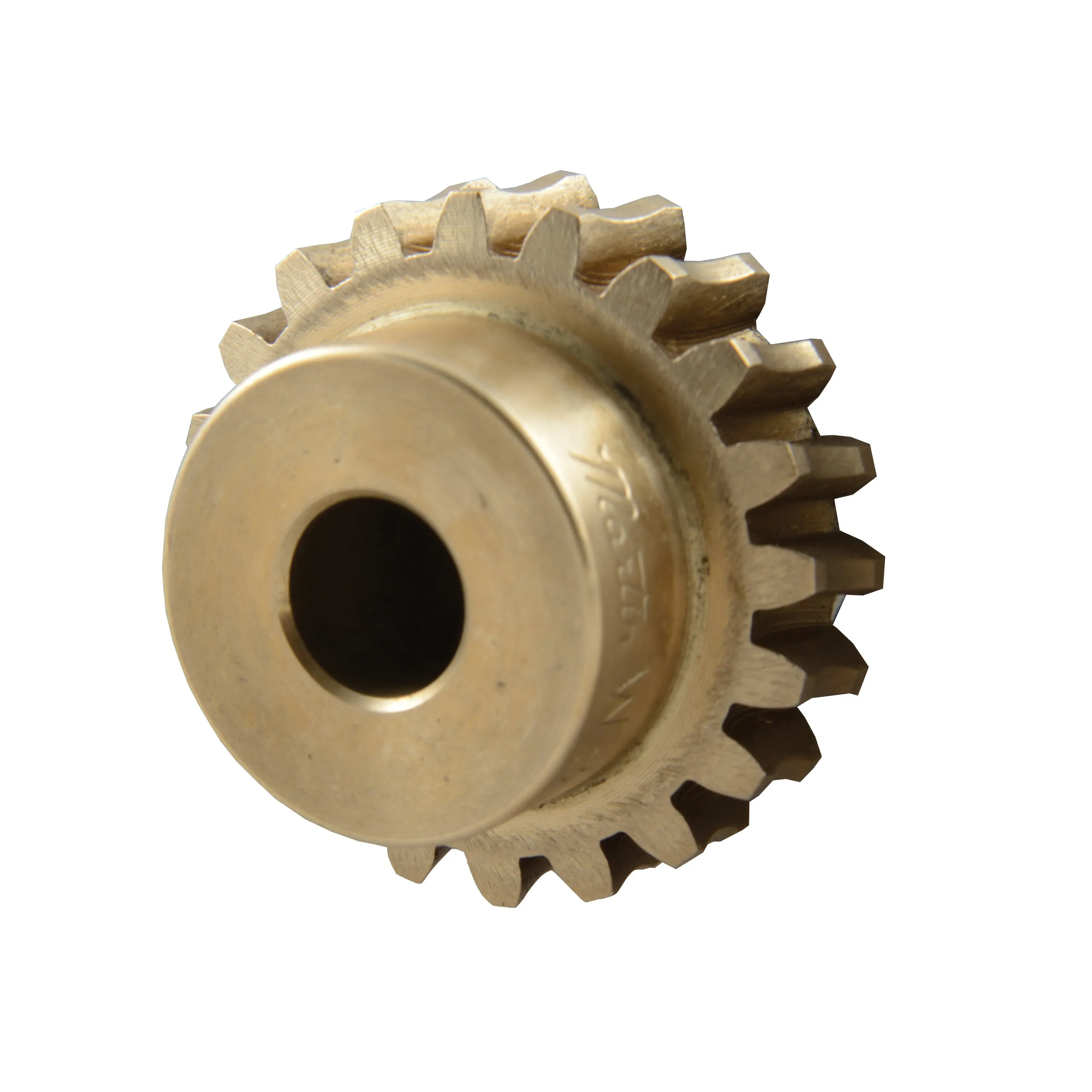

W1218 | 18 | 1 1/2" | 1 1/4" | 0.5" to 0.626" | Plain Reborable | 5/8" | 18:1 | Cast Iron | €142.08 | |
|
W1260 | 60 | 5" | 1 3/4" | 0.625" to 0.9385" | Reborable Web | 3/4" | 60:1 | Cast Iron | €231.24 |
