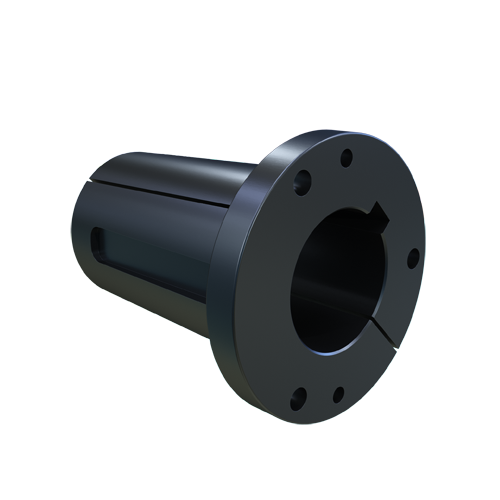

MARTIN SPROCKET U2 4 3/16 Bushing, 10.125 Inch Length Through Bore, 4.188 Inch Bore, Ductile Iron
4 3/16"
Get it by Friday, Aug 28
€1,408.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bushing |
| Bolt Circle Dia. | 7" |
| Bore Dia. | 4 3/16" |
| Cap Screw Size | 5/8"-11 x 2 3/4" |
| Flange Dia. | 8 3/8" |
| Flange Thickness | 1 1/16" |
| Hub Dia. | 8 1/2" |
| Key Way Size | 1" x 1/2" |
| Large End Barrel Dia. | 6" |
| Length | 10 3/25" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 3 |
| Set Screw Size | 3/8"-16 x 3/8" |
| Small End Barrel Dia. | 5.461" |
| Suitable For Use With | MST Sprockets, HU2 Weld On Hub |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 16.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Price | |
|---|---|---|---|---|
 |
U2 2 3/4 | Ductile Iron | €1,408.36 | |
 |
U2 2 15/16 | Ductile Iron | €1,408.36 | |
 |
U2 3 7/16 | Ductile Iron | €1,408.36 | |
 |
U2 3 3/4 | Ductile Iron | €1,408.36 | |
 |
U2 3 15/16 | Ductile Iron | €1,408.36 | |
 |
U2 4 7/16 | Ductile Iron | €1,408.36 | |
 |
U2 4 3/4 | Ductile Iron | €1,408.36 |
