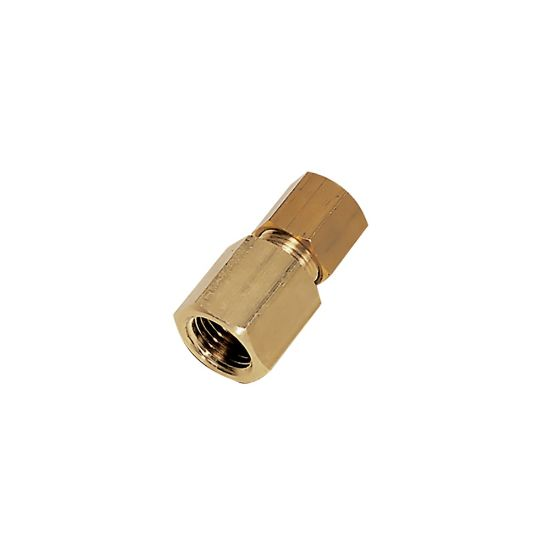

PARKER 0114 Series Brass Stud Fittings, Female BSPP Thread

Filter

Style	Model	Hex Size	Max. Operating Pressure	Fitting Side B Tube Outer Diameter	Overall Length	Thread Size A	Fitting Side A Pipe Size	Max. Operating Temp.	Min. Operating Temp.	Price
A	0114 04 10	10 mm, 14 mm	3335 psi	4 mm	1 1/32"	1/8"	1/8"	100°C	-40°C	€18.06
A	0114 04 13	10 mm, 17 mm	3335 psi	4 mm	1 3/16"	1/4"	1/4"	100°C	-40°C	€21.18
A	0114 05 10	12 mm, 14 mm	2175 psi	5 mm	1 1/8"	1/8"	1/8"	100°C	-40°C	€15.18
A	0114 06 13	13 mm, 17 mm	2175 psi	6 mm	1 9/32"	1/4"	1/4"	100°C	-40°C	€20.60
B	0114 06 17	13 mm, 22 mm	2175 psi	6 mm	1 9/32"	3/8"	3/8"	100°C	-40°C	€21.12
A	0114 08 13	14 mm, 17 mm	1450 psi	8 mm	1 5/16"	1/4"	1/4"	100°C	-40°C	€19.90
A	0114 08 17	14 mm, 22 mm	1450 psi	8 mm	1 11/32"	3/8"	-	100°C	-40°C	€21.78
A	0114 10 13	17 mm, 19 mm	1067 psi	10 mm	1 15/32"	-	1/4"	100°C	-40°C	€42.86
A	0114 10 17	19 mm, 22 mm	1067 psi	10 mm	1 15/32"	3/8"	3/8"	100°C	-40°C	€39.00
A	0114 10 21	19 mm, 27 mm	1067 psi	10 mm	1 21/32"	1/2"	1/2"	100°C	-40°C	€54.74
A	0114 12 17	22 mm	797 psi	12 mm	1 15/32"	3/8"	3/8"	100°C	-40°C	€34.65
C	0114 14 17	22 mm, 24 mm	652 psi	14 mm	1 1/2"	3/8"	3/8"	100°C	-40°C	€38.37
A	0114 12 21	22 mm, 27 mm	797 psi	12 mm	1 21/32"	1/2"	1/2"	100°C	-40°C	€56.95
C	0114 14 21	24 mm, 27 mm	652 psi	14 mm	1 11/16"	1/2"	1/2"	100°C	-40°C	€31.44
A	0114 16 21	27 mm	580 psi	16 mm	1 3/4"	1/2"	1/2"	100°C	-40°C	€54.88
C	0114 18 21	27 mm, 30 mm	536 psi	18 mm	1 25/32"	1/2"	1/2"	100°C	-40°C	€38.75
C	0114 20 21	30 mm, 32 mm	507 psi	20 mm	1 3/4"	1/2"	-	100°C	-40°C	€82.27
C	0114 18 27	30 mm, 32 mm	536 psi	18 mm	1 13/16"	3/4"	3/4"	100°C	-40°C	€51.44
C	0114 20 27	32 mm	507 psi	20 mm	1 27/32"	3/4"	3/4"	100°C	-40°C	€86.93
