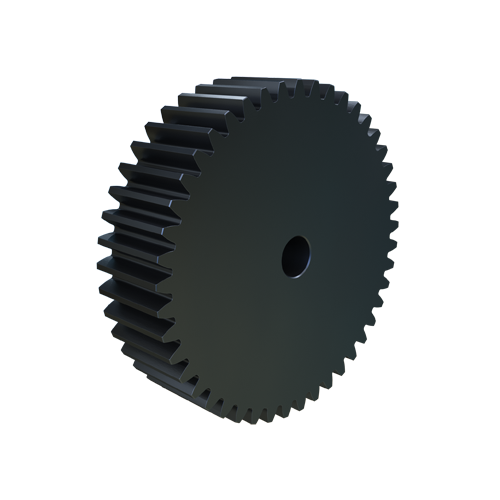

MARTIN SPROCKET TS545 Spur Gear, 5 Diametral Pitch, 9 Inch Pitch Dia., Reborable, Steel
9"
Get it by Wednesday, Aug 19
€870.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1 1/4" to 2 3/8" |
| Diametral Pitch | 5 |
| Face Width | 2 1/2" |
| Hub Dia. | 3 3/4" |
| Hub Projection | 1 1/4" |
| Hub Type | B |
| Length | 3 3/4" |
| Material | Steel |
| No. Of Teeth | 45 |
| Outside Dia. | 9 2/5" |
| Pitch Dia. | 9" |
| Pressure Angle | 20° |
| Type | Reboreable |
Shipping Info:
| Ship weight (kg) | 21.47 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 23.88 |
| Ship width (cm) | 23.88 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S511 | 2 1/5" | 14.5° | 11 | 1 3/4" | 1.7813" | 1 1/16" | Reboreable | 7/8" | €189.09 | |
|
S512 | 2 2/5" | 14.5° | 12 | 1 3/4" | 1.7813" | 1 1/16" | Reboreable | 7/8" | €189.09 | |
 |
S514 | 2 4/5" | 14.5° | 14 | 1 3/4" | 2.188" | 1.063" to 1.313" | External Tooth Reborable | 7/8" | €210.35 | |
 |
S515 | 3" | 14.5° | 15 | 1 3/4" | 2 3/8" | 1.063" to 1.438" | External Tooth Reborable | 7/8" | €227.83 | |
 |
S516 | 3 1/5" | 14.5° | 16 | 1 3/4" | 2.594" | 1.063" to 1.625" | External Tooth Reborable | 7/8" | €241.08 | |
 |
S518 | 3 3/5" | 14.5° | 18 | 1 3/4" | 3" | 1.063" to 1.875" | External Tooth Reborable | 7/8" | €274.16 | |
 |
S520 | 4" | 14.5° | 20 | 1 3/4" | 3 3/8" | 1.063" to 2.25" | External Tooth Reborable | 7/8" | €300.63 |
