MARTIN SPROCKET Reborable Type Steel Stock Spur Gears, 5 Diameter Pitch
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1| Style | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | S5100 | 0.3921" | 14.5° | 100 | 1 3/4" | 5 9/16" | 1 5/16" to 3 1/4" | Reboreable | 1 1/2" | €2,848.70 | |

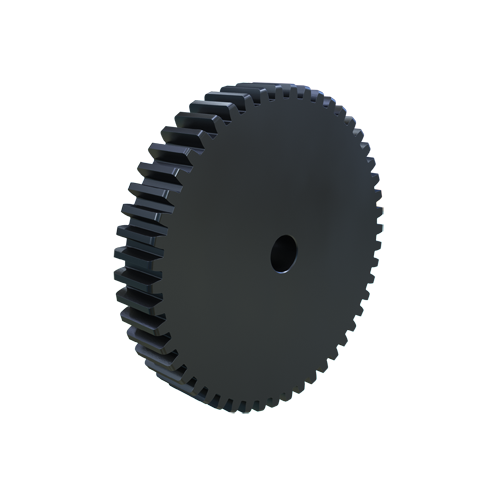

| B | S550 | 1" | 14.5° | 50 | 1 3/4" | 4 3/4" | 1 3/16" to 2 13/16" | Reboreable | 1 1/4" | €1,001.26 | |
| C | S511 | 2 1/5" | 14.5° | 11 | 1 3/4" | 1.7813" | 1 1/16" | Reboreable | 7/8" | €189.09 | |

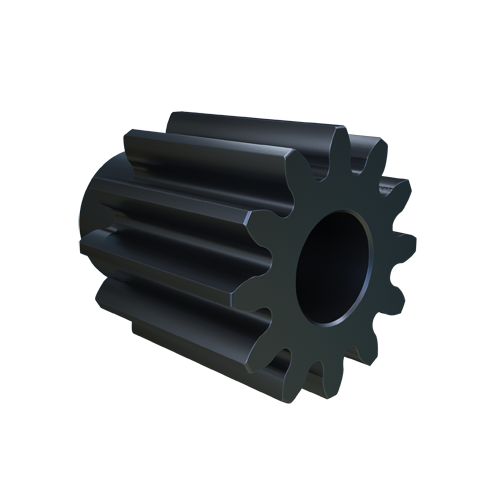

| D | TS512 | 2 2/5" | 20° | 12 | 2 1/2" | 1.781" | 1 1/8" | External Tooth Reborable | 7/8" | €187.11 | |
| C | S512 | 2 2/5" | 14.5° | 12 | 1 3/4" | 1.7813" | 1 1/16" | Reboreable | 7/8" | €189.09 | |
| C | S513 | 2 3/5" | 14.5° | 13 | 1 3/4" | 2" | 1 1/16" to 1 1/4" | Reboreable | 7/8" | €210.35 | |
| E | TS514 | 2 4/5" | 20° | 14 | 2 1/2" | 2.188" | 1.125" to 1.313" | External Tooth Reborable | 7/8" | €208.15 | |
| F | S514 | 2 4/5" | 14.5° | 14 | 1 3/4" | 2.188" | 1.063" to 1.313" | External Tooth Reborable | 7/8" | €210.35 | |
| G | S516 | 3 1/5" | 14.5° | 16 | 1 3/4" | 2.594" | 1.063" to 1.625" | External Tooth Reborable | 7/8" | €241.08 | |
| H | TS516 | 3 1/5" | 20° | 16 | 2 1/2" | 2.594" | 1 1/8" to 1 5/8" | External Tooth Reborable | 7/8" | €238.54 | |
| C | S517 | 3 2/5" | 14.5° | 17 | 1 3/4" | 2.8675" | 1 1/16" to 1 13/16" | Reboreable | 7/8" | €265.70 | |
| I | S518 | 3 3/5" | 14.5° | 18 | 1 3/4" | 3" | 1.063" to 1.875" | External Tooth Reborable | 7/8" | €274.16 | |
| J | TS518 | 3 3/5" | 20° | 18 | 2 1/2" | 3" | 1 1/8" to 1 7/8" | Reboreable | 7/8" | €271.31 | |
| K | S519 | 3 4/5" | 14.5° | 19 | 1 3/4" | 3 1/4" | 1.063" to 2.125" | External Tooth Reborable | 7/8" | €291.19 | |
| L | S515 | 3" | 14.5° | 15 | 1 3/4" | 2 3/8" | 1.063" to 1.438" | External Tooth Reborable | 7/8" | €227.83 | |
| M | TS515 | 3" | 20° | 15 | 2 1/2" | 2 3/8" | 1.125" to 1.438" | External Tooth Reborable | 7/8" | €225.45 | |
| N | S521 | 4 1/5" | 14.5° | 21 | 1 3/4" | 3 3/8" | 1.063" to 2.25" | External Tooth Reborable | 7/8" | €330.41 | |
| O | S522 | 4 2/5" | 14.5° | 22 | 1 3/4" | 3 3/8" | 1.063" to 2.25" | External Tooth Reborable | 7/8" | €354.07 | |
| C | S523 | 4 3/5" | 14.5° | 23 | 1 3/4" | 3 3/8" | 1 1/16" to 2 1/4" | Reboreable | 7/8" | €395.19 | |
| J | TS524 | 4 4/5" | 20° | 24 | 2 1/2" | 3 3/4" | 1 1/8" to 2 3/8" | Reboreable | 1 1/4" | €360.03 | |

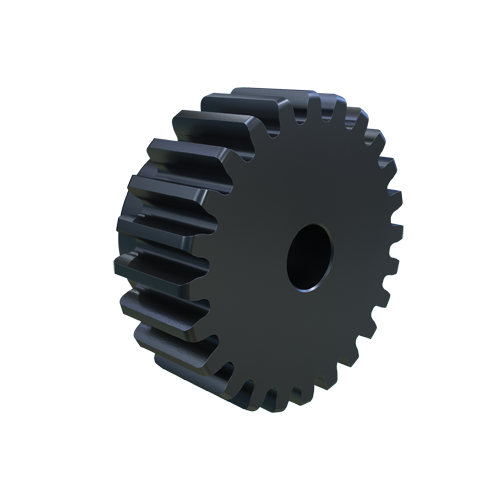

| P | S524 | 4 4/5" | 14.5° | 24 | 1 3/4" | 3 3/8" | 1.063" to 2.25" | External Tooth Reborable | 1 1/4" | €424.49 | |
| Q | TS520 | 4" | 20° | 20 | 2 1/2" | 3 3/8" | 1 1/8" to 2 1/4" | External Tooth Reborable | 7/8" | €297.48 | |
| R | S520 | 4" | 14.5° | 20 | 1 3/4" | 3 3/8" | 1.063" to 2.25" | External Tooth Reborable | 7/8" | €300.63 | |
| S | S5110 | 4.1428" | 14.5° | 110 | 1 3/4" | 5 9/16" | 1 5/16" to 3 1/4" | Reboreable | 1 1/2" | €3,237.50 | |
| C | S526 | 5 1/5" | 14.5° | 26 | 1 3/4" | 3 3/8" | 1 1/16" to 2 1/4" | Reboreable | 1 1/4" | €434.74 | |
| T | S528 | 5 3/5" | 14.5° | 28 | 1 3/4" | 3 3/8" | 1.063" to 2.25" | External Tooth Reborable | 1 1/4" | €465.13 | |
| J | TS528 | 5 3/5" | 20° | 28 | 2 1/2" | 3 3/4" | 1 1/8" to 2 3/8" | Reboreable | 1 1/4" | €460.25 | |
| C | S525 | 5" | 14.5° | 25 | 1 3/4" | 3 3/8" | 1 1/16" to 2 1/4" | Reboreable | 1 1/4" | €404.38 | |
| J | TS525 | 5" | 20° | 25 | 2 1/2" | 3 3/4" | 1 1/8" to 2 3/8" | Reboreable | 1 1/4" | €400.15 | |
| J | TS530 | 6" | 20° | 30 | 2 1/2" | 3 3/4" | 1 1/8" to 2 3/8" | Reboreable | 1 1/4" | €490.35 | |
| U | S530 | 6" | 14.5° | 30 | 1 3/4" | 3 3/8" | 1.063" to 2.25" | External Tooth Reborable | 1 1/4" | €495.52 | |
| J | TS535 | 7" | 20° | 35 | 2 1/2" | 3 3/4" | 1 1/8" to 2 3/8" | Reboreable | 1 1/4" | €540.44 | |
| V | S535 | 7" | 14.5° | 35 | 1 3/4" | 4 1/4" | 1.188" to 2.625" | External Tooth Reborable | 1 1/4" | €546.18 | |
| J | TS540 | 8" | 20° | 40 | 2 1/2" | 3 3/4" | 1 1/4" to 2 3/8" | Reboreable | 1 1/4" | €760.56 | |
| W | S540 | 8" | 14.5° | 40 | 1 3/4" | 4 1/4" | 1 3/16" to 2 5/8" | Reboreable | 1 1/4" | €768.63 | |
| W | S545 | 9" | 14.5° | 45 | 1 3/4" | 4 5/8" | 1 3/16" to 2 11/16" | Reboreable | 1 1/4" | €879.62 | |
| X | TS545 | 9" | 20° | 45 | 2 1/2" | 3 3/4" | 1 1/4" to 2 3/8" | Reboreable | 1 1/4" | €870.42 | |
| Y | TS550 | 10" | 20° | 50 | 2 1/2" | 4 5/8" | 1 1/4" to 2 13/16" | Reboreable | 1 1/4" | €990.78 | |
| Z | S555 | 11" | 14.5° | 55 | 1 3/4" | 4 3/4" | 1 3/16" to 2 13/16" | Reboreable | 1 1/4" | €1,166.82 | |
| J | TS560 | 12" | 20° | 60 | 2 1/2" | 4 5/8" | 1 1/4" to 2 13/16" | Reboreable | 1 1/4" | €1,337.35 | |
| A1 | S560 | 12" | 14.5° | 60 | 1 3/4" | 4 3/4" | 1 3/16" to 2 13/16" | Reboreable | 1 1/4" | €1,351.52 | |
| B1 | S570 | 14" | 14.5° | 70 | 1 3/4" | 5 1/16" | 1 3/16" to 3 1/8" | Reboreable | 1 1/4" | €1,565.38 | |
| C1 | TS570 | 14" | 20° | 70 | 2 1/2" | 5 1/16" | 1 3/16" to 3 1/8" | Reboreable | 1 1/4" | €1,548.98 | |
| B1 | S580 | 16" | 14.5° | 80 | 1 3/4" | 5 1/16" | 1 3/16" to 3 1/8" | Reboreable | 1 1/4" | €1,924.97 | |
| B1 | TS580 | 16" | 20° | 80 | 2 1/2" | 5 1/16" | 1 1/4" to 3 1/8" | Reboreable | 1 1/4" | €1,904.80 | |
| D1 | TS590 | 18" | 20° | 90 | 2 1/2" | 5 1/16" | 1 1/4" to 3 1/8" | Reboreable | 1 1/4" | €2,453.41 | |
| E1 | S590 | 18" | 14.5° | 90 | 1 3/4" | 5 1/16" | 1 3/16" to 3 1/8" | Reboreable | 1 1/4" | €2,479.36 | |
| B1 | TS5100 | 20" | 20° | 100 | 2 1/2" | 5 9/16" | 1 1/4" to 3 1/4" | Reboreable | 1 1/2" | €2,818.87 | |
| F1 | TS5110 | 22" | 20° | 110 | 2 1/2" | 5 9/16" | 1 1/4" to 3 1/4" | Reboreable | 1 1/2" | €3,203.60 | |
| B1 | TS5120 | 24" | 20° | 120 | 2 1/2" | 6 1/16" | 1 1/4" to 3 1/2" | Reboreable | 1 1/2" | €3,578.72 | |
| G1 | S5120 | 24" | 14.5° | 120 | 1 3/4" | 6 1/16" | 1 5/16" to 3 1/2" | Reboreable | 1 1/2" | €3,616.60 |
