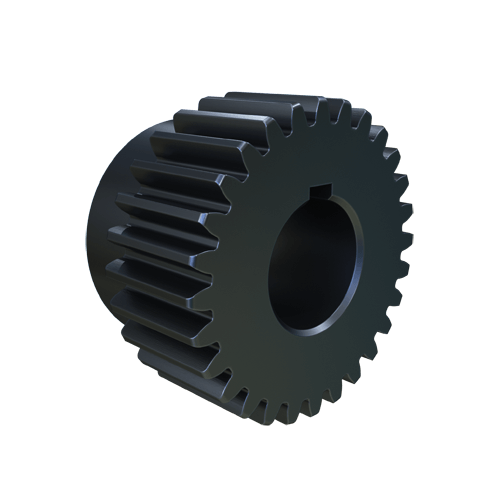

MARTIN SPROCKET TS1628BS 3/4 Spur Gear, 16 DP, 20 Deg., 28 Teeth, 1.750 Inch Pitch Dia., Steel
Item: AL4NBYModel: TS1628BS 3/4
7 In Stock
Ships within 2 days via
€120.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Diameter | 3/4" |
| Diametral Pitch | 16 |
| Face Width | 3/4" |
| Hub Diameter | 1 1/2" |
| Hub Projection | 1/2" |
| Keyway Size | 3/16" x 3/32" |
| Length | 1 1/4" |
| Material | Steel |
| No. Of Teeth | 28 |
| Number Of Teeth | 28 |
| Outside Dia. | 1 7/8" |
| Outside Diameter | 1 7/8" |
| Pressure Angle | 20° |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 4.78 |
| Ship width (cm) | 4.78 |
| Country of Origin | US |
Product Variants
| Product | Model | Pressure Angle | Face Width | Outside Dia. | Hub Projection | Number Of Teeth | Pitch Dia. | Type | Diametral Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S1620BS 1/2 | 14.5° | 1/2" | 1 3/8" | 0.438" | - | - | Bored to Size | 16 | €95.58 | |
 |
S1624BS 3/4 | 14.5° | 1/2" | 1 5/8" | 0.438" | 24 | - | Bored to Size | 16 | €106.13 | |
 |
S1611BS 3/8 | 14.5° | 1/2" | 7/8" | 0.438" | - | - | Bored to Size | 16 | €82.10 | |
 |
S1612BS 3/8 | 14.5° | 1/2" | 7/8" | 0.438" | 12 | - | Bored to Size | 16 | €82.10 | |
 |
S1614BS 3/8 | 14.5° | 1/2" | 1" | 0.438" | 14 | 7/8" | Bored to Size External Tooth | 16 | €83.24 | |
 |
S1615BS 1/2 | 14.5° | 1/2" | 1.062" | 0.438" | 15 | 0.937" | Bored to Size External Tooth | 16 | €87.09 | |
 |
S1616BS 1/2 | 14.5° | 1/2" | 1 1/8" | 0.438" | 16 | - | Bored to Size External Tooth | 16 | €93.78 |
