MARTIN SPROCKET Bored To Size Type Steel Stock Spur Gears, 16 Diameter Pitch
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1| Style | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | S1613BS 3/8 | 0.812" | 14.5° | 13 | 1/2" | 5/8" | 3/8" | Bored to Size | 0.438" | €76.56 | |
| B | S1615BS 1/2 | 0.937" | 14.5° | 15 | 1/2" | 3/4" | 1/2" | Bored to Size External Tooth | 0.438" | €87.09 | |

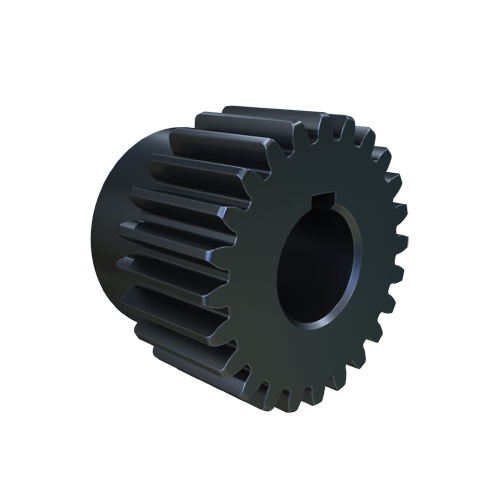

| C | TS1624BS 5/8 | 1 1/2" | 20° | 24 | 3/4" | 1.313" | 5/8" | Bored to Size External Tooth | 1/2" | €106.13 | |
| D | TS1624BS 3/4 | 1 1/2" | 20° | 24 | 3/4" | 1.313" | 3/4" | Bored to Size External Tooth | 1/2" | €106.13 | |
| E | S1624BS 5/8 | 1 1/2" | 14.5° | 24 | 1/2" | 1.313" | 5/8" | Bored to Size External Tooth | 0.438" | €106.13 | |
| F | S1624BS 1/2 | 1 1/2" | 14.5° | 24 | 1/2" | 1 5/16" | 1/2" to 3/4" | Bored to Size | 0.438" | €106.13 | |
| G | S1624BS 3/4 | 1 1/2" | 14.5° | 24 | 1/2" | 1 5/16" | 3/4" | Bored to Size | 0.438" | €106.13 | |
| F | S1620BS 1/2 | 1 1/4" | 14.5° | 20 | 1/2" | 1 1/16" | 1/2" to 9/16" | Bored to Size | 0.438" | €95.58 | |

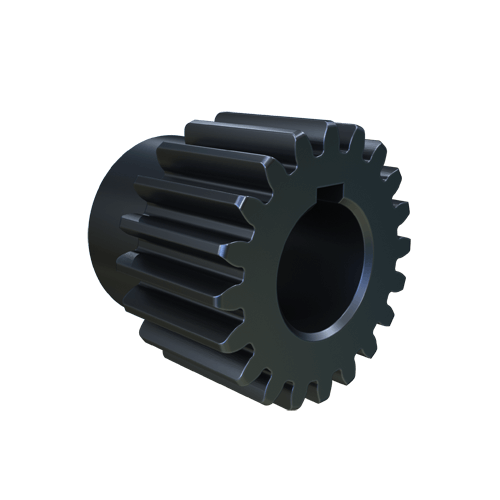

| H | TS1620BS 5/8 | 1 1/4" | 20° | 20 | 3/4" | 1.063" | 5/8" | Bored to Size External Tooth | 1/2" | €95.58 | |
| I | S1620BS 5/8 | 1 1/4" | 14.5° | 20 | 1/2" | 1.063" | 5/8" | Bored to Size External Tooth | 0.438" | €95.58 | |
| J | TS1618BS 1/2 | 1 1/8" | 20° | 18 | 3/4" | 15/16" | 1/2" | Bored to Size | 1/2" | €92.10 | |
| K | S1618BS 1/2 | 1 1/8" | 14.5° | 18 | 1/2" | 0.938" | 1/2" | Bored to Size External Tooth | 0.438" | €92.10 | |
| L | S1628BS 1/2 | 1 3/4" | 14.5° | 28 | 1/2" | 1 1/2" | 1/2" | Bored to Size External Tooth | 1/2" | €120.29 | |
| M | S1628BS 7/8 | 1 3/4" | 14.5° | 28 | 1/2" | 1 1/2" | 7/8" | Bored to Size | 1/2" | €120.29 | |
| N | TS1628BS 3/4 | 1 3/4" | 20° | 28 | 3/4" | 1 1/2" | 3/4" | Bored to Size External Tooth | 1/2" | €120.29 | |
| O | S1628BS 5/8 | 1 3/4" | 14.5° | 28 | 1/2" | 1 1/2" | 5/8" | Bored to Size External Tooth | 1/2" | €120.29 | |
| P | S1628BS 3/4 | 1 3/4" | 14.5° | 28 | 1/2" | 1 1/2" | 3/4" to 7/8" | Bored to Size | 1/2" | €120.29 | |
| Q | TS1628BS 5/8 | 1 3/4" | 20° | 28 | 3/4" | 1 1/2" | 5/8" | Bored to Size External Tooth | 1/2" | €120.29 | |
| R | S1622BS 5/8 | 1 3/8" | 14.5° | 22 | 1/2" | 1.188" | 5/8" | Bored to Size External Tooth | 0.438" | €99.99 | |
| S | S1622BS 1/2 | 1 3/8" | 14.5° | 22 | 1/2" | 1 3/16" | 1/2" to 5/8" | Bored to Size | 0.438" | €99.99 | |
| G | S1626BS 5/8 | 1 5/8" | 14.5° | 26 | 1/2" | 1 7/16" | 5/8" to 7/8" | Bored to Size | 0.438" | €118.23 | |
| T | S1626BS 3/4 | 1 5/8" | 14.5° | 26 | 1/2" | 1 7/16" | 3/4" to 7/8" | Bored to Size | 0.438" | €118.23 | |
| U | S1626BS 1/2 | 1 5/8" | 14.5° | 26 | 1/2" | 1 7/16" | 1/2" to 7/8" | Bored to Size | 0.438" | €118.23 | |

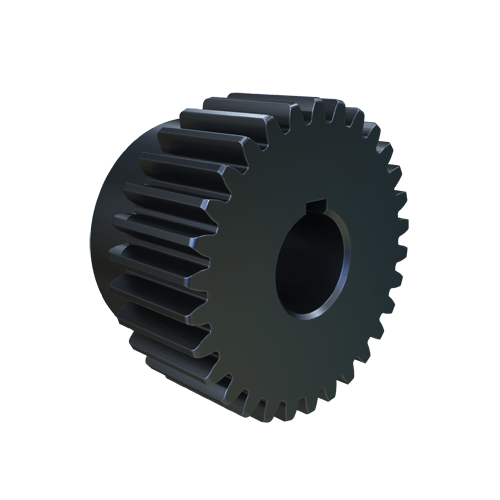

| V | TS1630BS 5/8 | 1 7/8" | 20° | 30 | 3/4" | 1 5/8" | 5/8" | Bored to Size External Tooth | 1/2" | €127.05 | |
| W | TS1630BS 3/4 | 1 7/8" | 20° | 30 | 3/4" | 1 5/8" | 3/4" to 15/16" | Bored to Size | 1/2" | €127.05 | |
| X | TS1630BS 7/8 | 1 7/8" | 20° | 30 | 3/4" | 1 5/8" | 7/8" to 15/16" | Bored to Size | 1/2" | €127.05 | |
| G | S1630BS 3/4 | 1 7/8" | 14.5° | 30 | 1/2" | 1 5/8" | 3/4" to 15/16" | Bored to Size | 1/2" | €127.05 | |

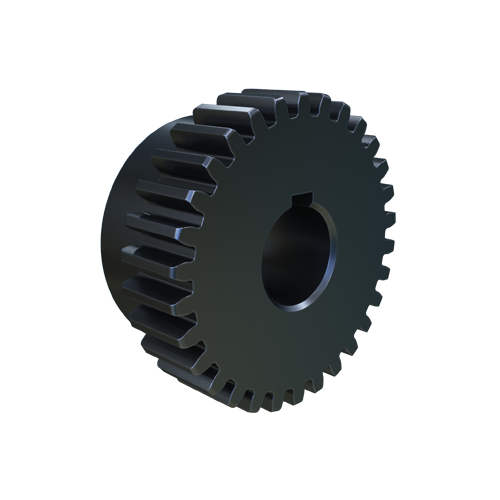

| Y | S1630BS 5/8 | 1 7/8" | 14.5° | 30 | 1/2" | 1 5/8" | 5/8" | Bored to Size External Tooth | 1/2" | €127.05 | |
| G | S1630BS 1 | 1 7/8" | 14.5° | 30 | 1/2" | 1 5/8" | 1" | Bored to Size | 1/2" | €127.05 | |
| Z | S1630BS 1/2 | 1 7/8" | 14.5° | 30 | 1/2" | 1 5/8" | 1/2" | Bored to Size External Tooth | 1/2" | €127.05 | |
| A1 | S1616BS 1/2 | 1" | 14.5° | 16 | 1/2" | 0.813" | 1/2" | Bored to Size External Tooth | 0.438" | €93.78 | |
| G | TS1616BS 1/2 | 1" | 20° | 16 | 3/4" | 13/16" | 1/2" | Bored to Size | 1/2" | €93.78 | |
| B1 | TS1632BS 1 | 2" | 20° | 32 | 3/4" | 1 3/4" | 1" | Bored to Size External Tooth | 1/2" | €142.07 | |
| C1 | TS1632BS 5/8 | 2" | 20° | 32 | 3/4" | 1 3/4" | 5/8" | Bored to Size External Tooth | 1/2" | €142.07 | |
| D1 | S1632BS 1/2 | 2" | 14.5° | 32 | 1/2" | 1 3/4" | 1/2" | Bored to Size External Tooth | 1/2" | €142.07 | |
| G | S1632BS 1 | 2" | 14.5° | 32 | 1/2" | 1 3/4" | 1" | Bored to Size | 1/2" | €142.07 | |
| E1 | S1632BS 3/4 | 2" | 14.5° | 32 | 1/2" | 1 3/4" | 3/4" | Bored to Size External Tooth | 1/2" | €142.07 | |

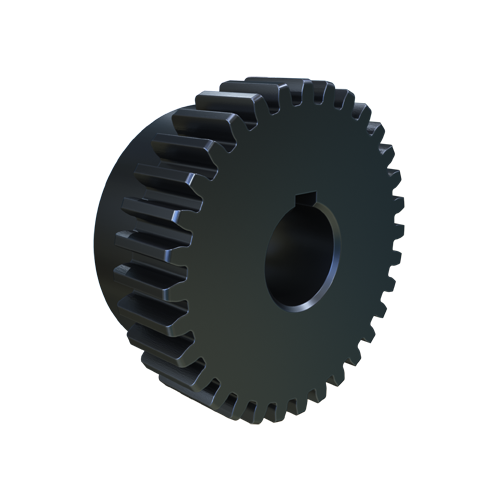

| F1 | S1632BS 5/8 | 2" | 14.5° | 32 | 1/2" | 1 3/4" | 5/8" | Bored to Size External Tooth | 1/2" | €142.07 | |

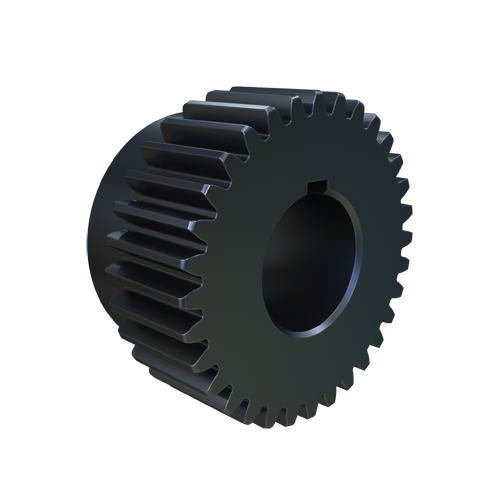

| G1 | TS1632BS 7/8 | 2" | 20° | 32 | 3/4" | 1 3/4" | 7/8" to 1" | Bored to Size | 1/2" | €142.07 | |
| G | TS1632BS 3/4 | 2" | 20° | 32 | 3/4" | 1 3/4" | 3/4" to 1" | Bored to Size | 1/2" | €142.07 | |
| H1 | S1611BS 3/8 | 3/4" | 14.5° | 11 | 1/2" | 9/16" | 3/8" | Bored to Size | 0.438" | €82.10 | |
| I1 | S1612BS 3/8 | 3/4" | 14.5° | 12 | 1/2" | 9/16" | 3/8" | Bored to Size | 0.438" | €82.10 | |
| F | TS1612BS 3/8 | 3/4" | 20° | 12 | 3/4" | 9/16" | 3/8" | Bored to Size | 1/2" | €82.10 | |
| J1 | S1614BS 3/8 | 7/8" | 14.5° | 14 | 1/2" | 0.688" | 3/8" | Bored to Size External Tooth | 0.438" | €83.24 | |
| K1 | TS1614BS 3/8 | 7/8" | 20° | 14 | 3/4" | 11/16" | 3/8" | Bored to Size | 1/2" | €83.24 | |
| L1 | TS1615BS 3/8 | 15/16" | 20° | 15 | 3/4" | 3/4" | 3/8" to 1/2" | Bored to Size | 1/2" | €87.09 | |
| G | TS1615BS 1/2 | 15/16" | 20° | 15 | 3/4" | 3/4" | 1/2" | Bored to Size | 1/2" | €87.09 |
