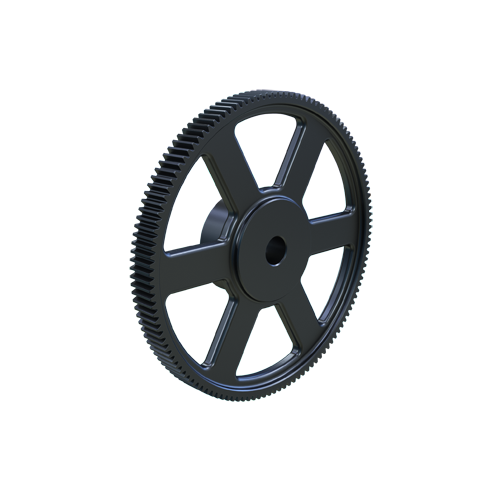

MARTIN SPROCKET TC16128 Spur Gear, 16 Diametral Pitch, 8 Inch Pitch Dia., Reborable, Cast Iron
Item: AZ3XYPModel: TC16128
7 In Stock
Ships within 2 days via
€275.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 3/4" to 1 11/16" |
| Diametral Pitch | 16 |
| Face Width | 3/4" |
| Hub Dia. | 2 3/4" |
| Hub Projection | 3/4" |
| Hub Type | B |
| Length | 1 1/2" |
| Material | Cast Iron |
| No. Of Teeth | 128 |
| Pitch Dia. | 8" |
| Pressure Angle | 20° |
| Type | Reboreable |
Shipping Info:
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 20.65 |
| Ship width (cm) | 20.65 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Diametral Pitch | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C16112 | 7" | 14.5° | 112 | 1/2" | 2.4845" | 5/8" to 1 7/16" | 16 | Reboreable | €243.81 | |
|
C16120 | 7 1/2" | 14.5° | 120 | 1/2" | 2.4845" | 5/8" to 1 7/16" | 16 | Reboreable | €254.51 | |
 |
C16128 | 8" | 14.5° | 128 | 1/2" | 2.485" | 0.625" to 1.438" | 16 | External Tooth Reborable | €275.44 | |
 |
C16144 | 9" | 14.5° | 144 | 1/2" | 2.735" | 0.625" to 1.688" | 16 | External Tooth Reborable | €318.24 | |
 |
C16160 | 1" | 14.5° | 160 | 1/2" | 2.735" | 0.625" to 1.688" | 16 | External Tooth Reborable | €349.89 | |
|
C16192 | 12" | 14.5° | 192 | 1/2" | 2.7345" | 5/8" to 1 11/16" | 16 | Reboreable | €413.64 | |
 |
TC16160 | 3.827" | 20° | 160 | 3/4" | 2 3/4" | 0.875" to 1.688" | 16 | External Tooth Reborable | €349.89 |
