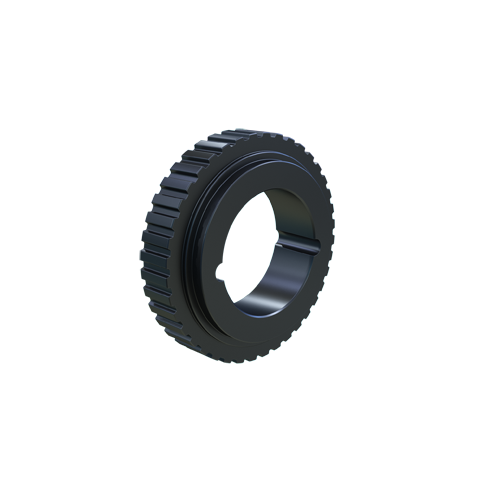

MARTIN SPROCKET TB40L075 Timing Pulley, 40 Teeth, 0.813 Inch Face Width, 0.75 Inch Belt Width, Steel
Item: AK6DJRModel: TB40L075
7 In Stock
Ships within 2 days via
€201.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Timing Pulley |
| Bore Dia. | 1/2" to 2" |
| Bore Type | TB Bushed |
| Bushing Type | 2012 |
| Face Width | 0.813" |
| Flange Dia. | 4.997" |
| Length | 1 1/4" |
| Material | Steel |
| No. Of Grooves | 40 |
| No. Of Teeth | 40 |
| Outside Dia. | 4.745" |
| Pitch | 3/8" |
| Pitch Dia. | 4.775" |
| Suitable For Use With | 3/4" W Type L Belt |
| Type | Solid Type CF-1 |
Shipping Info:
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 12.07 |
| Ship width (cm) | 12.07 |
| Country of Origin | US |
Product Variants
| Product | Model | Type | Face Width | Material | No. Of Teeth | Pitch Dia. | Bore Dia. | No. Of Grooves | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TB18L050 | Solid Type CF-1 | 0.563" | Steel | 18 | 2.149" | 1/2" to 1" | 18 | 1008 | €78.56 | |
 |
TB20L050 | Solid Type CF-1 | 0.563" | Steel | 20 | 2.387" | 1/2" to 1" | 20 | 1008 | €87.57 | |
 |
TB22L050 | Solid Type CF-1 | 0.563" | Steel | 22 | 2.626" | 1/2" to 1" | 22 | 1008 | €100.76 | |
 |
TB24L050 | Solid Type CF-1 | 0.563" | Steel | 24 | 2.865" | 0.5" to 1.26" | 24 | 1210 | €105.66 | |
 |
TB26L050 | Solid Type CF-1 | 0.563" | Steel | 26 | 3.104" | 0.5" to 1.26" | 26 | 1210 | €111.23 | |
 |
TB28L050 | Solid Type CF-1 | 0.563" | Steel | 28 | 3.342" | 1/2" to 1" | 28 | 1008 | €113.29 | |
 |
TB30L050 | Solid Type CF-1 | 0.563" | Steel | 30 | 3.581" | 1/2" to 1 5/8" | 30 | 1610 | €119.54 |
