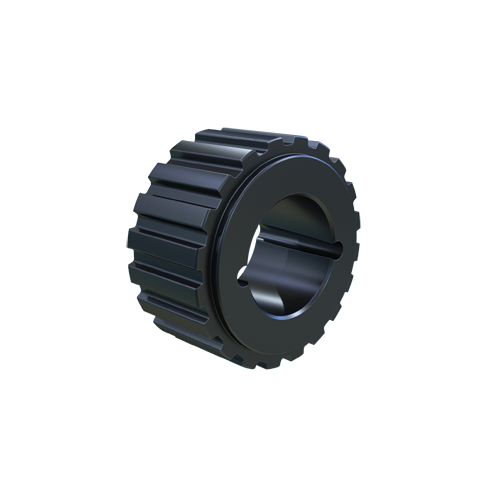

MARTIN SPROCKET Taper Bushed Type Timing Pulleys, L Belt Type
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1| Style | Model | Outside Dia. | Face Width | Bore Dia. | Material | Type | Pitch Dia. | Flange Dia. | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TB18L075 | 2.119" | 0.812" | 1/2" to 1" | Steel | Solid Type KF-1 | 2.149" | 2 3/8" | TB Bushed | €91.06 | |
| B | TB18L050 | 2.119" | 0.563" | 1/2" to 1" | Steel | Solid Type CF-1 | 2.149" | 2 3/8" | TB Bushed | €78.56 | |
| C | TB18L100 | 2.119" | 1.063" | 1/2" to 1" | Steel | Solid Type KF-1 | 2.149" | 2 3/8" | TB Bushed | €97.34 | |
| D | TB20L100 | 2.357" | 1.063" | 1/2" to 1" | Steel | Solid Type KF-1 | 2.387" | 2.613" | TB Bushed | €104.28 | |
| E | TB20L075 | 2.357" | 0.812" | 1/2" to 1" | Steel | Solid Type KF-1 | 2.387" | 2.613" | TB Bushed | €97.34 | |
| F | TB20L050 | 2.357" | 0.563" | 1/2" to 1" | Steel | Solid Type CF-1 | 2.387" | 2.613" | TB Bushed | €87.57 | |
| G | TB22L100 | 2.596" | 1.063" | 1/2" to 1" | Steel | Solid Type KF-1 | 2.626" | 2.852" | TB Bushed | €109.84 | |
| H | TB22L050 | 2.596" | 0.563" | 1/2" to 1" | Steel | Solid Type CF-1 | 2.626" | 2.852" | TB Bushed | €100.76 | |
| I | TB22L075 | 2.596" | 1" | 1/2" to 1" | Steel | Solid Type KF-1 | 2.626" | 2 7/8" | TB Bushed | €107.74 | |
| J | TB24L100 | 2.835" | 1.063" | 0.5" to 1.26" | Steel | Solid Type KF-1 | 2.865" | 3.08" | TB Bushed | €115.36 | |
| K | TB24L075 | 2.835" | 0.812" | 0.5" to 1.26" | Steel | Solid Type KF-1 | 2.865" | 3.08" | TB Bushed | €113.29 | |
| L | TB24L050 | 2.835" | 0.563" | 0.5" to 1.26" | Steel | Solid Type CF-1 | 2.865" | 3.08" | TB Bushed | €105.66 | |
| M | TB26L075 | 3.074" | 0.813" | 0.5" to 1.26" | Steel | Solid Type KF-1 | 3.104" | 3.328" | TB Bushed | €125.14 | |
| N | TB26L050 | 3.074" | 0.563" | 0.5" to 1.26" | Steel | Solid Type CF-1 | 3.104" | 3.328" | TB Bushed | €111.23 | |
| O | TB26L100 | 3.074" | 1.062" | 0.5" to 1.26" | Steel | Solid Type KF-1 | 3.104" | 3.328" | TB Bushed | €132.09 | |
| I | TB32L050 | 3.79" | 3/4" | 1/2" to 1 5/8" | Steel | Solid Type CF-1 | 3.82" | 4 1/16" | TB Bushed | €128.60 | |
| P | TB32L075 | 3.79" | 0.812" | 1/2" to 1 5/8" | Steel | Solid Type KF-1 | 3.82" | 4.044" | TB Bushed | €152.91 | |
| Q | TB32L100 | 3.79" | 1.063" | 1/2" to 1 5/8" | Steel | Solid Type KF-1 | 3.82" | 4.044" | TB Bushed | €170.31 | |
| R | TB28L050 | 3.312" | 0.563" | 1/2" to 1" | Steel | Solid Type CF-1 | 3.342" | 3.566" | TB Bushed | €113.29 | |
| S | TB28L075 | 3.312" | 0.812" | 1/2" to 2" | Steel | Solid Type KF-1 | 3.342" | 3.566" | TB Bushed | €132.09 | |
| T | TB28L100 | 3.312" | 1.063" | 1/2" to 1 5/8" | Steel | Solid Type KF-1 | 3.342" | 3.566" | TB Bushed | €145.96 | |
| U | TB30L050 | 3.551" | 0.563" | 1/2" to 1 5/8" | Steel | Solid Type CF-1 | 3.581" | 3.805" | TB Bushed | €119.54 | |
| V | TB30L075 | 3.551" | 0.813" | 1/2" to 1 5/8" | Steel | Solid Type KF-1 | 3.581" | 3.805" | TB Bushed | €142.51 | |
| W | TB30L100 | 3.551" | 1.062" | 1/2" to 1 5/8" | Steel | Solid Type KF-1 | 3.581" | 3.805" | TB Bushed | €156.42 | |
| X | TB40L075 | 4.745" | 0.813" | 1/2" to 2" | Steel | Solid Type CF-1 | 4.775" | 4.997" | TB Bushed | €201.61 | |
| Y | TB40L050 | 4.745" | 0.563" | 1/2" to 2" | Steel | Solid Type CF-1 | 4.775" | 4.997" | TB Bushed | €194.61 | |
| Z | TB40L100 | 4.745" | 1.063" | 1/2" to 2" | Steel | Solid Type KF-1 | 4.775" | 4.997" | TB Bushed | €201.61 | |
| Y | TB48L050 | 5.7" | 0.563" | 1/2" to 2" | Cast Iron | Solid Type CF-1 | 5.73" | 5.95" | TB Bushed | €239.81 | |
| A1 | TB48L075 | 5.7" | 0.813" | 1/2" to 2" | Cast Iron | Solid Type CF-1 | 5.73" | 5.95" | TB Bushed | €243.31 | |
| B1 | TB48L100 | 5.7" | 1.062" | 1/2" to 2" | Cast Iron | Solid Type KF-1 | 5.73" | 5.95" | TB Bushed | €257.20 | |
| C1 | TB60L050 | 7.132" | 3/4" | 1/2" to 2" | Cast Iron | Type C-2 Web | 7.162" | - | TB Bushed | €257.20 | |
| D1 | TB60L100 | 7.132" | 1 1/4" | 1/2" to 2" | Cast Iron | Type C-2 Web | 7.162" | - | TB Bushed | €278.04 | |
| E1 | TB60L075 | 7.132" | 1" | 1/2" to 2" | Cast Iron | Solid Type C-1 | 7.162" | - | TB Bushed | €267.65 |
