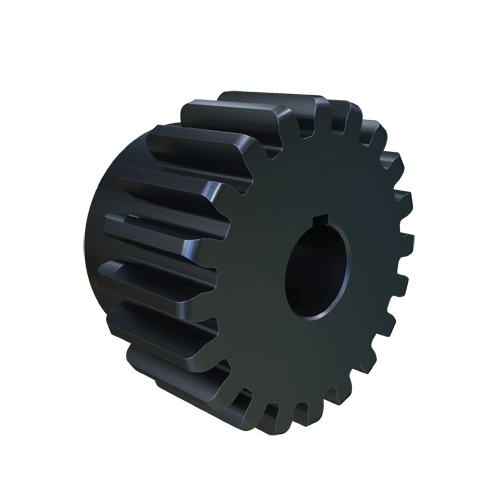

MARTIN SPROCKET S620BS 1 Spur Gear, 6 Diametral Pitch, 3.333 Inch Pitch Dia., 1 Inch Bore, Bore To Size, Steel
Item: AL4MZTModel: S620BS 1
7 In Stock
Ships within 2 days via
€342.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Diameter | 1" |
| Bore Type | Bored To Size |
| Diametral Pitch | 6 |
| Face Width | 1 1/2" |
| Finished Bore Size | 1" |
| Hub Outside Dia. | 2.844" |
| Hub Projection | 7/8" |
| Keyway Size | 1/4 x 1/8" |
| Length | 2 3/8" |
| Length Thru Bore | 2 3/8" |
| Material | Steel |
| Max. Bore Size | 1" |
| Min. Bore Size | 1" |
| No. Of Teeth | 20 |
| Outside Dia. | 3.667" |
| Pitch Dia. | 3.333" |
| Pressure Angle | 14.5° |
| Set Screw Size | 5/16"-18 |
Shipping Info:
| Ship weight (kg) | 2.08 |
| Ship height (cm) | 6.03 |
| Ship length (cm) | 9.32 |
| Ship width (cm) | 9.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Pressure Angle | Face Width | Outside Dia. | Number Of Teeth | Pitch Dia. | Material | Type | Diametral Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S614BS 1 | 14.5° | 1 1/2" | 2.667" | 14 | 2.333" | Steel | Bored to Size External Tooth | 6 | €228.03 | |
 |
S615BS 1 1/4 | 14.5° | 1 1/2" | 2.833" | 15 | 2 1/2" | Cast Iron | Bored to Size External Tooth | 6 | €256.09 | |
 |
S616BS 1 1/8 | 14.5° | 1 1/2" | 3" | 16 | 2.667" | Cast Iron | Bored to Size External Tooth | 6 | €284.85 | |
 |
S611BS 1 | 14.5° | 1 1/2" | 2.333" | - | 2" | Steel | Bored to Size External Tooth | 6 | €200.45 | |
 |
S612BS 1 | 14.5° | 1 1/2" | 2.333" | 12 | 2" | Steel | Bored to Size External Tooth | 6 | €200.45 | |
 |
S615BS 1 | 14.5° | 1 1/2" | 2.833" | 15 | 2 1/2" | Steel | Bored to Size External Tooth | 6 | €256.09 | |
|
S615BS 1 1/8 | 14.5° | 1 1/2" | 2.833" | 15 | 2 1/2" | Cast Iron | Bored to Size External Tooth | 6 | €256.09 |
