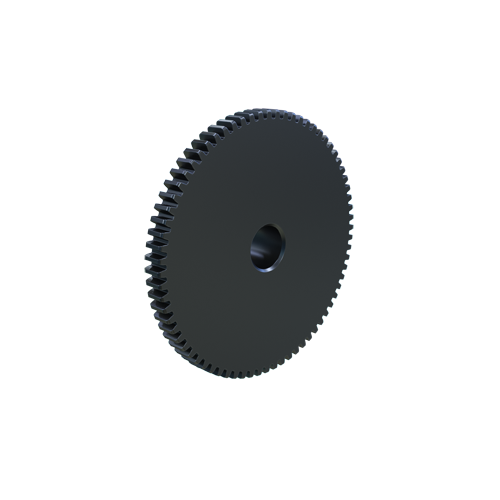

MARTIN SPROCKET S2472 Spur Gear, 24 Diametral Pitch, 3 Inch Pitch Dia., Reborable, Steel
Item: AK2XJKModel: S2472
7 In Stock
3"
Ships within 2 days via
€143.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Diametral Pitch | 24 |
| Face Width | 1/4" |
| Hub Diameter | 1 3/8" |
| Hub Projection | 1/2" |
| Length | 3/4" |
| Material | Steel |
| No. Of Teeth | 72 |
| Outside Dia. | 3.083" |
| Pitch Diameter | 3" |
| Pressure Angle | 14.5° |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 7.82 |
| Ship width (cm) | 7.82 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Hub Projection | Number Of Teeth | Pitch Dia. | Type | Diametral Pitch | Pressure Angle | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S2412 | 0.583" | 0.313" | 12 | - | External Tooth Reborable | 24 | 14.5° | 1/4" | €53.19 | |
 |
S2414 | 0.666" | 0.313" | 14 | 0.583" | External Tooth Reborable | 24 | 14.5° | 1/4" | €53.19 | |
 |

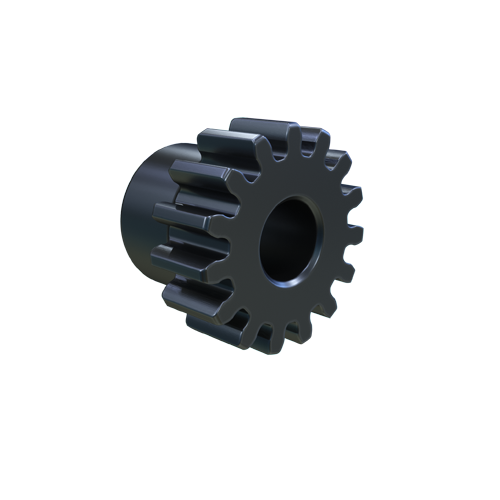

S2415 | 0.708" | 0.313" | 15 | - | External Tooth Reborable | 24 | 14.5° | 1/4" | €55.31 | |
 |
S2416 | 3/4" | 0.313" | 16 | 0.666" | External Tooth Reborable | 24 | 14.5° | 1/4" | €56.73 | |
 |
S2418 | 0.833" | 0.313" | 18 | - | External Tooth Reborable | 24 | 14.5° | 1/4" | €59.53 | |
 |
S2420 | 0.917" | 0.313" | - | 0.833" | External Tooth Reborable | 24 | 14.5° | 1/4" | €69.50 | |
 |
S2421 | 0.959" | 0.313" | 21 | 7/8" | External Tooth Reborable | 24 | 14.5° | 1/4" | €75.90 |
