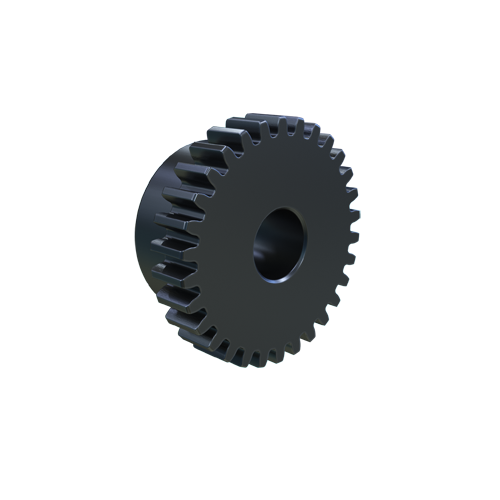

MARTIN SPROCKET S2430 Spur Gear, 24 Diametral Pitch, 1.250 Inch Pitch Dia., Reborable, Steel
Item: AK2XHMModel: S2430
7 In Stock
1.250"
Ships within 2 days via
€88.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 3/8" to 1/2" |
| Diametral Pitch | 24 |
| Face Width | 1/4" |
| Hub Dia. | 1" |
| Hub Projection | 3/8" |
| Hub Type | B |
| Length | 5/8" |
| Material | Steel |
| No. Of Teeth | 30 |
| Outside Dia. | 1.333" |
| Pitch Dia. | 1 1/4" |
| Pressure Angle | 14.5° |
| Type | External Tooth Reborable |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.6 |
| Ship length (cm) | 3.38 |
| Ship width (cm) | 3.38 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Hub Dia. | Bore Dia. | Type | Hub Projection | Material | Pressure Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S2412 | 1/2" | 12 | 3/8" | 1/4" | External Tooth Reborable | 0.313" | Steel | 14.5° | €53.19 | |
 |
S2414 | 0.583" | 14 | 0.469" | 1/4" | External Tooth Reborable | 0.313" | Steel | 14.5° | €53.19 | |
 |
S2415 | 5/8" | 15 | 1/2" | 1/4" | External Tooth Reborable | 0.313" | Steel | 14.5° | €55.31 | |
 |
S2416 | 0.666" | 16 | 0.547" | 5/16" | External Tooth Reborable | 0.313" | Steel | 14.5° | €56.73 | |
 |
S2418 | 3/4" | 18 | 5/8" | 5/16" | External Tooth Reborable | 0.313" | Steel | 14.5° | €59.53 | |
 |
S2420 | 0.833" | 20 | 0.719" | 5/16" | External Tooth Reborable | 0.313" | Steel | 14.5° | €69.50 | |
 |
S2421 | 7/8" | 21 | 3/4" | 3/8" | External Tooth Reborable | 0.313" | Steel | 14.5° | €75.90 |
