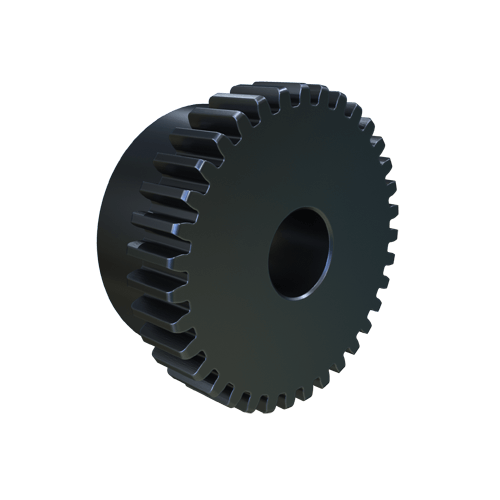

MARTIN SPROCKET S2035BS 1/2 Spur Gear, 20 DP, 14.5 Deg., 35 Teeth, 1.750 Inch Pitch Dia., Steel
Item: AL4MYXModel: S2035BS 1/2
7 In Stock
Ships within 2 days via
€120.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Diametral Pitch | 20 |
| Face Width | 3/8" |
| Hub Diameter | 1 9/16" |
| Hub Projection | 3/8" |
| Length | 7/8" |
| Material | Steel |
| No. Of Teeth | 35 |
| Outside Dia. | 1.85" |
| Outside Diameter | 1.85" |
| Pressure Angle | 14.5° |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 4.7 |
| Ship width (cm) | 4.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Pressure Angle | Face Width | Outside Dia. | Hub Projection | Number Of Teeth | Pitch Dia. | Type | Diametral Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S2040BS 3/4 | 14.5° | 3/8" | 2.1" | 1/2" | - | - | Bored to Size | 20 | €127.05 | |
 |
TS2040BS 3/4 | 20° | 1/2" | 2.1" | 1/2" | - | - | Bored to Size External Tooth | 20 | €127.05 | |
 |
S2024BS 1/2 | 14.5° | 3/8" | 1.3" | 3/8" | 24 | 1 1/5" | Bored to Size | 20 | €93.85 | |
 |
S2011BS 5/16 | 14.5° | 3/8" | 0.7" | 3/8" | - | 3/5" | Bored to Size | 20 | €67.39 | |
 |
S2012BS 5/16 | 14.5° | 3/8" | 0.7" | 3/8" | 12 | 3/5" | Bored to Size | 20 | €67.39 | |
 |
S2013BS 5/16 | 14.5° | 3/8" | 3/4" | 3/8" | 13 | 0.65" | Bored to Size | 20 | €74.72 | |
|
S2015BS 3/8 | 14.5° | 3/8" | 0.85" | 3/8" | 15 | - | Bored to Size | 20 | €76.56 |
