MARTIN SPROCKET Bored To Size Type Steel Stock Spur Gears, 20 Diameter Pitch
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1| Style | Model | Pressure Angle | Bore Dia. | Pitch Dia. | Face Width | Outside Dia. | Hub Dia. | Hub Projection | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | S2040BS 3/4 | 14.5° | 3/4" to 1 1/16" | 2" | 3/8" | 2.1" | 1 13/16" | 1/2" | Bored to Size | €127.05 | |
| B | S2035BS 1/2 | 14.5° | 1/2" to 7/8" | 1 3/4" | 3/8" | 1.85" | 1 9/16" | 3/8" | Bored to Size | €120.29 | |
| C | S2036BS 3/8 | 14.5° | 3/8" to 15/16" | 1 4/5" | 3/8" | 1.9" | 1 5/8" | 1/2" | Bored to Size | €123.27 | |
| D | S2028BS 3/8 | 14.5° | 3/8" to 11/16" | 1 2/5" | 3/8" | 1 1/2" | 1.2656" | 3/8" | Bored to Size | €95.21 | |
| E | S2016BS 3/8 | 14.5° | 3/8" | 4/5" | 3/8" | 0.9" | 0.6563" | 3/8" | Bored to Size | €78.46 | |
| F | S2014BS 5/16 | 14.5° | 5/16" | 0.7" | 3/8" | 4/5" | 0.5469" | 3/8" | Bored to Size | €78.90 | |
| G | S2018BS 3/8 | 14.5° | 3/8" | 0.9" | 3/8" | 1" | 3/4" | 3/8" | Bored to Size | €85.17 | |
| H | S2032BS 3/8 | 14.5° | 3/8" to 7/8" | 1 3/5" | 3/8" | 1.7" | 1 7/16" | 1/2" | Bored to Size | €116.57 | |

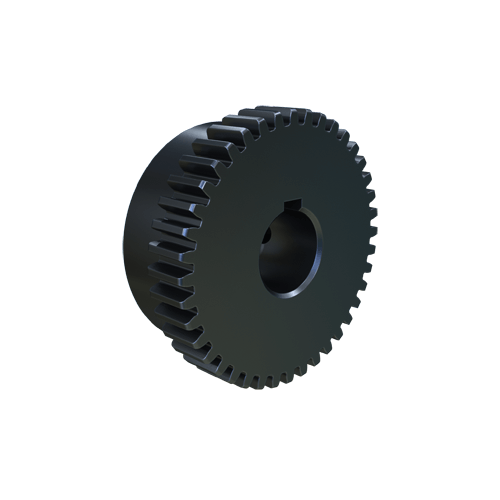

| I | S2040BS 5/8 | 14.5° | 5/8" to 1 1/16" | 2" | 3/8" | 2.1" | 1 13/16" | 1/2" | Bored to Size | €127.05 | |
| D | S2040BS 3/8 | 14.5° | 3/8" to 1 1/16" | 2" | 3/8" | 2.1" | 1 13/16" | 1/2" | Bored to Size | €121.00 | |
| D | S2040BS 1/2 | 14.5° | 1/2" to 1 1/16" | 2" | 3/8" | 2.1" | 1 13/16" | 1/2" | Bored to Size | €121.00 | |
| J | S2036BS 1/2 | 14.5° | 1/2" | 1 4/5" | 3/8" | 1.9" | 1 5/8" | 3/8" | Bored to Size External Tooth | €123.27 | |
| K | S2035BS 3/8 | 14.5° | 3/8" to 7/8" | 1 3/4" | 3/8" | 1.85" | 1 9/16" | 3/8" | Bored to Size | €120.29 | |
| L | S2011BS 5/16 | 14.5° | 5/16" | 3/5" | 3/8" | 0.7" | 0.4688" | 3/8" | Bored to Size | €67.39 | |
| D | S2030BS 3/8 | 14.5° | 3/8" to 13/16" | 1 1/2" | 3/8" | 1 3/5" | 1.3594" | 3/8" | Bored to Size | €106.13 | |
| D | S2020BS 3/8 | 14.5° | 3/8" | 1" | 3/8" | 1.1" | 0.8594" | 3/8" | Bored to Size | €91.85 | |
| M | S2028BS 1/2 | 14.5° | 1/2" to 11/16" | 1 2/5" | 3/8" | 1 1/2" | 1.2656" | 3/8" | Bored to Size | €99.99 | |
| N | S2025BS 3/8 | 14.5° | 3/8" to 5/8" | 1 1/4" | 3/8" | 1.35" | 1.1094" | 3/8" | Bored to Size | €95.58 | |
| O | S2025BS 1/2 | 14.5° | 1/2" to 5/8" | 1 1/4" | 3/8" | 1.35" | 1.1094" | 3/8" | Bored to Size | €95.58 | |
| D | S2024BS 3/8 | 14.5° | 3/8" to 9/16" | 1 1/5" | 3/8" | 1.3" | 1 1/16" | 3/8" | Bored to Size | €93.85 | |
| P | S2022BS 3/8 | 14.5° | 3/8" | 1.1" | 3/8" | 1 1/5" | 0.9688" | 3/8" | Bored to Size | €98.58 | |
| D | S2024BS 1/2 | 14.5° | 1/2" to 9/16" | 1 1/5" | 3/8" | 1.3" | 1 1/16" | 3/8" | Bored to Size | €93.85 | |
| Q | S2012BS 5/16 | 14.5° | 5/16" | 3/5" | 3/8" | 0.7" | 0.4688" | 3/8" | Bored to Size | €67.39 | |
| R | S2013BS 5/16 | 14.5° | 5/16" | 0.65" | 3/8" | 3/4" | 1/2" | 3/8" | Bored to Size | €74.72 | |
| D | S2015BS 3/8 | 14.5° | 3/8" | 3/4" | 3/8" | 0.85" | 0.6094" | 3/8" | Bored to Size | €76.56 | |
| S | S2030BS 1/2 | 14.5° | 1/2" | 1 1/2" | 3/8" | 1 3/5" | 1.359" | 3/8" | Bored to Size External Tooth | €106.13 | |
| T | S2020BS 1/2 | 14.5° | 1/2" | 1" | 3/8" | 1.1" | 0.859" | 3/8" | Bored to Size External Tooth | €91.85 | |
| U | TS2040BS 5/8 | 20° | 5/8" to 1 1/16" | 2" | 1/2" | 2.1" | 1 13/16" | 1/2" | Bored to Size | €127.05 | |

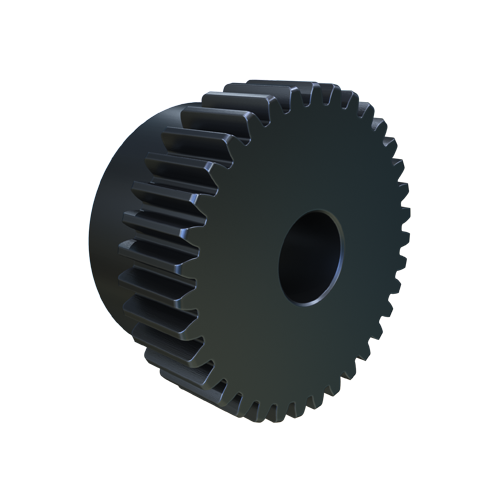

| V | TS2035BS 1/2 | 20° | 1/2" | 1 3/4" | 1/2" | 1.85" | 1.563" | 1/2" | Bored to Size External Tooth | €120.29 | |
| W | TS2025BS 1/2 | 20° | 1/2" to 5/8" | 1 1/4" | 1/2" | 1.35" | 1.1094" | 0.437" | Bored to Size | €95.58 | |
| X | TS2012BS 5/16 | 20° | 5/16" | 3/5" | 1/2" | 0.7" | 0.4688" | 0.438" | Bored to Size | €67.39 | |
| Y | TS2040BS 1/2 | 20° | 1/2" to 1 1/16" | 2" | 1/2" | 2.1" | 1 13/16" | 1/2" | Bored to Size | €127.05 | |

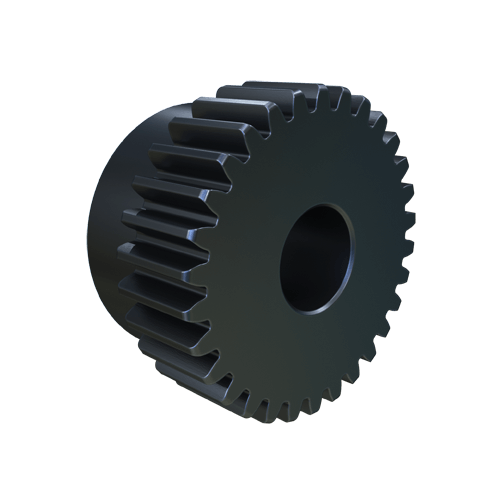

| Z | TS2030BS 1/2 | 20° | 1/2" to 13/16" | 1 1/2" | 1/2" | 1 3/5" | 1.3594" | 0.437" | Bored to Size | €106.13 | |

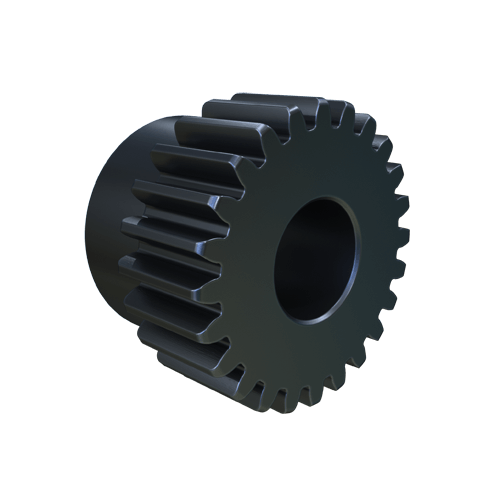

| A1 | TS2024BS 1/2 | 20° | 1/2" | 1 1/5" | 1/2" | 1.3" | 1.063" | 0.437" | Bored to Size External Tooth | €93.85 | |
| D | TS2020BS 1/2 | 20° | 1/2" | 1" | 1/2" | 1.1" | 0.8594" | 0.437" | Bored to Size | €91.85 | |
| D | TS2018BS 3/8 | 20° | 3/8" | 0.9" | 1/2" | 1" | 3/4" | 0.438" | Bored to Size | €85.17 | |
| B1 | TS2015BS 3/8 | 20° | 3/8" | 3/4" | 1/2" | 0.85" | 0.6094" | 0.437" | Bored to Size | €76.56 | |
| C1 | TS2014BS 5/16 | 20° | 5/16" | 0.7" | 1/2" | 4/5" | 0.5469" | 0.438" | Bored to Size | €78.90 | |
| D1 | TS2040BS 3/4 | 20° | 3/4" | 2" | 1/2" | 2.1" | 1.813" | 1/2" | Bored to Size External Tooth | €127.05 | |
| D | TS2016BS 3/8 | 20° | 3/8" | 4/5" | 1/2" | 0.9" | 0.6563" | 0.437" | Bored to Size | €78.46 |
