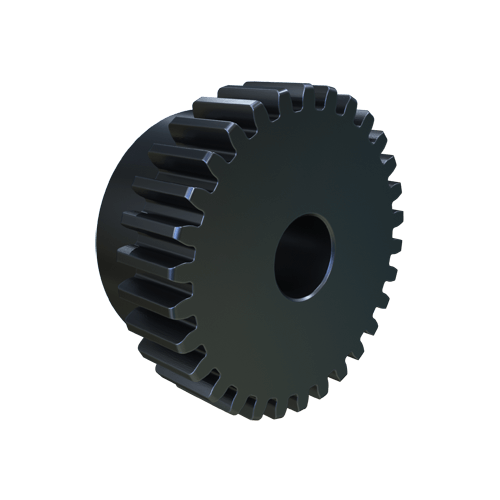

MARTIN SPROCKET S1630BS 1/2 Spur Gear, 16 DP, 14.5 Deg., 30 Teeth, 1.875 Inch Pitch Dia., Steel
Item: AL4MXTModel: S1630BS 1/2
7 In Stock
Ships within 2 days via
€127.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1/2" |
| Diametral Pitch | 16 |
| Face Width | 1/2" |
| Hub Dia. | 1 5/8" |
| Hub Projection | 1/2" |
| Hub Type | B |
| Length | 1" |
| Material | Steel |
| No. Of Teeth | 30 |
| Pitch Dia. | 1 7/8" |
| Pressure Angle | 14.5° |
| Type | Bored to Size External Tooth |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S1620BS 1/2 | 1 1/4" | 14.5° | 20 | 1/2" | 1 1/16" | 1/2" to 9/16" | Bored to Size | 0.438" | €95.58 | |
 |
S1624BS 3/4 | 1 1/2" | 14.5° | 24 | 1/2" | 1 5/16" | 3/4" | Bored to Size | 0.438" | €106.13 | |
 |
S1611BS 3/8 | 3/4" | 14.5° | 11 | 1/2" | 9/16" | 3/8" | Bored to Size | 0.438" | €82.10 | |
 |
S1612BS 3/8 | 3/4" | 14.5° | 12 | 1/2" | 9/16" | 3/8" | Bored to Size | 0.438" | €82.10 | |
 |
S1614BS 3/8 | 7/8" | 14.5° | 14 | 1/2" | 0.688" | 3/8" | Bored to Size External Tooth | 0.438" | €83.24 | |
 |
S1615BS 1/2 | 0.937" | 14.5° | 15 | 1/2" | 3/4" | 1/2" | Bored to Size External Tooth | 0.438" | €87.09 | |
 |
S1616BS 1/2 | 1" | 14.5° | 16 | 1/2" | 0.813" | 1/2" | Bored to Size External Tooth | 0.438" | €93.78 |
