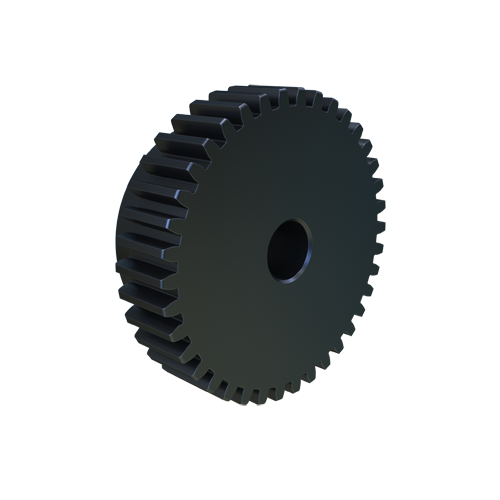

MARTIN SPROCKET S1238 Spur Gear, 12 Diametral Pitch, 3.167 Inch Pitch Dia., Reborable, Steel
Item: AZ3LBKModel: S1238
7 In Stock
3.167"
Ships within 2 days via
€132.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 5/8" to 1 1/2" |
| Diametral Pitch | 12 |
| Face Width | 3/4" |
| Hub Dia. | 2 1/2" |
| Hub Projection | 5/8" |
| Hub Type | B |
| Length | 1 3/8" |
| Material | Steel |
| No. Of Teeth | 38 |
| Outside Dia. | 3.333" |
| Pitch Dia. | 3.167" |
| Pressure Angle | 14.5° |
| Type | External Tooth Reborable |
Shipping Info:
| Ship weight (kg) | 1.08 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 8.46 |
| Ship width (cm) | 8.46 |
| Country of Origin | US |
Product Variants
| Product | Model | No. Of Teeth | Pitch Dia. | Pressure Angle | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S1211 | 11 | 1" | 14.5° | 3/4" | 3/4" | 1/2" | Reboreable | 1/2" | €75.90 | |
 |
S1212 | 12 | 1" | 14.5° | 3/4" | 3/4" | 1/2" | External Tooth Reborable | 1/2" | €75.90 | |
|
S1213 | 13 | 1.083" | 14.5° | 3/4" | 13/16" | 1/2" | Reboreable | 1/2" | €77.29 | |
 |
S1214 | 14 | 1.167" | 14.5° | 3/4" | 0.906" | 1/2" | External Tooth Reborable | 1/2" | €77.96 | |
 |
S1215 | 15 | 1 1/4" | 14.5° | 3/4" | 1" | 5/8" | External Tooth Reborable | 1/2" | €86.38 | |
 |
S1216 | 16 | 1.333" | 14.5° | 3/4" | 1.063" | 5/8" | External Tooth Reborable | 1/2" | €89.58 | |
 |
S1218 | 18 | 1 1/2" | 14.5° | 3/4" | 1 1/4" | 5/8" to 11/16" | External Tooth Reborable | 1/2" | €94.13 |
