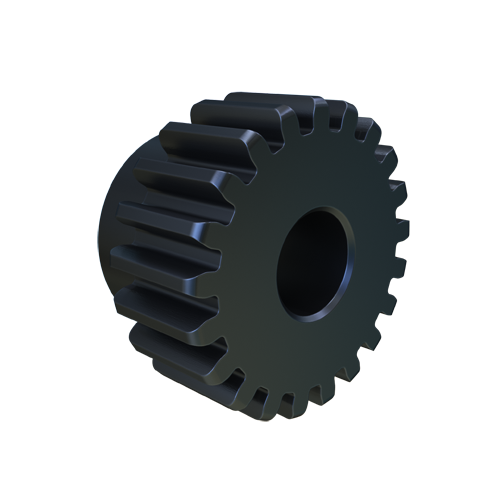

MARTIN SPROCKET Reborable Type Steel Stock Spur Gears, 12 Diameter Pitch
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1| Style | Model | Outside Dia. | Pressure Angle | Bore Dia. | Pitch Dia. | Face Width | Hub Dia. | Hub Projection | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TS1216 | 1 1/2" | 20° | 5/8" | 1.333" | 1" | 1.063" | 5/8" | External Tooth Reborable | €88.65 | |
| B | S1216 | 1 1/2" | 14.5° | 5/8" | 1.333" | 3/4" | 1.063" | 1/2" | External Tooth Reborable | €89.58 | |
| C | S1213 | 1 1/4" | 14.5° | 1/2" | 1.083" | 3/4" | 13/16" | 1/2" | Reboreable | €77.29 | |
| D | TS1213 | 1 1/4" | 20° | 5/8" | 1.083" | 1" | 0.813" | 5/8" | External Tooth Reborable | €76.50 | |
| C | S1219 | 1 3/4" | 14.5° | 5/8" to 3/4" | 1.583" | 3/4" | 1 5/16" | 1/2" | Reboreable | €98.60 | |
| E | TS1219 | 1 3/4" | 20° | 3/4" | 1.583" | 1" | 1.313" | 5/8" | External Tooth Reborable | €97.59 | |
| F | S1217 | 1.58" | 14.5° | 5/8" | 1.413" | 3/4" | 1 1/8" | 1/2" | External Tooth Reborable | €92.84 | |
| G | TS1212 | 1.167" | 20° | 1/2" | 1" | 1" | 3/4" | 5/8" | External Tooth Reborable | €75.11 | |
| C | S1211 | 1.167" | 14.5° | 1/2" | 1" | 3/4" | 3/4" | 1/2" | Reboreable | €75.90 | |
| H | S1212 | 1.167" | 14.5° | 1/2" | 1" | 3/4" | 3/4" | 1/2" | External Tooth Reborable | €75.90 | |
| I | S1214 | 1.333" | 14.5° | 1/2" | 1.167" | 3/4" | 0.906" | 1/2" | External Tooth Reborable | €77.96 | |
| C | TS1214 | 1.333" | 20° | 5/8" | 1.167" | 1" | 0.9063" | 5/8" | Reboreable | €77.15 | |
| J | S1215 | 1.417" | 14.5° | 5/8" | 1 1/4" | 3/4" | 1" | 1/2" | External Tooth Reborable | €86.38 | |
| K | TS1215 | 1.417" | 20° | 5/8" | 1 1/4" | 1" | 0.984" | 5/8" | External Tooth Reborable | €85.47 | |
| L | TS1218 | 1.667" | 20° | 3/4" | 1 1/2" | 1" | 1 1/4" | 5/8" | External Tooth Reborable | €93.14 | |
| M | S1218 | 1.667" | 14.5° | 5/8" to 11/16" | 1 1/2" | 3/4" | 1 1/4" | 1/2" | External Tooth Reborable | €94.13 | |
| C | TS1220 | 1.833" | 20° | 3/4" | 1.667" | 1" | 1 5/16" | 5/8" | Reboreable | €93.56 | |
| N | S1220 | 1.833" | 14.5° | 5/8" to 13/16" | 1.667" | 3/4" | 1.406" | 1/2" | External Tooth Reborable | €94.55 | |
| O | TS1221 | 1.917" | 20° | 3/4" to 13/16" | 1 3/4" | 1" | 1.391" | 5/8" | External Tooth Reborable | €98.80 | |
| P | S1221 | 1.917" | 14.5° | 5/8" to 7/8" | 1 3/4" | 3/4" | 1 1/2" | 1/2" | External Tooth Reborable | €99.86 | |
| Q | TS1228 | 2 1/2" | 20° | 3/4" to 1 1/4" | 2.333" | 1" | 2.063" | 5/8" | External Tooth Reborable | €113.34 | |
| R | S1228 | 2 1/2" | 14.5° | 5/8" to 1 1/2" | 2.333" | 3/4" | 2.063" | 5/8" | External Tooth Reborable | €114.56 | |
| S | TS1225 | 2 1/4" | 20° | 3/4" to 1 1/16" | 2.083" | 1" | 1 13/16" | 5/8" | Reboreable | €110.65 | |
| T | S1225 | 2 1/4" | 14.5° | 5/8" to 1 1/16" | 2.083" | 3/4" | 1.844" | 1/2" | External Tooth Reborable | €111.84 | |
| U | S1222 | 2" | 14.5° | 5/8" to 7/8" | 1.833" | 3/4" | 1.563" | 1/2" | External Tooth Reborable | €103.09 | |
| C | TS1222 | 2" | 20° | 3/4" to 7/8" | 1.833" | 1" | 1 9/16" | 5/8" | Reboreable | €102.02 | |
| V | S1223 | 2.083" | 14.5° | 5/8" to 15/16" | 1.917" | 3/4" | 1 5/8" | 1/2" | External Tooth Reborable | €106.89 | |
| W | TS1224 | 2.166" | 20° | 3/4" to 15/16" | 2" | 1" | 1.641" | 5/8" | External Tooth Reborable | €109.56 | |
| X | S1224 | 2.166" | 14.5° | 5/8" to 1" | 2" | 3/4" | 1 3/4" | 1/2" | External Tooth Reborable | €110.73 | |
| Y | S1226 | 2.333" | 14.5° | 5/8" to 1 3/16" | 2.167" | 3/4" | 1.938" | 5/8" | External Tooth Reborable | €112.91 | |
| C | TS1226 | 2.333" | 20° | 3/4" to 1 1/8" | 2.167" | 1" | 1 7/8" | 5/8" | Reboreable | €111.74 | |
| Z | S1230 | 2.667" | 14.5° | 5/8" to 1 5/16" | 2 1/2" | 3/4" | 2 1/4" | 5/8" | External Tooth Reborable | €119.46 | |
| A1 | TS1230 | 2.667" | 20° | 3/4" to 1 5/16" | 2 1/2" | 1" | 2.156" | 5/8" | External Tooth Reborable | €118.23 | |
| B1 | TS1232 | 2.833" | 20° | 3/4" to 1 5/16" | 2.6666" | 1" | 2 1/4" | 5/8" | Reboreable | €119.79 | |
| B1 | S1232 | 2.833" | 14.5° | 5/8" to 1 5/16" | 2.667" | 3/4" | 2 1/4" | 5/8" | Reboreable | €121.06 | |
| C1 | S1240 | 3 1/2" | 14.5° | 5/8" to 1 1/2" | 3.333" | 3/4" | 2 1/2" | 5/8" | External Tooth Reborable | €133.72 | |
| B1 | S1234 | 3" | 14.5° | 5/8" to 1 5/16" | 2.833" | 3/4" | 2 1/4" | 5/8" | Reboreable | €122.58 | |
| D1 | TS1236 | 3.167" | 20° | 3/4" to 1 3/8" | 3" | 1" | 2 1/2" | 7/8" | External Tooth Reborable | €125.78 | |
| E1 | S1236 | 3.167" | 14.5° | 5/8" to 1 1/2" | 3" | 3/4" | 2 1/2" | 5/8" | External Tooth Reborable | €127.12 | |
| F1 | S1238 | 3.333" | 14.5° | 5/8" to 1 1/2" | 3.167" | 3/4" | 2 1/2" | 5/8" | External Tooth Reborable | €132.71 | |
| G1 | TS1242 | 3.666" | 20° | 3/4" to 1 3/8" | 3 1/2" | 1" | 2 1/2" | 7/8" | External Tooth Reborable | €136.80 | |
| H1 | S1242 | 3.666" | 14.5° | 5/8" to 1 1/2" | 3 1/2" | 3/4" | 2 1/2" | 5/8" | External Tooth Reborable | €138.27 | |
| I1 | S1244 | 3.833" | 14.5° | 5/8" to 1 1/2" | 3.667" | 3/4" | 2 1/2" | 5/8" | External Tooth Reborable | €167.14 | |
| J1 | TS1248 | 4.166" | 20° | 7/8" to 1 7/8" | 4" | 1" | 3" | 7/8" | External Tooth Reborable | €176.93 | |
| K1 | S1248 | 4.166" | 14.5° | 5/8" to 1 1/2" | 4" | 3/4" | 2 1/2" | 3/4" | External Tooth Reborable | €178.79 | |
| L1 | TS1254 | 4.666" | 20° | 7/8" to 2 1/8" | 4 1/2" | 1" | 3 1/2" | 7/8" | External Tooth Reborable | €188.45 | |
| M1 | S1254 | 4.667" | 14.5° | 3/4" to 1 3/4" | 4 1/2" | 3/4" | 2 3/4" | 3/4" | External Tooth Reborable | €177.75 | |
| N1 | S1256 | 4.833" | 14.5° | 3/4" to 1 3/4" | 4.667" | 3/4" | 2 3/4" | 3/4" | External Tooth Reborable | €182.93 | |
| O1 | S1264 | 5 1/2" | 14.5° | 3/4" to 1 3/4" | 5.333" | 3/4" | 2 3/4" | 3/4" | External Tooth Reborable | €209.88 | |
| P1 | TS1260 | 5.167" | - | - | - | - | - | - | - | €197.39 | |
| Q1 | S1260 | 5.167" | 14.5° | 3/4" to 1 3/4" | 5" | 3/4" | 2 3/4" | 3/4" | External Tooth Reborable | €199.47 | |
| B1 | TS1266 | 5.666" | 20° | 7/8" to 2 1/8" | 5 1/2" | 1" | 3 1/2" | 7/8" | Reboreable | €218.46 | |
| R1 | S1266 | 5.667" | 14.5° | 3/4" to 1 3/4" | 5 1/2" | 3/4" | 2 3/4" | 3/4" | External Tooth Reborable | €220.77 | |
| S1 | TS1272 | 6.166" | 20° | 7/8" to 2 1/8" | 6" | 1" | 3 1/2" | 7/8" | External Tooth Reborable | €229.21 | |
| T1 | S1272 | 6.166" | 14.5° | 3/4" to 1 3/4" | 6" | 3/4" | 2 3/4" | 3/4" | External Tooth Reborable | €231.64 |
