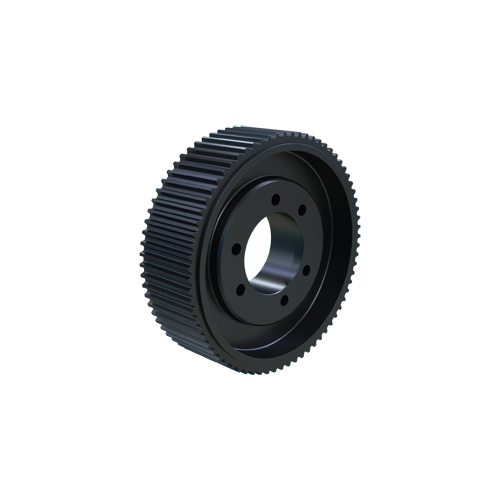

MARTIN SPROCKET P7214M85-F Sprocket, F Bushing, 4 Inch Max Bore, 72 Teeth, 12.632 Inch Pitch Dia., Cast Iron
Get it by Tuesday, Mar 3
€918.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Bore Diameter | 1" to 4" |
| Bore Type | QD Bushed |
| Bushing Type | F |
| Face Width | 4" |
| Flange Dia. | 13.187" |
| Length | 2 1/2" |
| Material | Cast Iron |
| No. Of Grooves | 72 |
| No. Of Teeth | 72 |
| O.d. | 12.522" |
| Pitch | 14 mm |
| Pitch Dia. | 12.632" |
| Type | Solid Type DF-2 |
Shipping Info:
| Ship weight (kg) | 27 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 31.8 |
| Ship width (cm) | 31.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Face Width | Type | Pitch | Bushing Type | Flange Dia. | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
P4814M170-E | - | 7 3/8" | Solid Type AF-1 | 0.55118" | E | 8.94" | QD Bushed | €866.71 | |
 |
P3614M55-SF | 6.316" | 2 3/4" | Solid Type AF-1 | 14 mm | SF | 6.812" | QD Bushed | €418.54 | |
|
P3814M115-SF | 6.667" | 5 1/4" | Solid Type AF-1 | 0.55118" | SF | 7.16" | QD Bushed | €573.97 | |
 |
P4014M85-SF | - | 4" | Solid Type AF-1 | 14 mm | SF | - | QD Bushed | €482.13 | |
 |
P14414M170-M | 25.264" | 7 3/8" | Spoked Type A-3 | 14 mm | M | - | QD Bushed | €3,013.35 | |
 |
P16814M170-M | 29.475" | 7 3/8" | Arms Type A-3 | 0.55118" | M | - | QD Bushed | €3,903.02 | |
|
P19214M170-M | 33.686" | 7 3/8" | Spoked Type A-3 | 14 mm | M | - | QD Bushed | €4,189.99 |
