MARTIN SPROCKET QD Bushed Type High Torque Sprockets, 14MM Belt Pitch
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1| Style | Model | Material | No. Of Teeth | Pitch Dia. | Pitch | Type | Bore Dia. | Face Width | No. Of Grooves | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | P19214M115-M | Cast Iron | 192 | 33.686" | 0.55118" | Arms Type D-3 | 2" to 5 1/2" | 5 1/4" | 192 | €3,214.24 | |
| B | P3414M40-SK | Cast Iron | 34 | 5.965" | 14 mm | Solid Type DF-1 | 1/2" to 2 5/8" | 2 1/8" | 34 | €351.55 | |
| C | P4414M85-E | Cast Iron | 44 | 7 18/25" | 14 mm | Solid Type AF-1 | 7/8" to 8 3/4" | 4" | 44 | €516.57 | |
| D | P4414M55-E | Cast Iron | 44 | 7 18/25" | 0.55118" | Solid Type DF-1 | 7/8" to 8 3/4" | 2 3/4" | 44 | €473.52 | |
| E | P4414M40-E | Cast Iron | 44 | 7 18/25" | 14 mm | Solid Type DF-1 | 7/8" to 8 3/4" | 2 1/8" | 44 | €444.82 | |
| D | P3814M115-SF | Cast Iron | 38 | 6.667" | 0.55118" | Solid Type AF-1 | 0.5" to 2.938" | 5 1/4" | 38 | €573.97 | |
| F | P3814M85-SF | Cast Iron | 38 | 6.667" | 14 mm | Solid Type AF-1 | 0.5" to 2.938" | 4" | 38 | €459.19 | |
| G | P3814M55-SF | Cast Iron | 38 | 6.667" | 14 mm | Solid Type AF-1 | 0.5" to 2.938" | 2 3/4" | 38 | €468.75 | |
| H | P3814M40-SF | Cast Iron | 38 | - | - | - | - | - | - | €435.27 | |
| D | P3414M115-SK | Cast Iron | 34 | 5.965" | 0.55118" | Solid Type AF-1 | 1/2" to 2 5/8" | 5 1/4" | 34 | €525.20 | |
| I | P3414M55-SK | Cast Iron | 34 | 5.965" | 14 mm | Solid Type AF-1 | 1/2" to 2 5/8" | 2 3/4" | 34 | €401.79 | |
| A | P19214M170-M | Cast Iron | 192 | 33.686" | 14 mm | Spoked Type A-3 | 2" to 5 1/2" | 7 3/8" | 192 | €4,189.99 | |
| J | P4414M170-E | Cast Iron | 44 | 7 18/25" | 0.55118" | Solid Type AF-1 | 7/8" to 8 3/4" | 7 3/8" | 44 | €860.96 | |
| A | P19214M55-F | Cast Iron | 192 | 33.686" | 14 mm | Spoked Type C-3 | 1" to 4" | 2 3/4" | 192 | €2,410.68 | |
| K | P14414M170-M | Cast Iron | 144 | 25.264" | 14 mm | Spoked Type A-3 | 2" to 5 1/2" | 7 3/8" | 144 | €3,013.35 | |
| A | P14414M115-J | Cast Iron | 144 | 25.264" | 0.55118" | Arms Type D-3 | 1 1/4" to 4 1/2" | 5 1/4" | 144 | €2,238.52 | |
| L | P14414M85-F | Cast Iron | 144 | 25.264" | 0.55118" | Arms Type D-3 | 1" to 4" | 4" | 144 | €1,693.21 | |
| A | P14414M55-F | Cast Iron | 144 | 25.264" | 14 mm | Spoked Type C-3 | 1" to 4" | 2 3/4" | 144 | €1,492.34 | |
| L | P14414M40-E | Cast Iron | 144 | 25.264" | 0.55118" | Arms Type D-3 | 7/8" to 8 3/4" | 2 1/8" | 144 | €1,377.53 | |
| M | P11214M170-M | Cast Iron | 112 | 19.65" | 0.55118" | Arms Type A-3 | 2" to 5 1/2" | 7 3/8" | 112 | €2,439.37 | |
| M | P11214M115-J | Cast Iron | 112 | 19.65" | 0.55118" | Arms Type D-3 | 1 1/4" to 4 1/2" | 5 1/4" | 112 | €1,779.32 | |
| M | P11214M85-F | Cast Iron | 112 | 19.65" | 0.55118" | Arms Type D-3 | 1" to 4" | 4" | 112 | €1,320.16 | |
| D | P4414M115-E | Cast Iron | 44 | 7 18/25" | 0.55118" | Solid Type AF-1 | 7/8" to 8 3/4" | 5 1/4" | 44 | €631.36 | |
| L | P16814M55-F | Cast Iron | 168 | 29.475" | 0.55118" | Arms Type C-3 | 1" to 4" | 2 3/4" | 168 | €1,922.81 | |
| N | P9014M170-J | Cast Iron | 90 | 15.79" | 0.55118" | Web Type A-2 | 1 1/4" to 4 1/2" | 7 3/8" | 90 | €1,750.62 | |
| D | P6014M40-E | Cast Iron | 60 | 10.527" | 0.55118" | Solid Type DF-1 | 7/8" to 8 3/4" | 1/4" | 60 | €651.46 | |
| D | P5214M55-E | Cast Iron | 48 | 8.421" | 0.55118" | Solid Type DF-1 | 7/8" to 8 3/4" | 2 3/4" | 48 | €510.84 | |
| O | P19214M85-J | Cast Iron | 192 | 33.686" | 14 mm | Spoked Type D-3 | 1 1/4" to 4 1/2" | 4" | 192 | €2,697.68 | |
| P | P6814M55-F | Cast Iron | 68 | 11.93" | 14 mm | Solid Type DF-2 | 1" to 4" | 2 3/4" | 68 | €817.93 | |

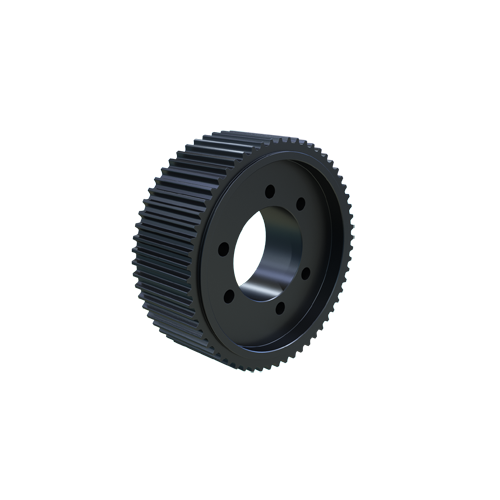

| Q | P6014M85-F | Cast Iron | 60 | 10.527" | 14 mm | Solid Type DF-1 | 1" to 4" | 4" | 60 | €832.26 | |
| L | P21614M85-J | Cast Iron | 216 | 37.896" | 0.55118" | Arms Type D-3 | 1 1/4" to 4 1/2" | 4" | 216 | €4,218.72 | |
| R | P21614M115-M | Cast Iron | 216 | 37.896" | 14 mm | Spoked Type D-3 | 2" to 5 1/2" | 5 1/4" | 216 | €4,850.07 | |
| S | P16814M115-M | Cast Iron | 168 | 29.475" | 14 mm | Spoked Type D-3 | 2" to 5 1/2" | 5 1/4" | 168 | €2,783.78 | |
| T | P5214M85-E | Cast Iron | 52 | 9.123" | 14 mm | Solid Type AF-1 | 7/8" to 8 3/4" | 4" | 52 | €631.36 | |
| U | P6814M40-E | Cast Iron | 68 | 11.93" | 0.55118" | Web Type DF-2 | 7/8" to 8 3/4" | 2 1/8" | 68 | €760.52 | |
| P | P5214M40-E | Cast Iron | 52 | 9.123" | 14 mm | Solid Type DF-1 | 7/8" to 8 3/4" | 2 1/8" | 52 | €493.60 | |
| L | P16814M85-J | Cast Iron | 168 | 29.475" | 0.55118" | Arms Type D-3 | 1 1/4" to 4 1/2" | 4" | 168 | €2,238.52 | |
| V | P21614M55-F | Cast Iron | 216 | 37.896" | 0.55118" | Arms Type C-3 | 1" to 4" | 2 3/4" | 216 | €3,891.53 | |
| W | P6814M170-J | Cast Iron | 68 | 11.93" | 0.55118" | Solid Type AF-1 | 1 1/4" to 4 1/2" | 7 3/8" | 68 | €1,406.24 | |
| X | P6814M115-J | Cast Iron | 68 | 11.93" | 14 mm | Solid Type DF-1 | 1 1/4" to 4 1/2" | 5 1/4" | 68 | €1,096.30 | |
| P | P6014M170-J | Cast Iron | 60 | 10.527" | 14 mm | Solid Type AF-1 | 1 1/4" to 4 1/2" | 7 3/8" | 60 | €1,234.04 | |
| Y | P6014M115-F | Cast Iron | 60 | 10.527" | 0.55118" | Solid Type AF-1 | 1" to 4" | 5 1/4" | 60 | €975.75 | |
| Z | P5214M170-F | Cast Iron | 52 | 9.123" | 0.55118" | Solid Type AF-1 | 1" to 4" | 7 3/8" | 52 | €918.36 | |
| D | P5214M115-F | Cast Iron | 52 | 9.123" | 0.55118" | Solid Type AF-1 | 1" to 4" | 5 1/4" | 52 | €789.23 | |
| A1 | P21614M170-M | Cast Iron | 216 | 37.896" | 0.55118" | Arms Type D-3 | 2" to 5 1/2" | 5 1/4" | 216 | €5,969.33 | |
| A | P16814M170-M | Cast Iron | 168 | 29.475" | 0.55118" | Arms Type A-3 | 2" to 5 1/2" | 7 3/8" | 168 | €3,903.02 | |
| B1 | P11214M55-F | Cast Iron | 112 | 19.65" | 14 mm | Spoked Type C-3 | 1" to 4" | 2 3/4" | 112 | €1,162.30 | |
| M | P11214M40-E | Cast Iron | 112 | 19.65" | 0.55118" | Arms Type D-3 | 7/8" to 8 3/4" | 2 1/8" | 112 | €1,047.49 | |
| C1 | P9014M115-J | Cast Iron | 90 | 15.79" | 0.55118" | Web Type D-2 | 1 1/4" to 4 1/2" | 5 1/4" | 90 | €1,434.94 | |
| D1 | P4814M55-E | Cast Iron | 48 | 8.421" | 14 mm | Solid Type DF-1 | 7/8" to 8 3/4" | 2 3/4" | 48 | €487.87 | |
| E1 | P5614M170-F | Cast Iron | 56 | 9.825" | 14 mm | Solid Type AF-1 | 1" to 4" | 7 3/8" | 56 | €947.06 | |
| F1 | P9014M85-F | Cast Iron | 90 | 15.79" | 14 mm | Type D-3 Web | 1" to 4" | 4" | 90 | €1,119.25 | |
| G1 | P5614M85-F | Cast Iron | 56 | 9.825" | 14 mm | Solid Type DF-1 | 1" to 4" | 4" | 56 | €703.11 | |
| H1 | P5614M55-E | Cast Iron | 56 | 9.825" | 14 mm | Solid Type DF-1 | 7/8" to 8 3/4" | 2 3/4" | 56 | €516.57 | |
| I1 | P5614M40-E | Cast Iron | 56 | 9.825" | 14 mm | Solid Type DF-1 | 7/8" to 8 3/4" | 2 1/8" | 56 | €502.23 | |
| D | P4814M170-E | Cast Iron | 48 | 8.421" | 0.55118" | Solid Type AF-1 | 7/8" to 8 3/4" | 7 3/8" | 48 | €866.71 | |
| D | P4814M115-E | Cast Iron | 48 | 8.421" | 0.55118" | Solid Type AF-1 | 7/8" to 8 3/4" | 5 1/4" | 48 | €677.29 | |

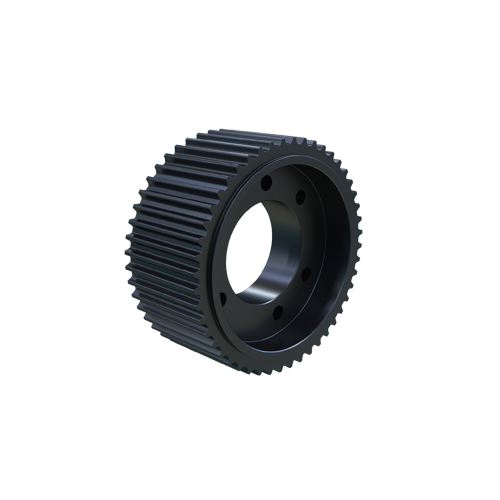

| J1 | P4814M85-E | Cast Iron | 48 | 8.421" | 14 mm | Solid Type AF-1 | 7/8" to 8 3/4" | 4" | 48 | €539.54 | |
| K1 | P4814M40-E | Cast Iron | 48 | 8.421" | 14 mm | Solid Type DF-1 | 7/8" to 8 3/4" | 2 1/8" | 48 | €473.52 | |
| D | P6414M55-F | Cast Iron | 64 | 11.229" | 0.55118" | Solid Type CF-1 | 1" to 4" | 2 3/4" | 64 | €789.23 | |
| D | P4014M115-SF | Cast Iron | 40 | 7.018" | 0.55118" | Solid Type AF-1 | 0.5" to 2.938" | 5 1/4" | 40 | €596.93 |
