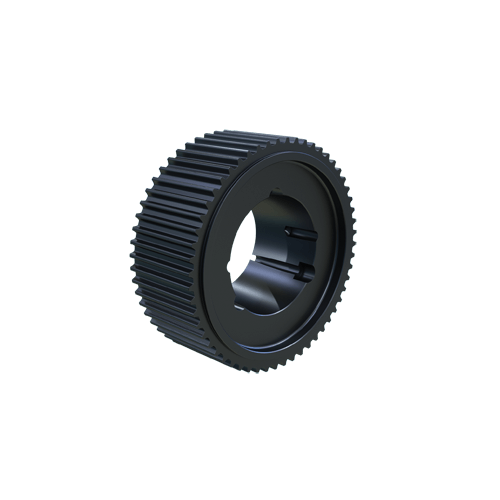

MARTIN SPROCKET P5614M85-3535 Sprocket, 3535 Bushing, 3.5 Inch Max Bore, 56 Teeth, 9.825 Inch Pitch Dia., Cast Iron
Get it by Tuesday, Sep 1
€793.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Bore Dia. | 1.188" to 3.5" |
| Bore Type | Taper Bushed |
| Bushing Type | 3535 |
| Face Width | 4" |
| Flange Dia. | 10.38" |
| Length | 4" |
| Material | Cast Iron |
| No. Of Grooves | 56 |
| No. Of Teeth | 56 |
| Outside Dia. | 9.718" |
| Pitch | 0.55118" |
| Pitch Dia. | 9.825" |
| Suitable For Use With | RPP, RPP Plus, Hawk Pd, HTD belts |
| Type | Solid Type KF-1 |
Shipping Info:
| Ship weight (kg) | 23.58 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | No. Of Teeth | Pitch Dia. | Pitch | Type | Bore Dia. | Face Width | No. Of Grooves | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P2814M40-2012 | Steel | 28 | 4.912" | 0.55118" | Solid Type KF-1 | 1/2" to 2" | 2 1/8" | 28 | €321.32 | |
 |
P2914M40-2012 | Steel | 29 | 5.088" | 0.55118" | Solid Type KF-1 | 1/2" to 2" | 2 1/8" | 29 | €340.23 | |
|
P3014M40-2012 | Steel | 30 | 5.263" | 0.55118" | Solid Type KF-1 | 1/2" to 2" | 2 1/8" | 30 | €351.57 | |
 |
P3214M40-2012 | Steel | 32 | 5.614" | 14 mm | Solid Type KF-1 | 1/2" to 2 1/8" | 2 1/8" | 32 | €385.59 | |
 |
P3414M40-2012 | Cast Iron | 34 | 5.965" | 14 mm | Solid Type KF-1 | 1/2" to 2 1/8" | 2 1/8" | 34 | €396.92 | |
 |
P3614M40-2517 | Cast Iron | 36 | 6.316" | 0.55118" | Solid Type KF-1 | 1/2" to 2 1/2" | 2 1/8" | 36 | €434.71 | |
 |
P3814M40-2517 | Cast Iron | 38 | 6.667" | 0.55118" | Solid Type KF-1 | 1/2" to 2 1/2" | 2 1/8" | 38 | €491.44 |
