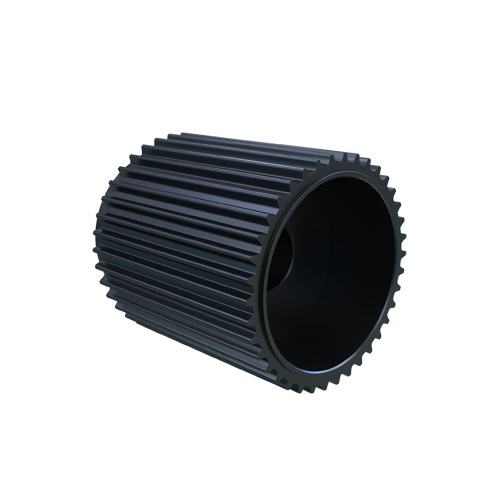

MARTIN SPROCKET P3820M230-MPB Sprocket, 38 Teeth, 9.524 Inch Pitch Dia., Cast Iron
Get it by Tuesday, Jul 14
€2,789.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Bore Dia. | 2.876" to 4.816" |
| Bore Type | Minimum Plain |
| Face Width | 9 22/25" |
| Flange Dia. | 10.433" |
| Hub Dia. | 7 1/2" |
| Hub Projection | 1 1/4" |
| Length | 11.13" |
| Material | Cast Iron |
| No. Of Grooves | 38 |
| No. Of Teeth | 38 |
| Outside Dia. | 9.357" |
| Pitch | 0.7874" |
| Pitch Dia. | 9.524" |
| Suitable For Use With | RPP, RPP Plus, Hawk Pd, HTD belts |
| Type | Solid Type DF-1 |
Shipping Info:
| Ship weight (kg) | 54 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Face Width | Hub Dia. | Flange Dia. | Bore Type | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

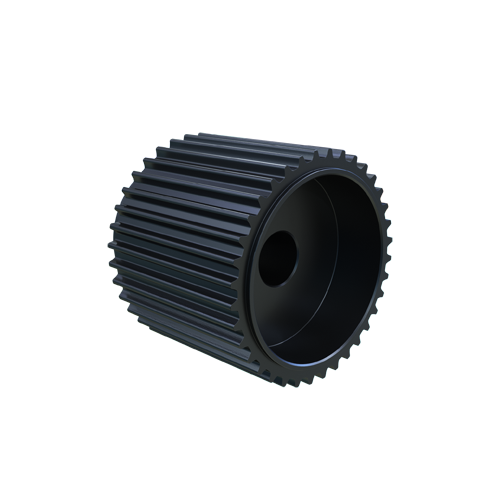

P3620M170-MPB | 2.125" to 4.066" | 9.023" | 8.856" | 7 1/2" | 7" | 9.843" | Minimum Plain | Solid Type DF-1 | €2,140.38 | |
 |

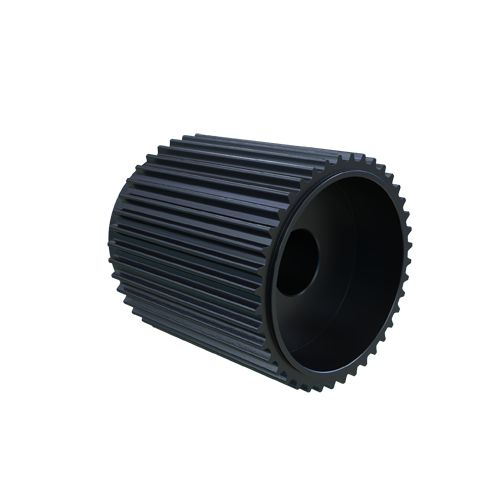

P4020M230-MPB | 2.876" to 5.254" | 10.026" | 9.859" | 9 22/25" | 8" | 10.827" | Minimum Plain | Solid Type DF-1 | €2,852.88 | |
 |
P4420M230-MPB | 2.875" to 5.566" | 11.028" | 10.861" | 9 22/25" | 8 1/4" | 11.811" | Minimum Plain | Solid Type DF-1 | €2,919.50 | |
 |

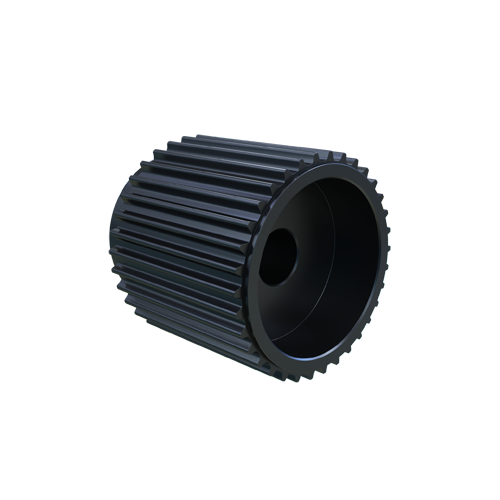

P3420M170-MPB | 2.125" to 4.129" | 8.522" | 8.356" | 7 1/2" | 6 1/2" | 9.449" | Minimum Plain | Solid Type DF-1 | €2,056.39 |
