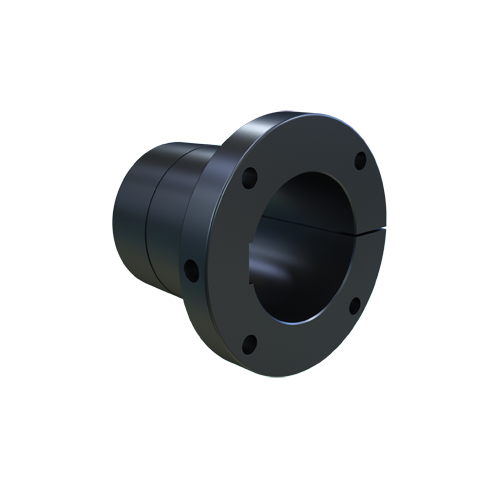

MARTIN SPROCKET M-STL 4 Quick Detachable Bushing, 4 Inch Bore, 1 x 1/2 Inch Key, 6.750 Inch Length, Steel
4"
Get it by Monday, Aug 31
€974.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 6 1/2" |
| Bolt Circle Dia. | 7 7/8" |
| Bore Dia. | 4" |
| Bore Size | 4" |
| Bushing Size | M-STL |
| Flange Dia. | 9" |
| Flange Thickness | 1 1/4" |
| Hub Dia. | 10" |
| Key Way Size | 1" x 1/2" |
| Length | 6 3/4" |
| Material | Steel |
| No. Of Bolt Holes | 4 |
| Screw Size | 3/4"-10 x 6 3/4" |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 19.76 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Bore Size | Key Way Size | Material | Type | Bolt Circle Dia. | No. Of Bolt Holes | Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M-STL 2 7/16 | 2 7/16" | 2 7/16" | 5/8" x 5/16" | Steel | Standard | 7 7/8" | 4 | 3/4"-10 x 6 3/4" | €974.72 | |
 |
M-STL 2 7/8 | 2 7/8" | 2 7/8" | 3/4" x 3/8" | Steel | Standard | 7 7/8" | 4 | 3/4"-10 x 6 3/4" | €974.72 | |
|
M-STL 3 1/8 | 3 1/8" | 3 1/8" | 7/8" x 7/16" | Steel | Standard | 7 7/8" | 4 | 3/4"-10 x 6 3/4" | €974.72 | |
 |
M-STL 3 3/8 | 3 3/8" | 3 3/8" | 7/8" x 7/16" | Steel | Standard | 7 7/8" | 4 | 3/4"-10 x 6 3/4" | €974.72 | |
 |
M-STL 3 7/16 | 3 7/16" | 3 7/16" | 7/8" x 7/16" | Steel | Standard | 7 7/8" | 4 | 3/4"-10 x 6 3/4" | €974.72 | |
 |
M-STL 3 1/2 | 3 1/2" | 3 1/2" | 7/8" x 7/16" | Steel | Standard | 7 7/8" | 4 | 3/4"-10 x 6 3/4" | €974.72 | |
 |
M-STL 3 5/8 | 3 5/8" | 3 5/8" | 7/8" x 7/16" | Steel | Standard | 7 7/8" | 4 | 3/4"-10 x 6 3/4" | €974.72 |
