WEG 07589EP3PCT404VF1-W2 Electric Motor, 75/18.5Hp, 60Hz, 900/1800 Rpm | BB6XED

WEG 07589EP3PCT404VF1-W2 12180338 Electric Motor, 75/18.5Hp, 60Hz, 900/1800 Rpm

Item: BB6XEDModel: 07589EP3PCT404VF1-W2Cross Ref: 12180338
Check Availability
In Stock

Get it by Thursday, Dec 18

€16,548.40 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Cooling Tower Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Bearing Cap Yes
Break-down Torque 280%
Cold Locked Rotor Time 14 sec.
Connection Cables Quantity 6
Drain Automatic, Rubber
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 87%
Efficiency At 50 % 74%
Efficiency At 75 % 82%
Enclosure Totally Enclosed Fan Cooled
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Without
Frame 404/5T
Frame Material Cast Iron
Grounding Lugs Double
Hot Locked Rotor Time 8 sec.
Hz 60 Hz
Impregnation Method Constant Resin Flow
Insulation Class Class F
Joints Seal Permatex
L. R. Amps 1570A
Locked Rotor Torque 240%
Lrc 8.0X(Code J)
Main Terminal Box Hole Size 3"
Main Terminal Box Hole Type NPT
Moment Of Inertia 27.4 lbs.-sq. ft.
Mounting Foot Mounted
No Load Amps 73.6A
No. Of Poles 4, 8
Noise Level 71 dBA
Output Hp 75 hp
Output Power 55 kW
Output Rating 18 1/2 hp, 75 hp
Overload Protector Without Overload Protector
Painting RAL 5009 202E (ISO 12944 - C4)
Phase 3
Power Factor At 1 % 93
Power Factor At 50 % 91.7
Power Factor At 75 % 92.4
Rated Current 196A
Rated Speed 1780 RPM
Rated Torque 221 lbs.-ft.
Rated Voltage 200V AC
Rotation CW/CCW
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Slip 1.11%
Space Heater Voltage 110-127/200-240V AC
Starting Method Direct On Line
Synchronous Speed 900/1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Complete (200H)
Voltage 200V AC

Shipping Info:

Ship weight (kg) 560.25
Ship height (cm)72.12
Ship length (cm)104.43
Ship width (cm)63
Country of OriginUS

Product Variants

ProductModelVoltageFrameRpmEnclosureHpService FactorDuty CycleNo Load AmpsPrice
WEG 00526EP3QCT254VF1-W2 Electric Motor, 5/1.25Hp, 60Hz, 600/1200 Rpm | BB2HVD 00526EP3QCT254VF1-W2460V254/6T600/1200 RPMTotally Enclosed Fan Cooled5 hp1.15Continuous2.3A€2,819.72
WEG 05089EP3PCT364VF1-W2 Electric Motor, 50/12.5Hp, 60Hz, 900/1800 Rpm | BB2KMU 05089EP3PCT364VF1-W2200V AC364/5T900/1800 RPMTotally Enclosed Fan Cooled-1.15S170.6A€8,754.63
WEG 10089EP3QCT444VF1-W2 Electric Motor, 100/25Hp, 60Hz, 900/1800 Rpm | BB2TXT 10089EP3QCT444VF1-W2460V AC444/5T900/1800 RPMIC411-1.15S139A€19,074.96

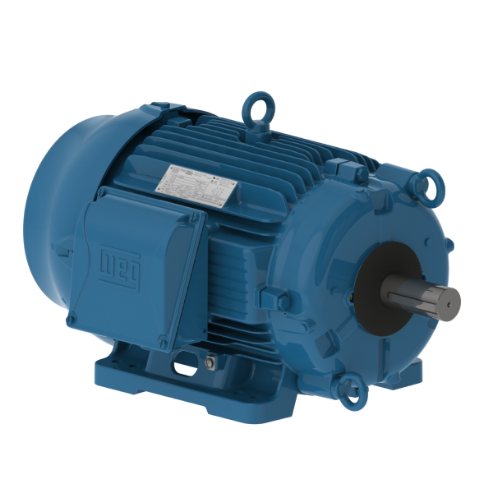

WEG 01589EP3HCT254VF1-W2 Electric Motor, 15/3.75Hp, 60Hz, 900/1800 Rpm | BB2XAR 01589EP3HCT254VF1-W2575V254T1800/900 RPMTotally Enclosed Fan Cooled-1.15Continuous6.56A€2,973.31
WEG 00789EP3PCT254V2F1-W Electric Motor, 7.5/1.75Hp, 60Hz, 900/1800 Rpm | BB2XQE 00789EP3PCT254V2F1-W200V AC254T900/1800 RPMTotally Enclosed Fan Cooled-1.15S18.17A€3,246.11
WEG 05089EP3QCT364VF1-W2 Electric Motor, 50/12.5Hp, 60Hz, 900/1800 Rpm | BB3BJG 05089EP3QCT364VF1-W2460V AC364/5T900/1800 RPMTotally Enclosed Fan Cooled-1.15S130.7A€8,621.57
WEG 00789EP3QCT213VF1-W2 Electric Motor, 7.5/1.75Hp, 60Hz, 900/1800 Rpm | BB3FWX 00789EP3QCT213VF1-W2460V AC213T900/1800 RPMTotally Enclosed Fan Cooled-1.15S14.5A€1,932.88
