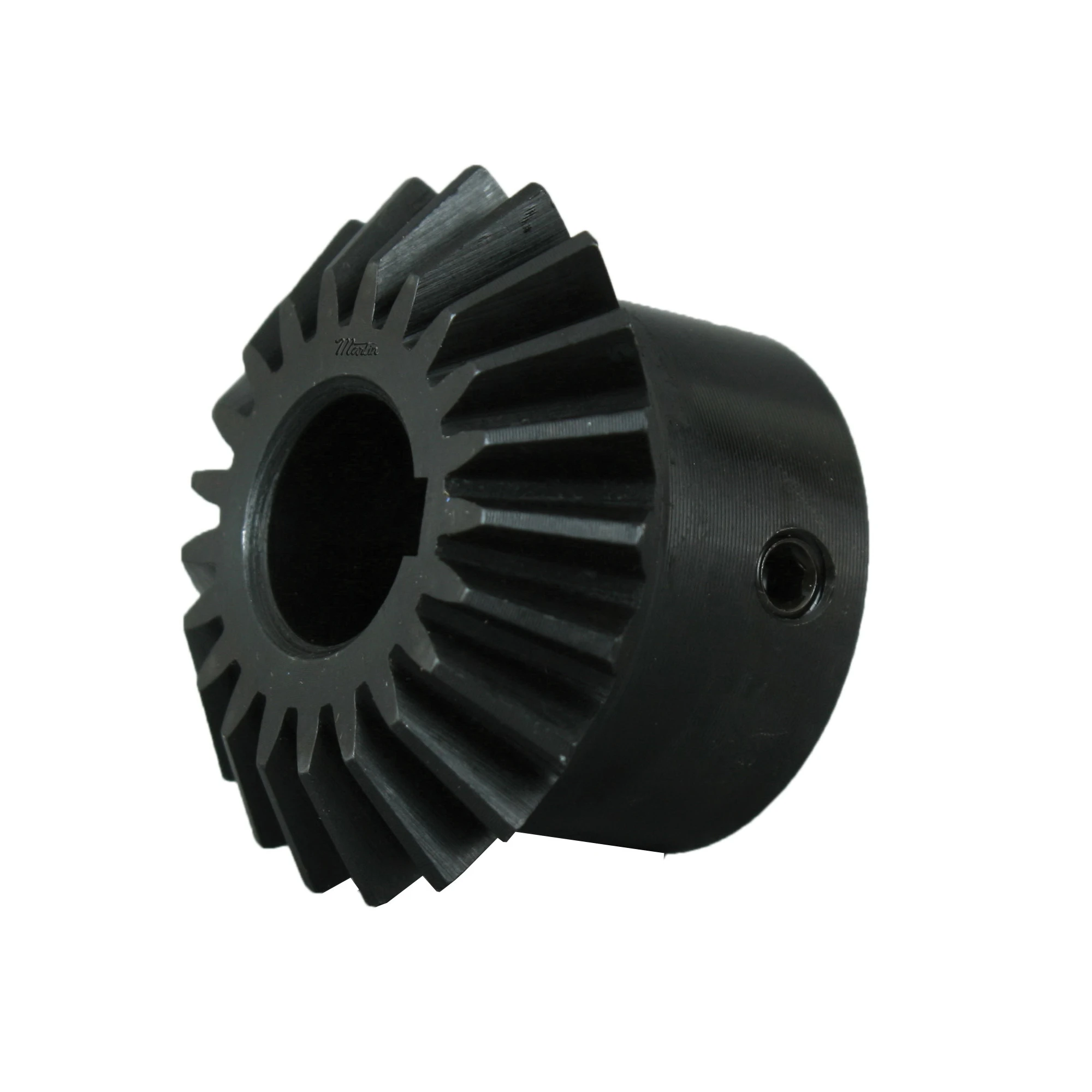

MARTIN SPROCKET HMK1221B Miter Gear, 12 Diametral Pitch, 1.750 Inch Pitch Dia., Bore To Size, Steel
Item: AK2XQUModel: HMK1221B
7 In Stock
Ships within 2 days via
€129.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miter Gears |
| Bore Dia. | 5/8" |
| Diametral Pitch | 12 |
| Direction Of Rotation | Right Angle |
| Face Width | 0.39" |
| Gear Ratio | 1:1 |
| Hub Dia. | 1 3/8" |
| Hub Projection | 0.688" |
| Hub Type | Hub With Set Screw |
| Key Way Size | 3/16" x 3/32" |
| Length | 1 3/16" |
| Material | Carbon Steel |
| No. Of Teeth | 21 |
| Pitch Dia. | 1 3/4" |
| Pressure Angle | 20° |
| Product Datasheet | martin-sprocket-hm1025.pdf |
| Series | HMK Series |
| Type | Bored to Size |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 4.75 |
| Ship width (cm) | 4.75 |
| Country of Origin | US |
