MARTIN SPROCKET HM828A Miter Gear, 28 Teeth, 3.5 Inch Pitch Dia., 1.439 Inch Bore, Steel
Item: AK3BPNModel: HM828A
7 In Stock
Ships within 2 days via
€370.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miter Gears |
| Bore Dia. | 1.1875" to 1.439" |
| Diametral Pitch | 8 |
| Direction Of Rotation | Right Angle |
| Face Width | 3/4" |
| Gear Ratio | 1:1 |
| Hub Dia. | 2 1/2" |
| Hub Projection | 1 1/4" |
| Hub Type | No Screws |
| Length | 2 3/32" |
| Material | Carbon Steel |
| No. Of Teeth | 28 |
| Outside Dia. | 3.677" |
| Pitch Dia. | 3 1/2" |
| Pressure Angle | 20° |
| Product Datasheet | martin-sprocket-hm1025.pdf |
| Series | HM Series |
| Type | Plain Reborable |
Shipping Info:
| Ship weight (kg) | 1.25 |
| Ship height (cm) | 5.31 |
| Ship length (cm) | 9.35 |
| Ship width (cm) | 9.35 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Face Width | Outside Dia. | Hub Dia. | Hub Projection | Material | Diametral Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
HM824 | 0.75" to 0.9385" | 3" | 16/25" | 3.177" | 1 3/4" | 0.813" | Carbon Steel | 8 | €215.55 | |
 |

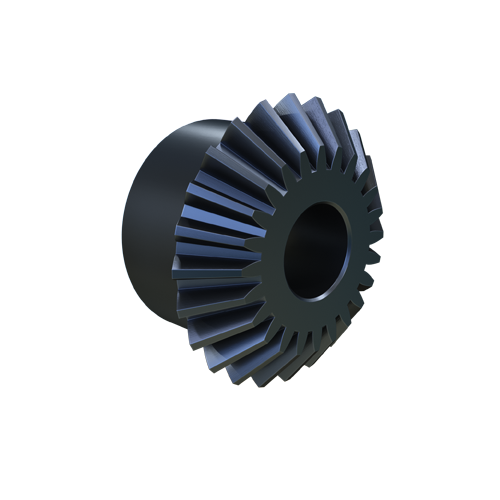

HM824A | 1" to 1.439" | 3" | 16/25" | 3.177" | 2 1/2" | 1" | Steel | 8 | €215.55 | |
 |

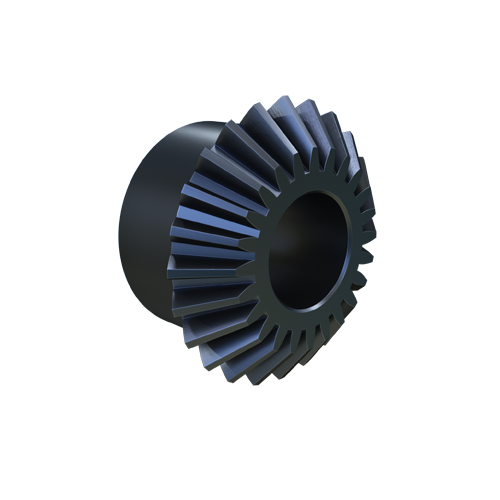

HM824B | 1.25" to 1.439" | 3" | 16/25" | 3.177" | 2 1/2" | 1" | Carbon Steel | 8 | €215.55 | |
 |

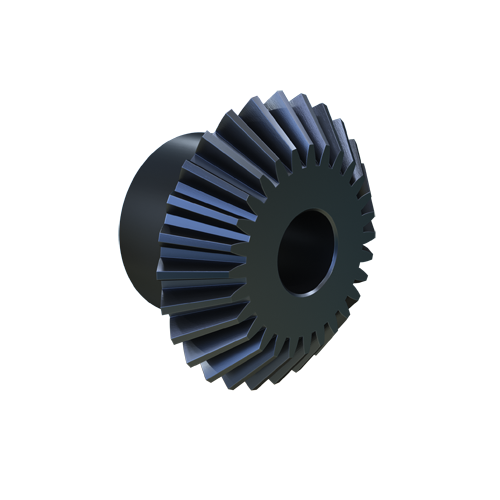

HM828 | 1" to 1.439" | 3 1/2" | 3/4" | 3.677" | 2 1/2" | 1 1/4" | Steel | 8 | €370.59 | |
 |

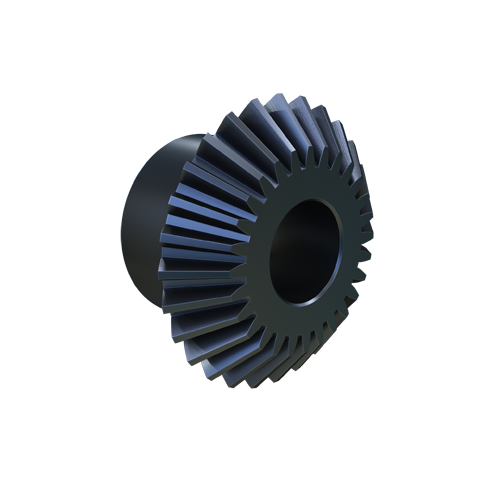

HM828B | 1.25" to 1.439" | 3 1/2" | 3/4" | 3.677" | 2 1/2" | 1 1/4" | Steel | 8 | €370.59 | |
|
HM832 | 1" to 1.8145" | 4" | 0.85" | 4.177" | 3" | 1 1/8" | Carbon Steel | 8 | €436.31 |
