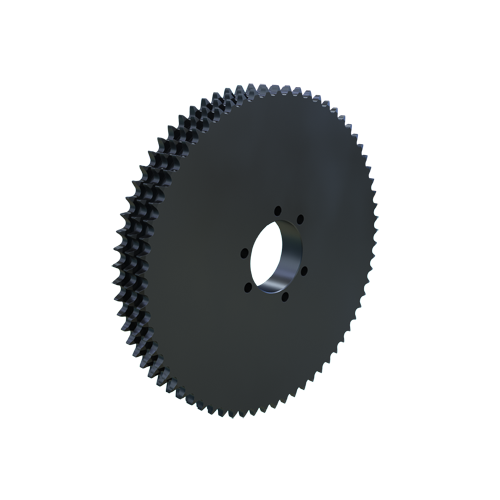

MARTIN SPROCKET E50SF68 Sprocket, QD, 50 Chain, 68 Teeth, 13.533 Inch Pitch Dia., 13.894 Inch O.D., Steel
Get it by Tuesday, Aug 25
€749.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.5" to 2.938" |
| Bore Type | Bushed |
| Bushing Part Number | SF |
| Bushing Size | SF |
| Bushing Type | QD SF |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | #50 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | A |
| Hub Dia. | 4 5/8" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1.753" |
| Material | Steel |
| Max. Bore Size | 2 15/16" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 3 |
| No. Of Teeth | 68 |
| Outside Dia. | 13.894" |
| Pitch | 5/8" |
| Pitch Dia. | 13.533" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.332" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 13.894" |
| Storage Dimension Width | 13.894" |
| Type | Type B Triple Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 18.62 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 35.28 |
| Ship width (cm) | 35.28 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Max. Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E50SF102 | 20.2955" | 102 | 4 5/8" | 2 15/16" | 50 | 20.661" | 20.661" | 2 15/16" | €1,197.90 | |
 |
E50SF95 | 18.9031" | 95 | 4 5/8" | 0.5" to 2.938" | #50 | 19.268" | 19.268" | 2 15/16" | €1,109.52 | |
 |
E50SF84 | 16.715" | 84 | 4 5/8" | 0.5" to 2.938" | #50 | 17.078" | 17.078" | 2 15/16" | €967.09 | |
 |
E50SK42 | 8.3634" | 42 | 3 7/8" | 1/2" to 2 5/8" | #50 | 8.715" | 8.715" | 2 5/8" | €459.91 | |
 |
E50SF60 | 11.942" | 60 | 4 5/8" | 0.5" to 2.938" | #50 | 12.301" | 12.301" | 2 15/16" | €688.05 | |
 |
E50SF52 | 10.3514" | 52 | 4 5/8" | 0.5" to 2.938" | #50 | 10.707" | 10.707" | 2 15/16" | €618.94 | |
 |
E50SF72 | 14.329" | 72 | 4 5/8" | 0.5" to 2.938" | #50 | 14.69" | 14.69" | 2 15/16" | €800.81 |
