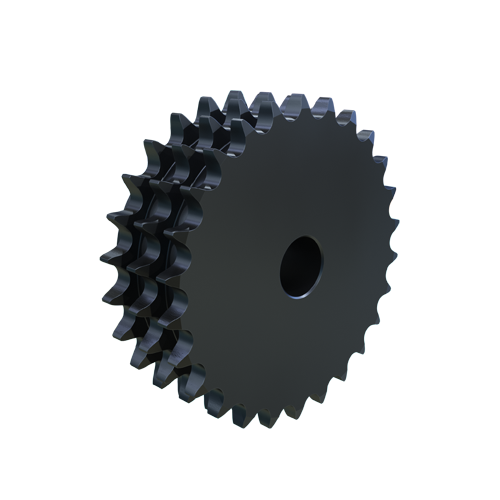

MARTIN SPROCKET E50B26 Sprocket, Stock Bore, 50 Chain, 26 Teeth, 5.185 Inch Pitch Dia., 5.522 Inch O.D., Steel
5.522"
Get it by Friday, Aug 21
€220.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1" to 2 1/2" |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | #50 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Dia. | 3 3/4" |
| Hub Outside Dia. | 3 3/4" |
| Individually Packaged | No |
| Length Through Bore | 2 5/8" |
| Length Thru Bore | 2 5/8" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1" |
| No. Of Chain Rows | 3 |
| No. Of Teeth | 26 |
| Outside Dia. | 5.522" |
| Pitch | 5/8" |
| Pitch Dia. | 5.185" , 5.1851" |
| Single Strand Tooth Thickness | 0.332" |
| Storage Dimension Height | 2 5/8" |
| Storage Dimension Length | 5.522" |
| Storage Dimension Width | 5.522" |
| Type | Type B Triple Strand Solid Reboreable |
Shipping Info:
| Ship weight (kg) | 5.01 |
| Ship height (cm) | 6.67 |
| Ship length (cm) | 14.02 |
| Ship width (cm) | 14.02 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E50B11H | 2.218" | 11 | 2 1/2" | 1.469" | 5/8" to 15/16" | #50 | 2 7/8" | 2 7/8" | €167.83 | |
 |
E50B12H | 2.415" | 12 | 2 1/2" | 1.688" | 5/8" to 1 1/8" | #50 | 2 7/8" | 2 7/8" | €168.86 | |
|
E50B13H | 2.612" | 13 | 2 1/2" | 1 7/8" | 5/8" to 1 5/16" | #50 | 2.911" | 2.911" | €172.44 | |
 |
E50B14H | 2.809" | 14 | 2 1/2" | 2.063" | 5/8" to 1 3/8" | #50 | 3.113" | 3.113" | €172.98 | |
|
E50B15H | 3.006" | 15 | 2 1/2" | 2.275" | 3/4" to 1 1/2" | #50 | 3.315" | 3.315" | €174.01 | |
 |
E50B16H | 3.204" | 16 | 2 1/2" | 2.477" | 3/4" to 1 3/4" | #50 | 3.517" | 3.517" | €185.10 | |
|
E50B17H | 3.401" | 17 | 2 1/2" | 2.688" | 3/4" to 1 7/8" | #50 | 3.718" | 3.718" | €190.23 |
