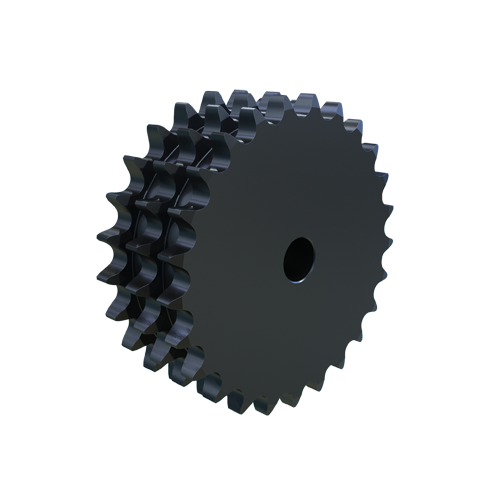

MARTIN SPROCKET E16B25 Sprocket, 16B-3 Chain, 25 Teeth, 202.660 mm Pitch Dia., 218.535 mm O.D., Steel
Get it by Tuesday, Jul 7
€1,138.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 30 mm to 91 mm |
| Chain Size | #16B-3 |
| Hub Dia. | 129.997 mm |
| Length Through Bore | 100 mm |
| Material | High Carbon Steel |
| No. Of Teeth | 25 |
| Outside Dia. | 218.535 mm |
| Pitch | 25.4 mm |
| Pitch Dia. | 202.66 mm |
| Product Datasheet | martin-sprocket-06a15.pdf |
| Type | Type B Solid Stock Bore Triple Strand |
Shipping Info:
| Ship weight (kg) | 19.04 |
| Ship height (cm) | 10.01 |
| Ship length (cm) | 21.84 |
| Ship width (cm) | 21.84 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
E16B15 | 25 mm to 67 mm | 122.167 mm | 138.042 mm | 96.012 mm | 100 mm | 25.4 mm | €640.30 | |
 |
E16B17 | 30 mm to 77 mm | 138.232 mm | 154.107 mm | 109.55 mm | 100 mm | 25.4 mm | €671.49 | |
 |
E16B19 | 30 mm to 72 mm | 154.319 mm | 170.194 mm | 102.591 mm | 100 mm | 25.4 mm | €812.80 | |
 |
E16B20 | 30 mm to 73 mm | 162.368 mm | 178.243 mm | 104.597 mm | 100 mm | 25.4 mm | €772.59 | |
 |
E16B21 | 30 mm to 91 mm | 170.421 mm | 186.296 mm | 129.997 mm | 100 mm | 25.4 mm | €809.86 | |
 |
E16B13 | 25 mm to 56 mm | 106.136 mm | 122.011 mm | 80.01 mm | 100 mm | 25.4 mm | €556.78 | |
 |
E16B24 | 30 mm to 92 mm | 194.597 mm | 210.472 mm | 131.775 mm | 100 mm | 25.4 mm | €1,082.50 |
