MARTIN SPROCKET DS80Q20H Sprocket, 80 Chain, 20 Teeth, 6.392 Inch Pitch Dia., 6.910 Inch O.D., Steel
Get it by Tuesday, Sep 1
€613.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.75" to 2.688" |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Bushing Type | Type Q1 Split Taper |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | 80 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hardened Teeth | 1 |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 2 3/16" |
| Length Thru Bore | 2.188" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 20 |
| Outside Dia. | 6.91" |
| Pitch | 1" |
| Pitch Dia. | 6.392" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 2.188" |
| Storage Dimension Length | 6.91" |
| Storage Dimension Width | 6.91" |
| Type | Double Single MST Q1 Bushed Solid Type B |
Shipping Info:
| Ship weight (kg) | 5.49 |
| Ship height (cm) | 5.56 |
| Ship length (cm) | 17.55 |
| Ship width (cm) | 17.55 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Min. Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

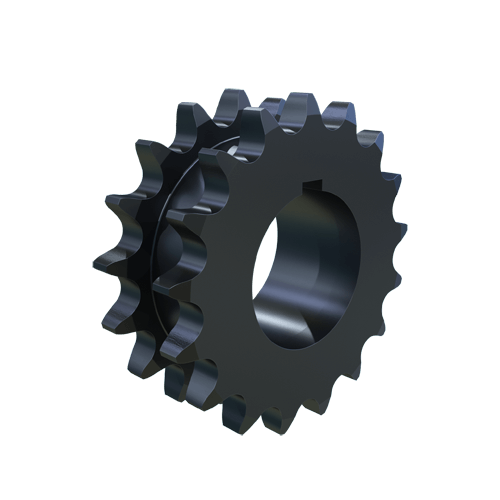

DS80Q17H | 5.442" | 17 | 2 3/16" | 5 1/2" | 5 1/2" | 2 1/16" | 2.188" | 3/4" | €573.69 | |
 |
DS80Q19H | 6.076" | 19 | 2.188" | 6.59" | 6.59" | 2.188" | 2.188" | 3/4" | €683.76 | |
 |
DS80R21H | 6.71" | 21 | 2 3/16" | 7.23" | 7.23" | 2.188" | 2 3/16" | 1 1/8" | €602.64 | |
 |
DS80R23H | 7.344" | 23 | 2.188" | 7 22/25" | 7 22/25" | 2.188" | 2.188" | 1 1/8" | €537.47 |
