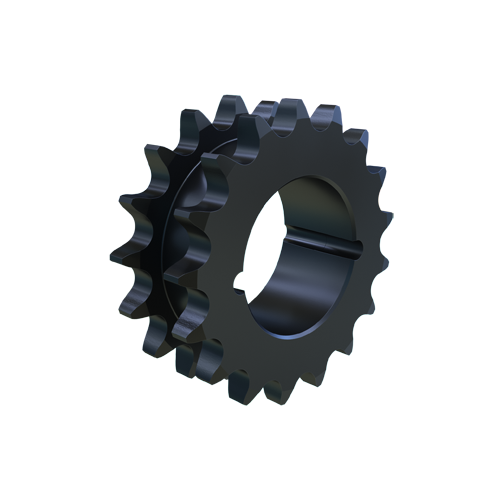

MARTIN SPROCKET DS80ATB17H Sprocket, Taper, 80 Chain, 17 Teeth, 5.442 Inch Pitch Dia., 5.950 Inch O.D., Steel
Item: AZ9HJVModel: DS80ATB17H
7 In Stock
Ships within 2 days via
€484.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" to 20 1/2" |
| Bore Type | Bushed |
| Bushing Part No. | 2517 |
| Bushing Type | 2517 Taper Lock |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | 80 |
| Construction Type | Solid |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | A |
| Hub Dia. | 4 5/16" |
| Length Through Bore | 2 3/16" |
| Length Thru Bore | 2.188" |
| Material | Steel |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 17 |
| Outside Dia. | 5.95" |
| Pitch | 1" |
| Pitch Dia. | 5.442" , 5.4422" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Length | 5.95" |
| Storage Dimension Width | 5.95" |
| Type | Double Single TB Bushed Solid Type A |
Shipping Info:
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 5.56 |
| Ship length (cm) | 15.11 |
| Ship width (cm) | 15.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

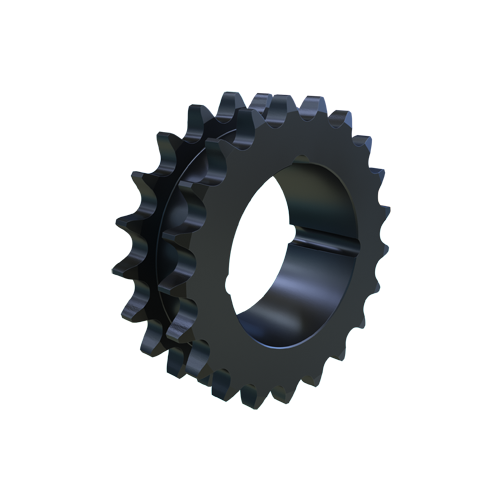

DS80ATB21H | 6.7095" | 21 | 5.593" | 0.938" to 3" | #80 | 7.235" | 7.235" | 2.188" | €586.10 | |
 |

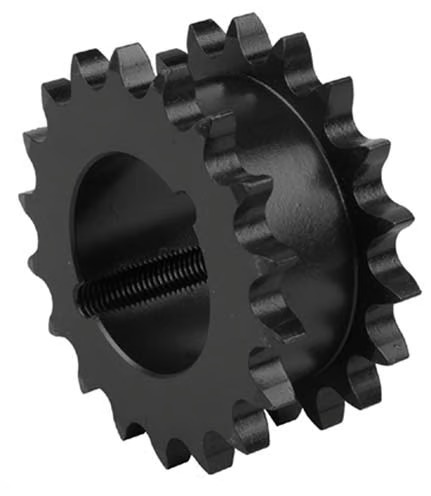

DS80ATB18H | 5.759" | 18 | 4 3/4" | 1/2" to 20 1/2" | 80 | 6.271" | 6.271" | 2.188" | €508.19 | |
 |

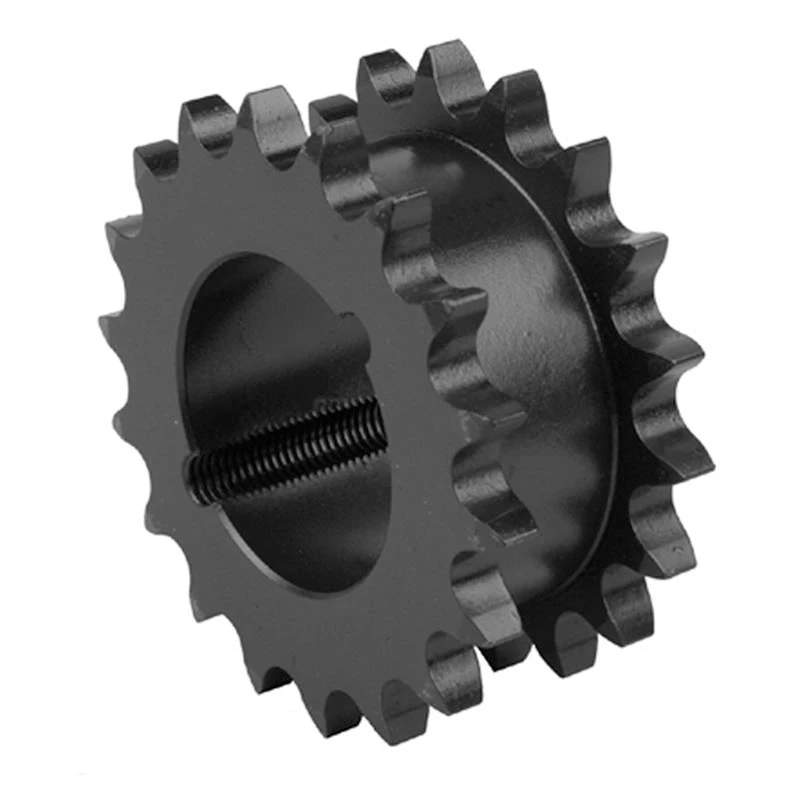

DS80ATB19H | 6.0755" | 19 | 4.953" | 0.938" to 3" | #80 | 6.593" | 6.593" | 2.188" | €538.93 | |
 |

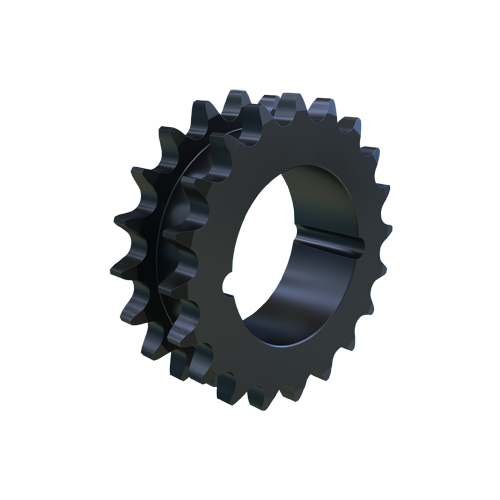

DS80ATB20H | 6.3925" | 20 | 5.281" | 0.938" to 3" | #80 | 6.914" | 6.914" | 2.188" | €565.85 | |
 |

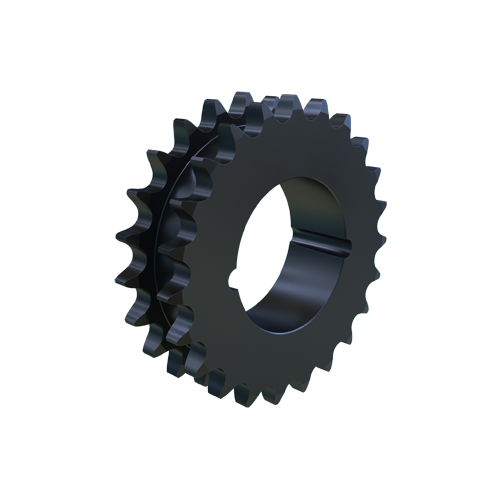

DS80ATB23H | 7.3439" | 23 | 6.234" | 0.938" to 3" | #80 | 7.876" | 7.876" | 2.188" | €519.94 | |
 |

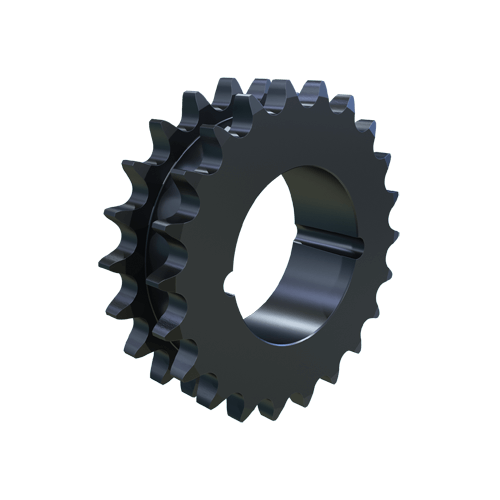

DS80ATB22H | 7.0267" | 22 | 5.918" | 0.938" to 3" | #80 | 7.555" | 7.555" | 2 3/16" | €527.05 |
