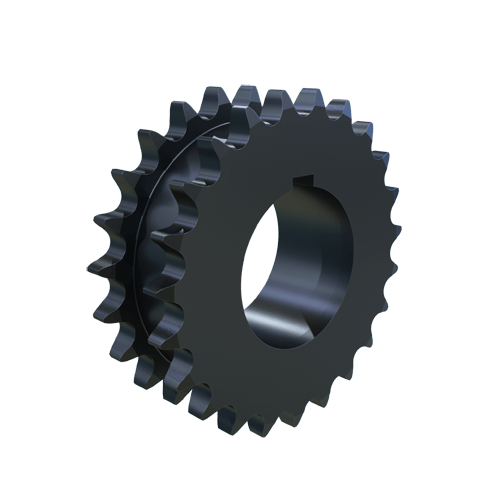

MARTIN SPROCKET DS60Q23H Sprocket, 60 Chain, 23 Teeth, 5.508 Inch Pitch Dia., 5.910 Inch O.D., Steel
Item: AL7DHDModel: DS60Q23H
7 In Stock
Ships within 2 days via
€465.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Bushing Type | Type Q1 Split Taper |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | 60 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | A |
| Individually Packaged | No |
| Key Way Size | 0.5" x 3.002" |
| Length Through Bore | 1.938" |
| Length Thru Bore | 1.938" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 23 |
| Outside Dia. | 5.91" |
| Pitch | 3/4" |
| Pitch Dia. | 5.508" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1.94" |
| Storage Dimension Length | 5.91" |
| Storage Dimension Width | 5.91" |
| Type | MST Bushed Type B |
Shipping Info:
| Ship weight (kg) | 3.26 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 15.01 |
| Ship width (cm) | 15.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Min. Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

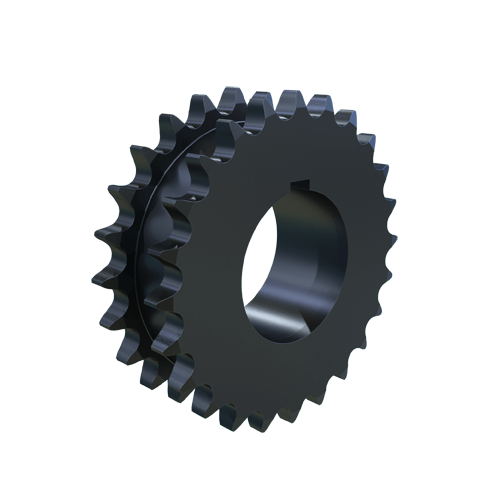

DS60Q24H | 5.746" | 24 | 1 15/16" | 6.15" | 6.15" | 1.94" | 1.938" | 3/4" | €476.91 | |
 |
DS60P17H | 4.002" | 17 | 1.938" | 5" | 5" | 2" | 1 5/16" | 1/2" | €373.74 | |
 |

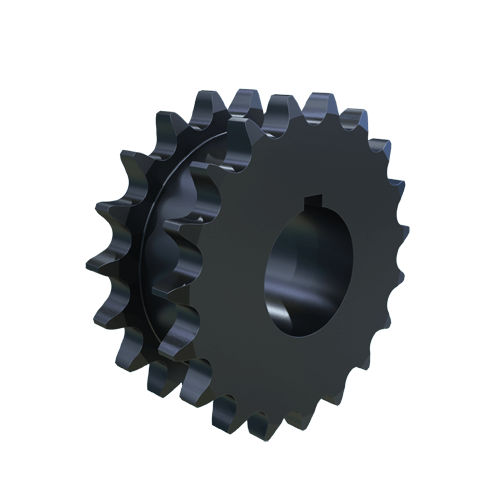

DS60P19H | 4.557" | 19 | 1.938" | 5" | 5" | 2" | 1 5/16" | 1/2" | €461.59 | |
 |
DS60Q21H | 5.032" | 21 | 1 15/16" | 4 3/16" | 4 3/16" | 1 11/16" | 1.938" | 3/4" | €454.58 | |
 |
DS60Q22H | 5.27" | 22 | 1.938" | 5.67" | 5.67" | 1.94" | 1.938" | 3/4" | €462.01 |
