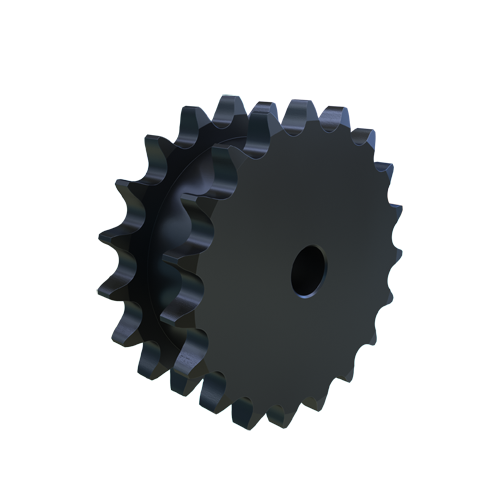

MARTIN SPROCKET DS60A19 Sprocket, Stock Bore, 60 Chain, 19 Teeth, 4.557 Inch Pitch Dia., 4.945 Inch O.D., Steel
Item: BA4TBUModel: DS60A19
7 In Stock
Ships within 2 days via
€290.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 3/4" to 2 1/16" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | A |
| Hub Dia. | 3.7031" |
| Individually Packaged | Yes |
| Length Through Bore | 1 15/16" |
| Length Thru Bore | 1.938" |
| Material | Steel |
| Max. Bore Size | 2.063" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 19 |
| Outside Dia. | 4.945" |
| Pitch | 3/4" |
| Pitch Dia. | 4.5567" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 15/16" |
| Storage Dimension Length | 4.945" |
| Storage Dimension Width | 4.945" |
| Type | Type A Double Single Strand Reboreable |
Shipping Info:
| Ship weight (kg) | 3.01 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 12.57 |
| Ship width (cm) | 12.57 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DS60A22 | 5.27" | 22 | 1 15/16" | 3/4" to 2 1/2" | #60 | 5.666" | 5.666" | 1 15/16" | €312.77 | |
 |
DS60A18 | 4.3191" | 18 | 1 15/16" | 3/4" to 1 7/8" | #60 | 4.703" | 4.703" | 1 15/16" | €247.07 | |
 |
DS60A20 | 4.794" | 20 | 1.938" | 3/4" to 2 1/4" | 60 | 5.185" | 5.185" | 1 15/16" | €303.31 | |
 |
DS60A16 | 3.844" | 16 | 1.938" | 0.75" to 1.688" | 60 | 4 5/8" | 4 5/8" | 2 1/8" | €218.94 | |
 |
DS60A17 | 4.082" | 17 | 1.938" | 3/4" to 1 3/4" | 60 | 4 5/8" | 4 5/8" | 2 1/8" | €231.29 | |
 |
DS60A15 | 3.607" | 15 | 1.938" | 3/4" to 1 1/4" | 60 | 4 5/16" | 4 5/16" | 1 15/16" | €203.30 | |
 |
DS60A21 | 5.0321" | 21 | 1 15/16" | 3/4" to 2 3/4" | #80 | 5.426" | 5.426" | 1 15/16" | €309.47 |
