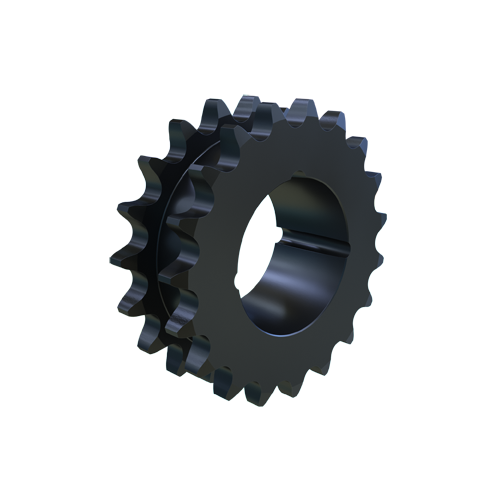

MARTIN SPROCKET DS100ATB19H Sprocket, Taper, 100 Chain, 19 Teeth, 7.594 Inch Pitch Dia., 8.241 Inch O.D., Steel
Get it by Friday, Aug 28
€707.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.938" to 3" |
| Bore Type | Bushed |
| Bushing Part Number | 3020 |
| Bushing Type | TB 3020 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | #100 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hardened Teeth | 1 |
| Hub Configuration | A |
| Hub Dia. | 6.832" |
| Individually Packaged | No |
| Length Through Bore | 2 11/16" , 2.688" |
| Material | Steel |
| Max. Bore Size | 3" |
| Min. Bore Size | 15/16" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 19 |
| Outside Dia. | 8.241" |
| Pitch | 1 1/4" |
| Pitch Dia. | 7.5944" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 2 11/16" |
| Storage Dimension Length | 8.241" |
| Storage Dimension Width | 8.241" |
| Type | Type A Double Single Strand Bushed |
Shipping Info:
| Ship weight (kg) | 7.88 |
| Ship height (cm) | 6.83 |
| Ship length (cm) | 20.93 |
| Ship width (cm) | 20.93 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

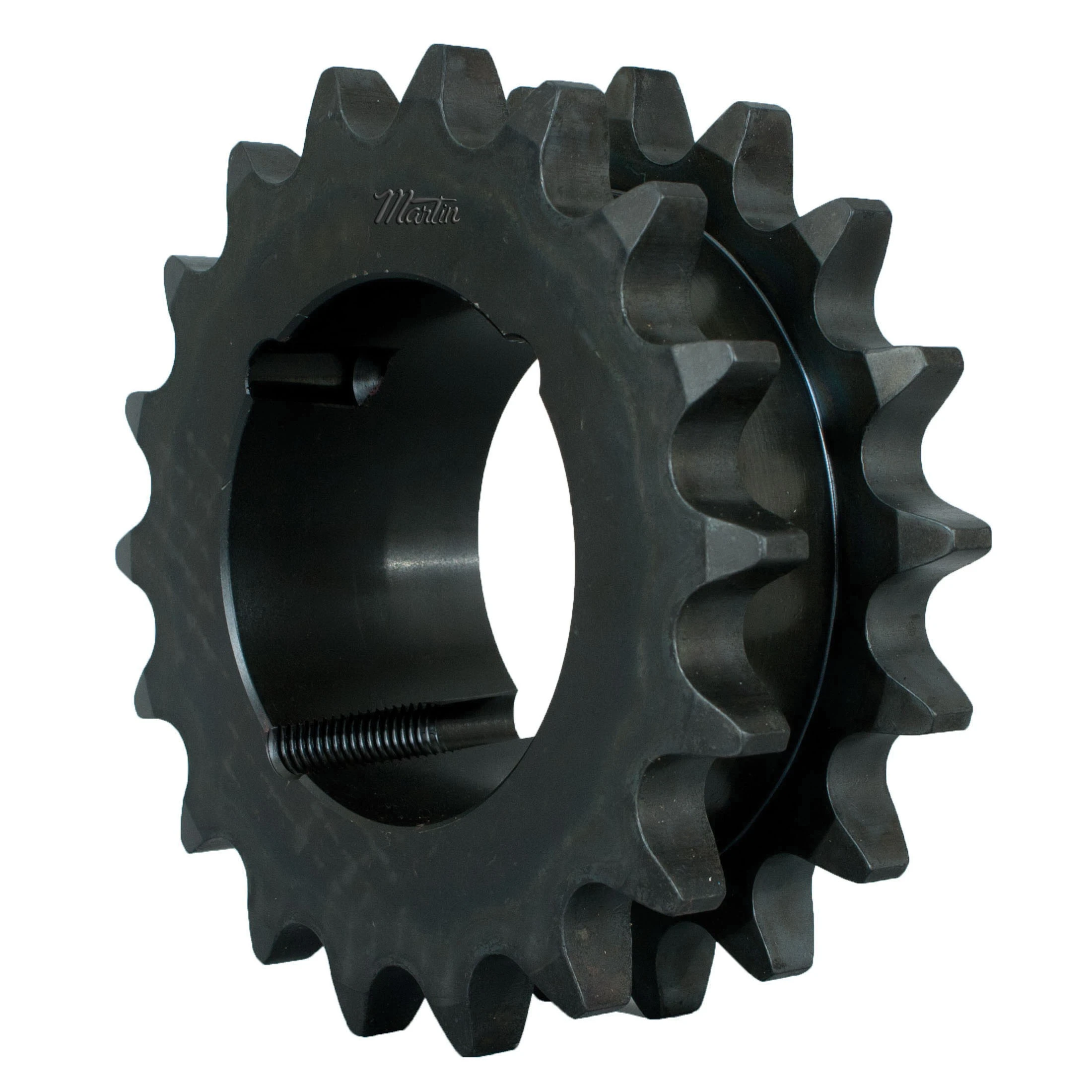

DS100ATB17H | 6.8027" | 17 | 2 11/16" | 5.406" | 0.938" to 3" | #100 | 7.437" | 7.437" | €662.02 | |
 |

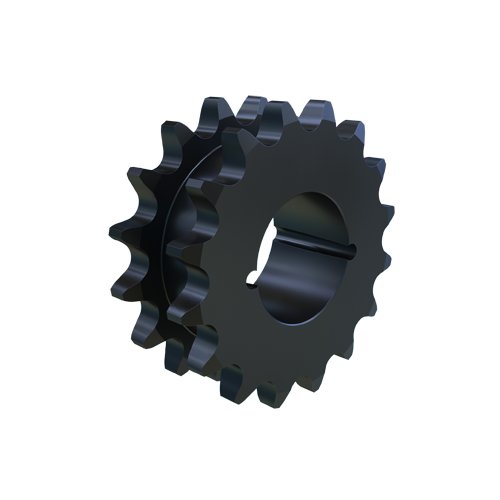

DS100ATB16H | 6.4073" | 16 | 2.688" | 5" | 1/2" to 20 1/2" | 100 | 7.034" | 7.034" | €616.67 | |
 |

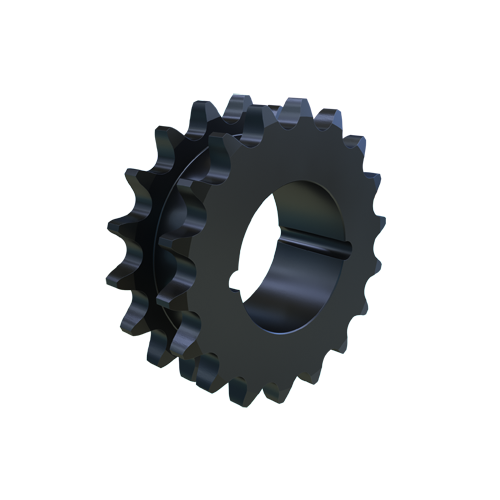

DS100ATB18H | 7.199" | 18 | 2.688" | 5.797" | 0.938" to 3" | 100 | 7.839" | 7.839" | €686.07 | |
|
DS100ATB15H | 6.0122" | 15 | 2.688" | 4.594" | 1/2" to 2 1/2" | #100 | 6.631" | 6.631" | €677.18 | |
|
DS100ATB20H | 7.9906" | 20 | 2.688" | 6.606" | 0.938" to 3" | #100 | 8.642" | 8.642" | €727.34 | |
 |

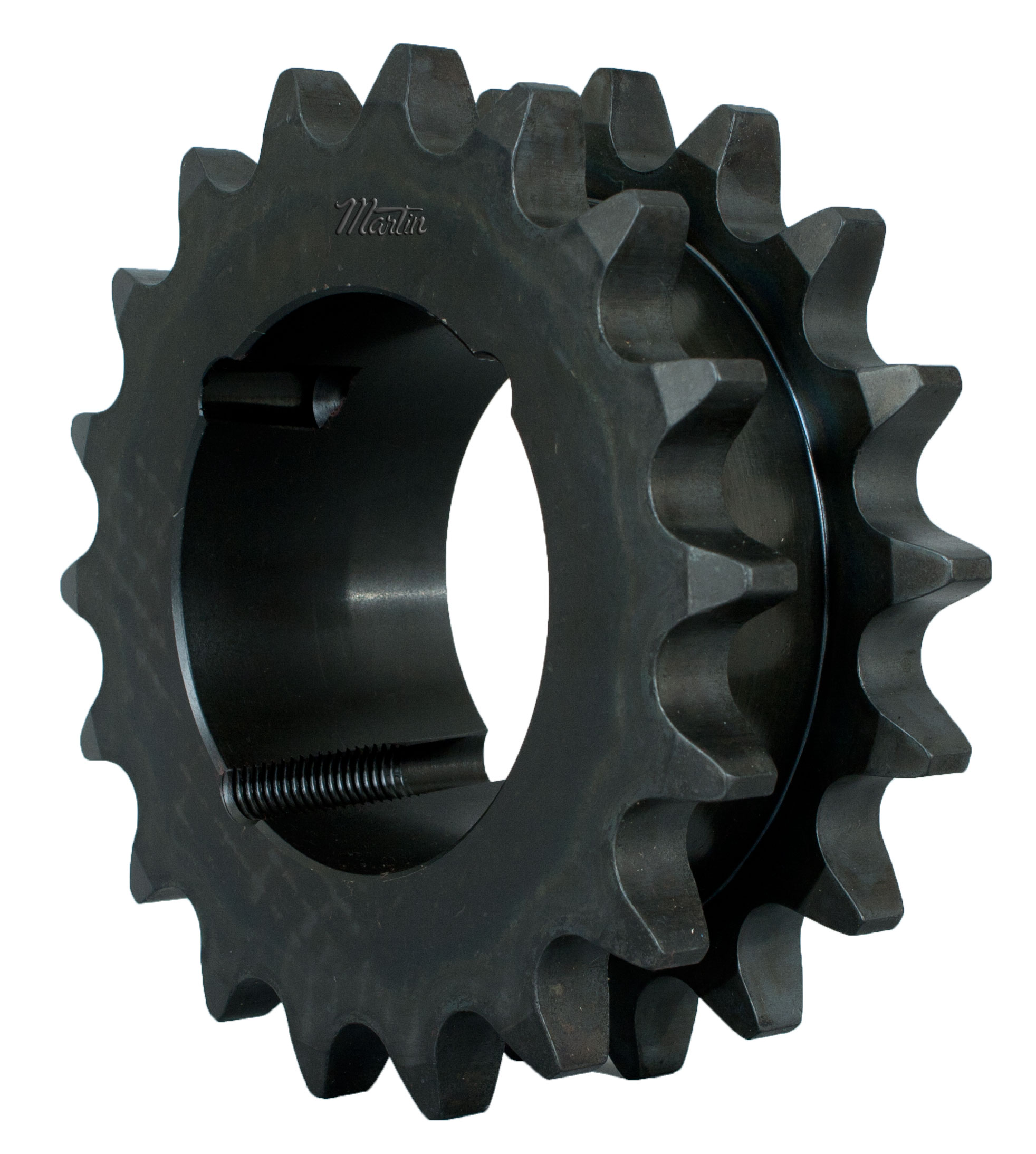

DS100ATB21H | 8.387" | 21 | 2.688" | 7" | 0.938" to 3" | 100 | 9.043" | 9.043" | €740.59 |
