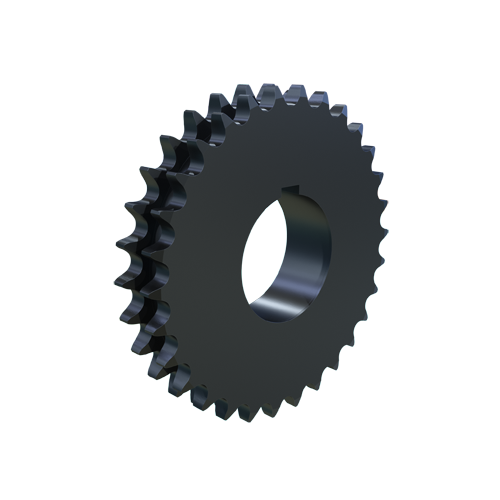

MARTIN SPROCKET D80R30 Roller Chain Sprocket, 80 Chain, Bushed MST, 30 Teeth, 9.567 Inch Pitch Dia., Steel
Get it by Wednesday, Jul 8
€589.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | R1 |
| Bushing Size | R1 |
| Bushing Type | Type R1 Split Taper |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | 80 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Dia. | 5 1/2" |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Key Way Size | 3/4" |
| Keyway Width | 3/4" , 3/4" W |
| Length Through Bore | 2 7/8" |
| Length Thru Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 30 |
| Outside Dia. | 10.114" |
| Pitch | 1" |
| Pitch Dia. | 9.5668" , 9.567" |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 10.114" |
| Storage Dimension Width | 10.114" |
| Type | MST R1 Bushed Solid Type 12 |
Shipping Info:
| Ship weight (kg) | 11.68 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 25.68 |
| Ship width (cm) | 25.68 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Keyway Width | Length Through Bore | Bushing Type | Hub Dia. | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D80R26 | 1 1/8" to 3 3/4" | 8.2962" | 8.836" | 3/4" | 2" | MST R1 | 5 1/2" | 80 | €518.42 | |
 |
D80R27 | 1 1/8" to 3 3/4" | 8.6138" | 9.156" | 3/4" | 2" | MST R1 | 5 1/2" | 80 | €531.29 | |
 |
D80R36 | 1 1/8" to 3 3/4" | 11.474" | 12.03" | 3/4" | 2 7/8" | Type R1 Split Taper | 5 1/2" | 80 | €889.09 | |
 |
D80R42 | 1 1/8" to 3 3/4" | 13.3815" | 13.944" | 3/4" | 2" | MST R1 | 5 1/2" | 80 | €980.76 | |
|
D80R45 | 1 1/8" to 3 3/4" | 14.3356" | 14.901" | 3/4" | 2" | MST R1 | 5 1/2" | 80 | €1,084.77 | |
|
D80R48 | 1 3/8" to 3 3/8" | 15.2898" | 15.857" | 3/4" | 4" | MST R2 | 5 1/2" | 80 | €1,142.96 | |
|
D80R54 | 1 3/8" to 3 3/8" | 17.1984" | 17.769" | 3/4" | 4" | MST R2 | 5 1/2" | 80 | €1,537.18 |
