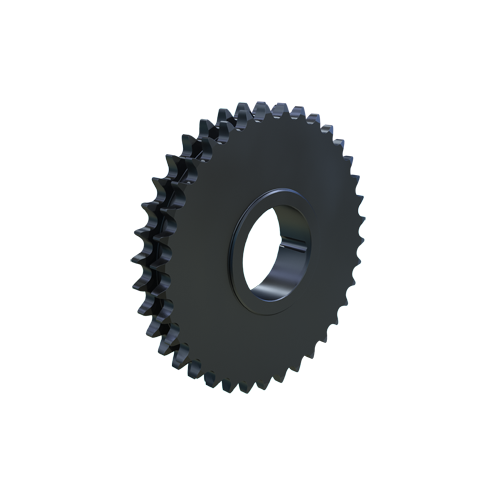

MARTIN SPROCKET D80CTB36 Sprocket, Taper, 80 Chain, 36 Teeth, 11.474 Inch Pitch Dia., 12.030 Inch O.D., Steel
12.030"
Get it by Friday, Aug 21
€688.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 3020 |
| Bushing Type | 3020 Taper Lock |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | 80-2 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | C |
| Hub Dia. | 5 1/4" |
| Hub Outside Dia. | 5 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2" |
| Length Thru Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3" |
| Min. Bore Size | 15/16" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 36 |
| Outside Dia. | 12.03" |
| Pitch | 1" |
| Pitch Dia. | 11.4737" , 11.474" |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 12.03" |
| Storage Dimension Width | 12.03" |
| Type | Double Strand TB Bushed Solid Type C |
Shipping Info:
| Ship weight (kg) | 17.87 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 30.56 |
| Ship width (cm) | 30.56 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Chain Size | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Min. Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D80ATB13H | 4.179" | 13 | 1.704" | #80 | 4.657" | 4.657" | 1.7" | 1/2" | €271.78 | |
 |
D80ATB14H | 4.494" | 14 | 1 1/4" | 80-2 | 4.981" | 4.981" | 1.7" | 1/2" | €274.71 | |
 |
D80ATB15H | 4.81" | 15 | 1 1/4" | 80-2 | 5.305" | 5.305" | 1.7" | 1/2" | €298.31 | |
 |
D80ATB16H | 5.126" | 16 | 1.704" | 80-2 | 5.627" | 5.627" | 1.7" | 1/2" | €312.89 | |
|
D80ATB17H | 5.442" | 17 | 1.704" | 80-2 | 5.95" | 5.95" | 1.7" | 1/2" | €329.19 | |
|
D80ATB18H | 5.759" | 18 | 1.704" | 80-2 | 6.271" | 6.271" | 1.7" | 1/2" | €345.26 | |
 |
D80BTB19H | 6.076" | 19 | 2" | 80-2 | 6.593" | 6.593" | 2" | 15/16" | €360.36 |
