MARTIN SPROCKET D80B23H Roller Chain Sprocket, 80 Chain, Stock Bore, 23 Teeth, 7.344 Inch Pitch Dia., Steel
Get it by Tuesday, Sep 1
€437.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1" to 3 5/16" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | #80 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 5" |
| Hub Outside Dia. | 5" |
| Individually Packaged | No |
| Length Through Bore | 2 3/4" |
| Length Thru Bore | 2 3/4" |
| Material | Steel |
| Max. Bore Size | 3 5/16" |
| Min. Bore Size | 1" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 23 |
| Pitch | 1" |
| Pitch Dia. | 7.3439" , 7.344" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 2 3/4" |
| Storage Dimension Length | 7.876" |
| Storage Dimension Width | 7.876" |
| Type | Type B Double Strand Solid Reboreable |
Shipping Info:
| Ship weight (kg) | 10.26 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 20.02 |
| Ship width (cm) | 20.02 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

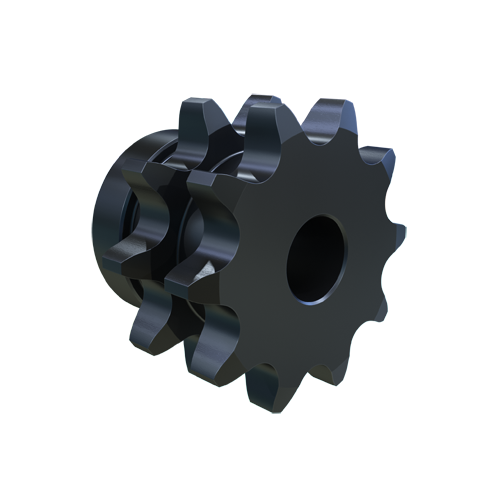

| D80B10H | 3.236" | 10 | 2 3/4" | 2.563" | 1" | 80-2 | 3.678" | 3.678" | €204.14 | |
| D80B11H | 3.55" | 11 | 2 1/2" | 2 1/2" | 1" | 80-2 | 4.006" | 4.006" | €205.94 | |
| D80B12H | 3.864" | 12 | 2 1/2" | 2.83" | 1" | 80-2 | 4.332" | 4.332" | €218.28 | |
| D80B13H | 4.179" | 13 | 2 1/2" | 3.15" | 1" | 80-2 | 4.657" | 4.657" | €235.27 | |
| D80B14H | 4.494" | 14 | 2 1/2" | 3.47" | 1" | 80-2 | 4.981" | 4.981" | €247.10 | |
| D80B15H | 4.81" | 15 | 2 1/2" | 3.79" | 1" | 80-2 | 5.305" | 5.305" | €267.45 | |
| D80B16H | 5.126" | 16 | 2 3/4" | 4" | 1" | 80-2 | 5.627" | 5.627" | €249.98 |
