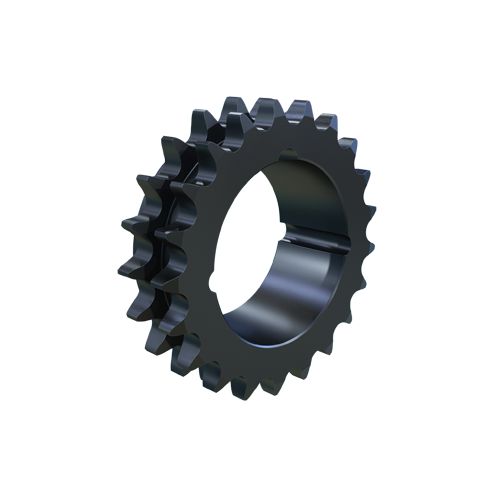

MARTIN SPROCKET D60BTB21H Roller Chain Sprocket, 60 Chain, Bushed TB, 21 Teeth, 5.032 Inch Pitch Dia., Steel
Item: AJ9BXFModel: D60BTB21H
7 In Stock
Ships within 2 days via
€218.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 2517 |
| Bushing Type | 2517 Taper Lock |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | 60-2 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 4.188" |
| Hub Outside Dia. | 4 3/16" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 21 |
| Outside Dia. | 5.426" |
| Pitch | 3/4" |
| Pitch Dia. | 5.032" , 5.0321" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 5.426" |
| Storage Dimension Width | 5.426" |
| Type | Double Strand TB Bushed Solid Type B |
Shipping Info:
| Ship weight (kg) | 1.69 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 13.79 |
| Ship width (cm) | 13.79 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Chain Size | Storage Dimension Length | Storage Dimension Width | Length Thru Bore | Min. Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D60BTB13H | 3.134" | 13 | 1 1/2" | 60-2 | 3.493" | 3.493" | 1 1/2" | 1/2" | €174.95 | |
 |
D60BTB14H | 3.371" | 14 | 1 1/2" | 60-2 | 3.736" | 3.736" | 1 1/2" | 1/2" | €179.56 | |
 |
D60BTB15H | 3.607" | 15 | 1 1/2" | 60-2 | 3.978" | 3.978" | 1 1/2" | 1/2" | €184.19 | |
 |
D60BTB16H | 3.844" | 16 | 1 1/2" | 60-2 | 4.221" | 4.221" | 1 1/2" | 1/2" | €192.48 | |
 |
D60BTB17H | 4.082" | 17 | 1 1/2" | 60-2 | 4.462" | 4.462" | 1 1/2" | 1/2" | €196.83 | |
 |
D60ATB18H | 4.319" | 18 | 1 1/4" | 60-2 | 4.703" | 4.703" | 1.3355" | 1/2" | €200.99 | |
 |
D60ATB19H | 4.557" | 19 | 1 1/4" | 60-2 | 4.945" | 4.945" | 1.3355" | 1/2" | €202.93 |
