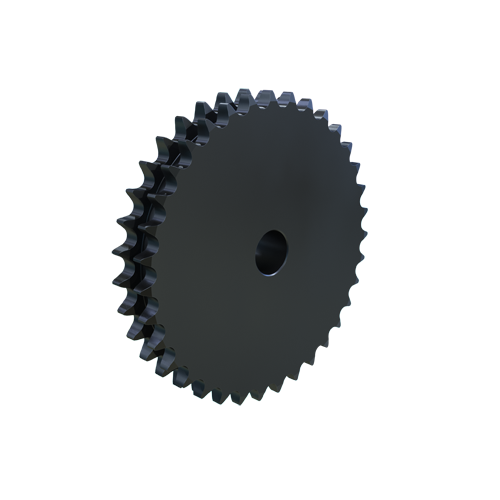

MARTIN SPROCKET D60B35 Roller Chain Sprocket, 60 Chain, Stock Bore, 35 Teeth, 8.367 Inch Pitch Dia., Steel
Get it by Thursday, Dec 18
€314.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 1/4" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Diameter | 4 1/2" |
| Hub Outside Dia. | 4 1/2" |
| Individually Packaged | No |
| Length Through Bore | 2 3/8" |
| Length Thru Bore | 2 3/8" |
| Material | Steel |
| Max. Bore Size | 3" |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 35 |
| Outside Dia. | 8.783" |
| Pitch | 3/4" |
| Pitch Dia. | 8.3669" |
| Pitch Diameter | 8.367" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 2 3/8" |
| Storage Dimension Length | 8.783" |
| Storage Dimension Width | 8.783" |
Shipping Info:
| Ship weight (kg) | 10.22 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 22.3 |
| Ship width (cm) | 22.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D60B11H | 11 | 2.662" | 3.004" | 2 1/8" | 60 | 3/4" | 3/4" | Finished Bore | €125.26 | |
 |
D60B12H | 12 | 2.8978" | 3.249" | 2 1/8" | 60 | 3/4" | 3/4" | Finished Bore | €122.51 | |
 |
D60B13H | 13 | 3.1339" | 3.493" | 2 1/8" | 60 | 3/4" | 3/4" | Finished Bore | €132.83 | |
 |
D60B14H | 14 | 3.3705" | 3.736" | 2 1/8" | 60 | 3/4" | 3/4" | Finished Bore | €139.77 | |
 |
D60B16H | 16 | 3.8444" | 4.221" | 2 1/8" | 60 | 3/4" | 3/4" | Finished Bore | €155.73 | |
 |
D60B17H | 17 | 4.0816" | 4.462" | 2 1/8" | 60 | 3/4" | 3/4" | Finished Bore | €164.22 | |
 |
D60B18H | 18 | 4.3191" | 4.703" | 2 1/8" | 60 | 3/4" | 3/4" | Finished Bore | €171.17 |
