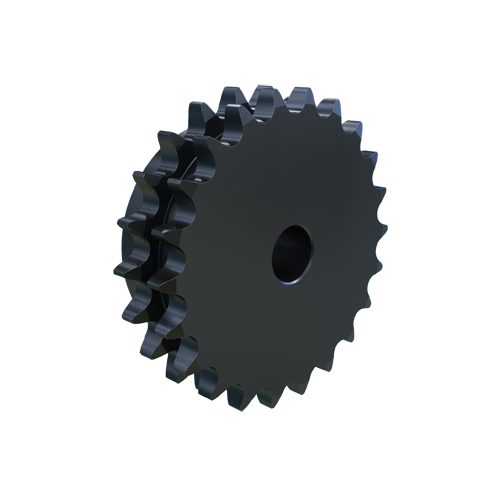

MARTIN SPROCKET D60B22H Sprocket, Stock Bore, 60 Chain, 22 Teeth, 5.270 Inch Pitch Dia., 5.666 Inch O.D., Steel
Item: AJ9BKKModel: D60B22H
7 In Stock
Ships within 2 days via
€208.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | 60-2 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2 1/8" |
| Length Thru Bore | 2.14" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 22 |
| Outside Dia. | 5.666" |
| Pitch | 3/4" |
| Pitch Dia. | 5.27" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 2 1/8" |
| Storage Dimension Length | 5.666" |
| Storage Dimension Width | 5.666" |
| Type | Double Strand Solid Stock Bore Type B |
Shipping Info:
| Ship weight (kg) | 4.36 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 14.4 |
| Ship width (cm) | 14.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D60B11H | 2.662" | 11 | 2 1/8" | 1.813" | 1" | 60-2 | 3.004" | 3.004" | €125.26 | |
 |
D60B12H | 2.898" | 12 | 2 1/8" | 2 1/8" | 1" | 60-2 | 3.249" | 3.249" | €122.51 | |
 |
D60B13H | 3.134" | 13 | 2 1/8" | 2 1/4" | 1" | 60-2 | 3.493" | 3.493" | €132.83 | |
 |
D60B14H | 3.371" | 14 | 2 1/8" | 2 1/2" | 1" | 60-2 | 3.736" | 3.736" | €139.77 | |
 |
D60B16H | 3.844" | 16 | 2 1/8" | 3" | 1" | 60-2 | 4.221" | 4.221" | €155.73 | |
 |
D60B17H | 4.082" | 17 | 2 1/8" | 3 1/4" | 1" | 60-2 | 4.462" | 4.462" | €164.22 | |
 |
D60B18H | 4.319" | 18 | 2 1/8" | 3 1/2" | 1" | 60-2 | 4.703" | 4.703" | €171.17 |
