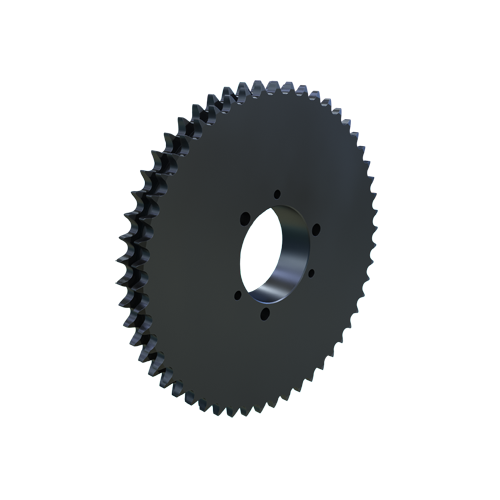

MARTIN SPROCKET D50SF52 Sprocket, QD, 50 Chain, 52 Teeth, 10.351 Inch Pitch Dia., 10.707 Inch O.D., Steel
Get it by Tuesday, Aug 25
€411.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.5" to 2.938" |
| Bore Type | Bushed |
| Bushing Part Number | SF |
| Bushing Size | SF |
| Bushing Type | QD SF |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | #50 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Dia. | 4 3/4" |
| Hub Outside Dia. | 4 3/4" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 52 |
| Outside Dia. | 10.707" |
| Pitch | 5/8" |
| Pitch Dia. | 10.351" , 10.3514" |
| Single Strand Tooth Thickness | 0.332" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 10.707" |
| Storage Dimension Width | 10.707" |
| Type | Type C Double Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 9.59 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 27.2 |
| Ship width (cm) | 27.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Hub Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Hub Outside Dia. | Bushing Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

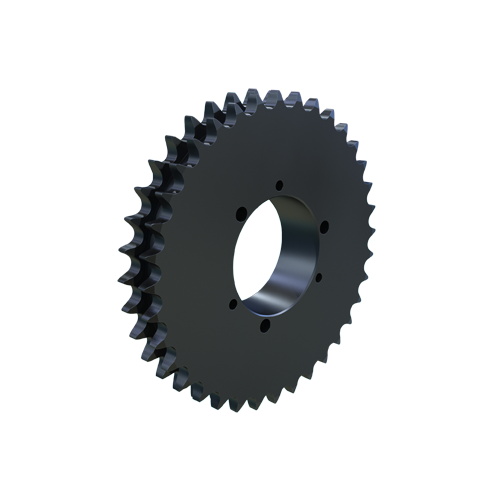

D50SK36 | 7.171" | 36 | 3 3/4" | 50-2 | 7.519" | 7.519" | 4" | SK | €324.34 | |
 |
D50SK42 | 8.3634" | 42 | 3 3/4" | #50 | 8.715" | 8.715" | 4" | SK | €298.98 | |
 |

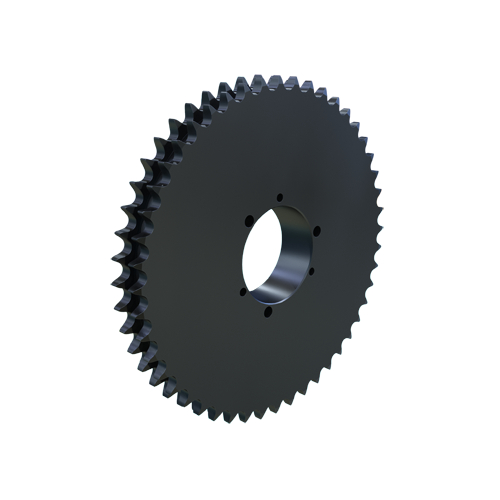

D50SK48 | 9.556" | 48 | 3 3/4" | 50-2 | 9.911" | 9.911" | 4" | SK | €352.50 | |
 |
D50SF54 | 10.749" | 54 | 4 3/4" | #50 | 11.106" | 11.106" | 4 3/4" | SF | €438.08 | |
|
D50SF60 | 11.942" | 60 | 4 3/4" | #50 | 12.301" | 12.301" | 4 3/4" | SF | €509.58 | |
 |
D50SF68 | 13.533" | 68 | 4 3/4" | #50 | 13.894" | 13.894" | 4 3/4" | SF | €583.41 | |
|
D50SF72 | 14.329" | 72 | 4 3/4" | #50 | 14.69" | 14.69" | 4 3/4" | SF | €657.02 |
