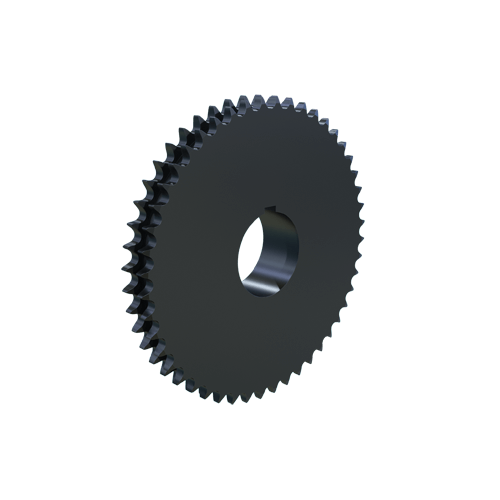

MARTIN SPROCKET D50Q48H Sprocket, MST, 50 Chain, 48 Teeth, 9.556 Inch Pitch Dia., 9.911 Inch O.D., Steel
9.911"
Get it by Wednesday, Aug 26
€453.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.75" to 2.688" |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Bushing Type | MST Q1 |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | #50 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 4.235" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Key Way Size | 1/2" |
| Keyway Width | 1/2" |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 48 |
| Outside Dia. | 9.911" |
| Pitch | 5/8" |
| Pitch Dia. | 9.5561" |
| Single Strand Tooth Thickness | 0.332" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 9.911" |
| Storage Dimension Width | 9.911" |
| Type | Type 12 Double Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 8.68 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 25.17 |
| Ship width (cm) | 25.17 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D50Q54 | 10.749" | 54 | 1 3/4" | 4.235" | 0.75" to 2.688" | #50 | 11.106" | 11.106" | €581.10 | |
|
D50Q60 | 11.9421" | 60 | 1 3/4" | 4.235" | 0.75" to 2.688" | #50 | 12.301" | 12.301" | €672.28 | |
 |
D50Q72 | 14.3285" | 72 | 1 3/4" | 4.235" | 0.75" to 2.688" | #50 | 14.69" | 14.69" | €780.08 | |
 |
D50Q32H | 6.3764" | 32 | 1 3/4" | 4.235" | 0.75" to 2.688" | #50 | 6.721" | 6.721" | €376.50 | |
|
D50Q36H | 7.1711" | 36 | 1 3/4" | 4.235" | 0.75" to 2.688" | #50 | 7.519" | 7.519" | €418.13 | |
 |
D50Q40H | 7.966" | 40 | 2 1/2" | 4.235" | 0.75" to 2.688" | 50 | 8.316" | 8.316" | €376.20 | |
 |
D50H14H | 2.809" | 14 | 1 1/4" | 2 1/2" | 3/8" to 10 1/2" | 50 | 3.113" | 3.113" | €221.44 |
