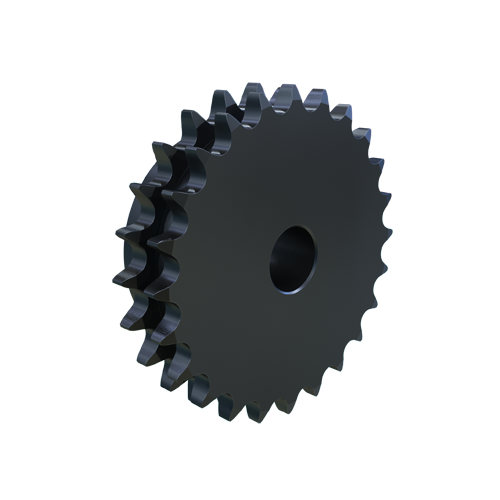

MARTIN SPROCKET D50B24H Roller Chain Sprocket, 50 Chain, Stock Bore, 24 Teeth, 4.788 Inch Pitch Dia., Steel
Item: AJ9BHTModel: D50B24H
7 In Stock
Ships within 2 days via
€174.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1" |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 3 7/8" |
| Hub Outside Dia. | 3 5/8" |
| Individually Packaged | No |
| Length Through Bore | 1 7/8" |
| Length Thru Bore | 1 7/8" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1" |
| No. Of Teeth | 24 |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 24 |
| Outside Dia. | 5.122" |
| Pitch | 5/8" |
| Pitch Dia. | 4.7883" |
| Pitch Diameter | 4.788" |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.332" |
| Storage Dimension Height | 1 7/8" |
| Storage Dimension Length | 5.122" |
| Storage Dimension Width | 5.122" |
Shipping Info:
| Ship weight (kg) | 2.96 |
| Ship height (cm) | 4.78 |
| Ship length (cm) | 13 |
| Ship width (cm) | 13 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D50B11H | 11 | 2.218" | 2.504" | 1 3/4" | 50 | 5/8" | 5/8" | Finished Bore | €126.13 | |
 |
D50B12H | 12 | 2.4148" | 2.708" | 1 3/4" | 50 | 5/8" | 5/8" | Finished Bore | €126.64 | |
 |
D50B13H | 13 | 2.6116" | 2.911" | 1 3/4" | 50 | 5/8" | 5/8" | Finished Bore | €129.99 | |
 |
D50B14H | 14 | 2.8087" | 3.113" | 1 3/4" | 50 | 5/8" | 5/8" | Finished Bore | €131.95 | |
 |
D50B15H | 15 | 3.0061" | 3.315" | 1 3/4" | 50 | 5/8" | 5/8" | Finished Bore | €132.83 | |
 |
D50B16H | 16 | 3.2036" | 3.517" | 1 3/4" | 50 | 5/8" | 5/8" | Finished Bore | €136.17 | |
 |
D50B17H | 17 | 3.4014" | 3.718" | 1 3/4" | 50 | 5/8" | 5/8" | Finished Bore | €139.77 |
