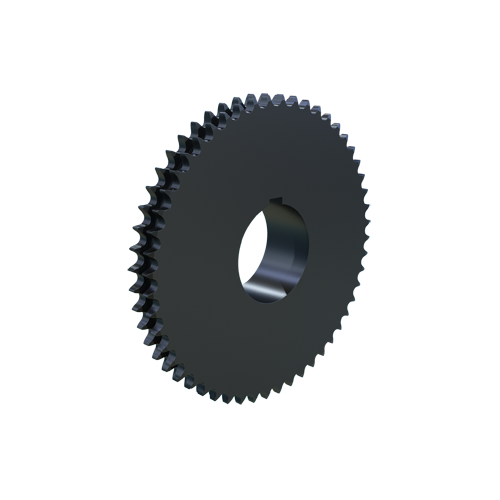

MARTIN SPROCKET D40Q52H Sprocket, MST, 40 Chain, 52 Teeth, 8.281 Inch Pitch Dia., 8.566 Inch O.D., Steel
8.566"
Get it by Tuesday, Jul 14
€355.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.75" to 2.688" |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Bushing Type | MST Q1 |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Key Way Size | 1/2" |
| Keyway Width | 1/2" |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 52 |
| Outside Dia. | 8.566" |
| Pitch | 1/2" |
| Pitch Dia. | 8.2811" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 8.566" |
| Storage Dimension Width | 8.566" |
| Type | Type 12 Double Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 5.6 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 21.77 |
| Ship width (cm) | 21.77 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | Bushing Type | Keyway Width | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D40Q72 | 0.75" to 2.688" | 11.4628" | 11.752" | 4 1/4" | 1 3/4" | MST Q1 | 1/2" | 40 | €487.49 | |
|
D40Q84 | 0.75" to 2.688" | 13.3721" | 13.663" | 4 1/4" | 1 3/4" | MST Q1 | 1/2" | 40 | €572.65 | |
 |
D40Q96 | 0.75" to 2.688" | 15.2816" | 15.573" | 4 1/4" | 1 3/4" | MST Q1 | 1/2" | 40 | €710.93 | |
 |
D40Q112 | 0.75" to 2.688" | 17.8277" | 18.121" | 4 1/4" | 1 3/4" | MST Q1 | 1/2" | 40 | €1,003.13 | |
|
D40Q68 | 0.75" to 2.688" | 10.8264" | 11.115" | 4 1/4" | 1 3/4" | MST Q1 | 1/2" | 40 | €427.99 | |
 |
D40H15H | 3/8" to 1 1/2" | 2.4049" | 2.652" | 2 1/2" | 1 1/2" | MST H | - | 40 | €175.66 | |
 |
D40H16H | 3/8" to 10 1/2" | 2.563" | 2.814" | 2 1/2" | 1 1/4" | Type H Split Taper | - | 40 | €177.08 |
